Unitate centrala de baza gama JA-100, cu comunicator GSM/GPRS integrat, Jablotron, JA-106K

JABLOTRON, JA100
1,519 Lei
JA-106K
+
Suna-ma!

Unitate centrala de baza gama JA-100, cu comunicator GSM/GPRS integrat, Jablotron JA-106K

  • Unitate centrala de baza gama JA-100 cu comunicator GSM/GPRS/LAN integrat
  • Echipata cu card de memorie de 1GB pentru memorarea evenimentelor, mesajelor vocale, imaginilor etc.
  • Ofera: pana la 120 zone wireless sau cablate
  • 300 coduri de utilizator
  • 15 partitii
  • 32 iesiri programabile
  • rapoarte prin SMS la 30 de numere
  • raport vocal pentru 5 utilizatori prin SMS
  • 4 setari ARC (Alarm Receiving Centre)
  • Include borne pentru modul radio JA-110R
  • comunicator PSTN JA-190X
  • modul de voce
  • 2 BUS independente adresabil pentru periferice ( elemente de detectie, informare, alarmare , actionare , etc )

The JA-106K offers

  • up to 120 wireless or BUS hardwired zones
  • up to 300 user codes
  • up to 15 sections
  • up to 32 programmable outputs
  • 20 independent calendars
  • the system reports to 30 users by SMS
  • 5 users have option of voice and SMS reporting
  • 4 ARC settings
  • 4 selectable reports to ARC

It has a built-in GSM/GPRS and LAN communicator on the board offering communication by voice, SMS or GPRS to end users or to ARC centers. It is equiped with a 1 GB memory card on the board for saving event reports, a voice menu and messages, storage of pictures and more.

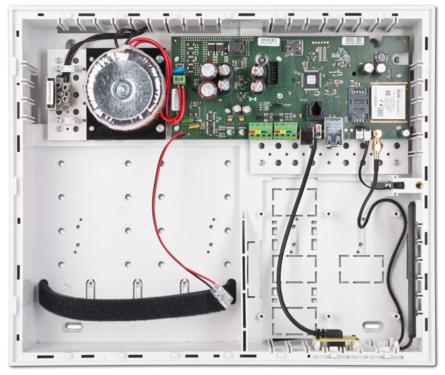

The main control unit includes terminals:

  • 2x independent BUS terminals
  • 1x terminal for VOICE module
  • 1x terminal for built-in radio module (JA-110R)
  • 1x terminal for PSTN communication module (JA-190X)
External power source 230 V / 50 Hz, max. 0.2 A, security class II
Backup-battery 12 V up to 7 - 18 Ah
Maximum recharge time 72 h
BUS power supply maximum continuous load 1.2A
Max permanent current for 12 hrs backup 1.2 A with 18Ah battery
Number of addresses (wireless or BUS): 120
LAN communicator Ethernet
Power supply type typ A (EN 50131-6)
GSM QUAD-BAND communicator 850/900/1800/1900MHz
JA-110R operating frequency 868 MHz ISM band
Event reports: cca 700 MB app. 7 million enhanced events including time and date
Security grade 2 according to EN 50131-1, EN 50131-6 and EN 50131-5-3 and CLC/TS 50131-3
Environment grade II. interior (-10 to +40°C), to EN 50131-1
Radio Approval ETSI EN 300220 (R module), ETSI EN 301 419-1, EN 301 511
EMC EN 50130-4, EN 55022, ETSI EN 301 489-7
Safety EN 60950-1
Operational conditions ERC REC 70-03
Caller ID (CLIP) ETSI EN 300 089
Disponibilitate:
3-5 zile

Sistem alarma

Tip alarma:
  • Cu fir
Capacitate:
  • 1-5 Partitii
  • 16+ Zone
Gama produse:
  • JA100

Nici o postare găsită

Posteaza recenzie

Manual utilizator JK-101K (JA-101K.pdf, 382 Kb) [Download]
