Centrala de alarma 5 zone, 5 partitii, INIM SmartLiving 515

Inim, Smartliving
Scrie o recenzie
  • Sistem de alarma antiefractie, profesional.

  • Module alarma wireless.
    Transmitere alarma GSM sau linie terestra

  • Solicita preconfigurare sistem de alarma.
  • Intreaba de oferta de pret UltraMaster

  • Tel. 0348 88 00 21

433 Lei
SmartLiving 515
+

Centrala de alarma 5 zone, 5 partitii, INIM SmartLiving 515

Centrală de alarmă de generatie noua cu 5 zone (10 zone cu dublare) extensibilă la 15 zone (30 zone cu dublare), 5 partiții intr-o carcasa metalica cu spatiu de acumulator de maxim 7Ah.

Este dimensionata pentru securizarea obiectivelor de dimensiuni medii si mici cum ar fi sistem de alarma pentru firma, sistem de alarma pentru depozite, sistem de alarma pentru birouri sau sistem de alarma pentru casa - vila avand si functii de tip "casa inteligenta" pentru automatizarea si monitorizarea unor procese.

Centrala de alarma Smart Living 515 poate fi accesorizata cu o vasta gama de module de extensie care sa acopere chiar si cele mai exigente pretentii: tastaura LCD, touchscreen, expandoare de zone, comunicator GSM, mesaje vocale, etc

Produsele INIM au revolutionat piata sistemelor de alarma cu un concept nou de "terminale" care ne permite configurarea dupa dorinta a terminalelor in intrare (zona simpla sau dubla) sau iesire programabila.

Tehnologia Easy4U ofera instalatorilor si utilizatorilor o interfata necomplicata si eficienta pe baza "scurtaturilor" de pe tastatura sau de pe cititorul de proximitate.

I-BUS este noua magistrala INIM capabila de a transmite la o viteză extrem de mare, de neegalat in acest segment de piata. I-BUS permite sistemului SmartLiving să crească în conformitate cu nevoile de instalare, magistrala de date acceptă cititori de proximitate, tastaturi cu display grafic, extensii de ieşire/intrare, despozitive wireless, apelatoare GSM şi sirene digitale. Sistemul SmartLiving este capabil de înscriere toate perifericele din magistrala în mod automat, astfel usurand şi mai mult procesul de configurare a sistemului.

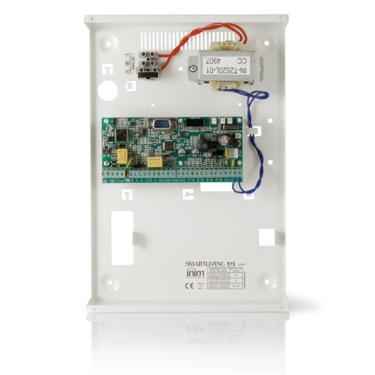

Placă de bază INIM SmartLiving 515 este echipată cu :

  • 5 terminale (5x2 zone),
  • 1 ieșire pe releu,
  • 2 ieșiri PGM,
  • comunicator telefonic digital,
  • port de comunicatie cu PC-ul RS232.

Specificatii tehnice centrala alarma INIM SmartLiving 515:

  • maxim 5 tastaturi JOY,
  • 10 module de extensie Flex5 (necesare pentru marirea zonelor de control si numarului de intrari/iesiri; fiecare modul Felx5 gestioneaza pana la 5 intrari/iesiri)
  • 10 cititoare de proximitate nBy,
  • 10 interfețe wireless Air2-BS100 (maxim 50 detectoare wireless și 100 telecomenzi).
  • 30 coduri utilizator,
  • 50 cartele de proximitate sau taguri,
  • memorie 500 evenimente.

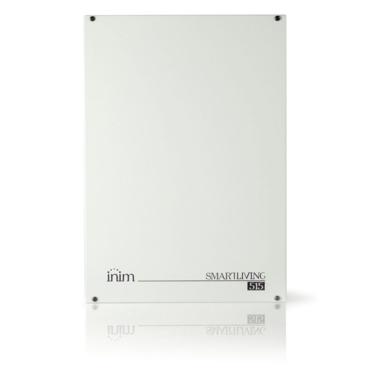

Include cutie metalică normală cu transformator și spațiu pentru acumulator de 7 Ah.



SmartLiving 515
Hardware features

Number of terminals supported by the system
Number of terminals available for mapping and relocation

15
15

Terminals on motherboard (configurable as inputs or outputs) 5 (0)

Programmable relay on motherboard

1

Number of programmable open-collector outputs on motherboard

2 (150mA)

Number of partitions available

5

elay and power-diffusion board (accessory item)

-

IP Connectivity management (using SmartLAN)

Yes
Flex5 expansion board housing -
GSM device housing Yes

Power supply

1,2A

RS232 Port

Yes
Power charge monitored by temperature probe (ProbeTh accessory item) Yes
Battery test circuit Yes

Control-panel fi rmware upgrading capability

Yes
Peripheral-fi rmware upgrading capability via control panel Yes
Enclosure Metal
Battery housing 7Ah
Dimensions (HxWxD) 305x220x80
Weight without battery 2,5 kg
I-BUS devices
I-BUS peripherals enrolled automatically Yes

Number of Joy and nCode/G keypads supported

5
Number of nBy readers supported 10

Number of Flex5 5-terminal Expansions supported

10

Ivy-B Sounderflasher

10

Number of Air2 Wireless Transceivers supported

10

Nexus GSM/GPRS module 1
Air2 wireless devices
MC100 Magnetic contacts and/or IR100 PIRs 15
Wireless keyfobs (KF100) 50
Authentication

Installer access codes

2

Number of user-access codes (can be controlled by timers)

30

Number of nKey Tags or nCards card (can be controlled by timers)

50
Telephone communications

Telephone contact numbers

15
Telephone line check Yes
Automatic voice dialer (SmartLogos30M option, refer to Voice functions) Yes
Integrated automatic digital-dialer Yes
Integrated remote programming modem Yes
Input terminals
Auto-learning of zone-balance Yes
Zone doubling (each input manages 2 zones) Yes
Input terminals for shock and rollerblind sensors on control panel 2
Number of input terminals for shock and rollerblind sensors on keypad

2 on Joy,

1 on Concept

Number of input terminals for shock and rollerblind sensors on expansion boards confi gurable as inputs or outputs 4
Programmable input-zone thresholds Yes
Input threshold trimmer Yes
Voice functions on motherboard
Keypad-to-keypad Intercom (Joy/MAX keypads) Yes
Remote Listen-in function with choice of location (Joy/MAX keypads) Yes
Voice functions on SmartLogos30M board (accessory item)
Automatic-Answephone function (customizable) Yes

Voice-memo slot (one message per Joy/MAX keypad)

Yes

Local voice-prompt menu (customizable)

Yes
Voice-prompt menu over-the-phone (customizable) Yes

Voice notifier on local keypad (Joy/MAX)

Yes

Automatic Voice-dialer

Yes

Message recording at Joy/MAX keypads

Yes

Message recording from PC (using microphone or .wav)

Yes
Message recording from PC (using text-to-speech function) Yes
Nexus GSM functions (version 4.00)
Voice dialer over GSM Network Yes

Sends pre-edited and customizable SMS text messages for each event

Yes

Programmable priority-management of PSTN and GSM channels for each event

Yes
Activates control panel shortcuts via SMS text message or CallerID Yes

Answerphone and DTMF command management functions

Yes

Automatic Balance check

Yes

Voice, digital and SMS message Emergency communication

Yes
Other features

Week-to-week timers (each with 5 'exception' periods) for automatic arming and enablement

10
Thermostats with manual, dayly, weekly and antifreeze management (from 3.00 version) 5
Programmable timer-controlled events (4.00 version only) 10
Automatic daylight saving time Yes
Programmable scenarios (arming configurations) 30
Shortcuts (one-stroke actions) 37

Programmable icons

50
Number of tigger events 430

Rolling event buffer (250 for versions before 3.00)

500
Events log filter Yes

Saves compact event details

Yes

Manages shortcuts on function keys (12) and on numeric keys (10) on Joy keypads

Yes

Shortcuts on LEDs (4) on nBy Readers

Yes

Manages Events-Actions matrix

Yes
Generates "start of" event-related actions Yes
Generates "end of" event-related actions Yes
Programming software runs under Windows Yes

Producator INIM Italia



Disponibilitate:
In stoc

Sistem alarma

Tip alarma:
  • Cu fir
Capacitate:
  • 1-5 Partitii
  • 16+ Zone
Gama produse:
  • Smartliving

Manual Smart Living 515 (SmartLiving_manual_de_instalare.pdf, 15,878 Kb) [Download]

Schema Bloc INIM (Schema_bloc_Inim.pdf, 812 Kb) [Download]

Software de programare, instalare INIM SmatLiving <DOWNLOAD>

Software de programare, instalare INIM Ability <DOWNLOAD>
