Speed Dome IP, 2 MP, IR 150m, Hikvision DS-2DE5225IW-AE

Hikvision, Supraveghere IP
1,736 Lei
DS-2DE5225IW-AE
+
Suna-ma!

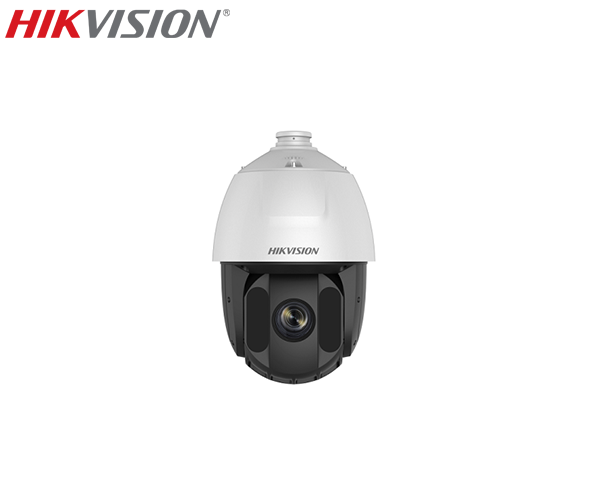

Speed Dome IP, 2 MP, IR 150m, Hikvision DS-2DE5225IW-AE

Hikvision DS-2DE5225IW-AE este o camera de supraveghere Speed Dome IP de la Hikvision. Aceasta camera este echipata cu un senzor de 2 MP progressive CMOS ce permite o rezolutie de 2 Megapixeli (1920 x 1080), iar lentila de  4.8 mm - 120 mm permite un unghi vizual orizontal de 57.6° - 2.5°. Poate oferi imagini pe timpul noptii sau in conditii de iluminare scazuta, de la o distanta de pana la 1050 metri. Dispune de zoom optic 25X si de zoom digital 16X. Are un grad mare de protectie impotriva intemperiilor IP66. Temperatura de functionare este cuprinsa intre - 30°C si + 65°C.

Caracteristici principale Speed Dome IP Hikvision DS-2DE5225IW-AE:

  • Rezolutie video: 1920 x 1080 pixeli;
  • Lentila: 4.8 mm - 120 mm;
  • Cadre/secunda: 30 FPS;
  • Zoom optic: 25X;
  • Zoom digital: 16X;
  • Unghi vizualizare orizontal: 57.6° - 2.5°;
  • Sensibilitate: 0.005 LUX;
  • Numar presetari: 300;
  • Numar scenarii patrulare: 8 (32 presatari pentru fiecare scenariu);
  • Viteza PAN: 0.1°/s - 120°/s;
  • Viteza TILT: 0.1°/s - 80°/s;
  • Capacitate de stocare: card microSD de pana la 256 GB;
  • Port: 1x RJ45 10 Mbps/100 Mbps Ethernet, Hi-PoE;
  • Temperatura de functionare: -30°C pana la +65°C;
  • Alimentare: 24 Vac, Hi-PoE;
  • Consum maxim: Max.: 30 W, include max. 10W for IR;
  • Dimensiuni: Φ 208 mm × 345 mm
  • Greutate: 3.3 kg.

Specificatii principale Speed Dome IP Hikvision DS-2DE5225IW-AE:

Camera
Image Sensor:   1/2.8" progressive scan CMOS
Effective Pixels:   1920(H)x1080(V)
Minimum Illumination:   Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001Lux @(F1.6, AGC ON)
0 Lux with IR
White Balance:   Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Image Enhancement:   HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
WDR:   120dB
Shutter Time:   50Hz: 1/1 s to 1/30,000 s
60Hz: 1/1 s to 1/30,000 s
Day& Night:   IR Cut Filter
Digital Zoom:   16X
Privacy Masking:   24 programmable privacy masks
Auto Focus:   Auto / Semi-automatic / Manual
Lens
Focal Length:   4.8 mm to 120 mm, 25× optical zoom
Zoom Speed:   Approx. 3.6 s (optical lens, wide-tele)
Field of View:   Horizontal field of view: 57.6° to 2.5° (Wide-Tele)
Vertical field of view: 34.4° to 1.4° (Wide-Tele)
Diagonal field of view: 64.5° to 2.9° (Wide-Tele)
Working Distance:   10 mm to 1500 mm (wide-tele)
Aperture Range:   F1.6 to F3.5
Pan & Tilt
Pan Range:   360°endless
Pan Speed:   Configurable, from 0.1°/s to 120°/s,
Preset speed: 120°/s

Tilt Range:   -15°-90° (Auto Flip )
Tilt Speed:   Configurable, from 0.1°/s to 80°/s,
Preset speed: 80°/s
Proportional Zoom:   DA
Number of Preset:   300
Patrol Scan:   8 patrols, up to 32 presets for each patrol
Pattern Scan:   4 pattern scans, record time over 10 minutes for each scan
Power-off Memory:   DA
Park Action:   Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display:   DA
Infrared
IR distance:   150m
Smart IR:   Da
Network
Network Interface:   1 RJ45 10 M/100 M Ethernet, Hi-PoE
Max.Image Resolution:   1920×1080
Main Stream:   50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1280 × 960, 1280 × 720)
Sub Stream:   50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream:   50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression:   Main Stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
ROI:   Main stream, sub-stream, and third stream respectively support four fixed areas
Protocols:   IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View:   Up to 20 channels
Network Storage:   Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
User/Host:   Up to 32 users
3 levels: Administrator, Operator and User
Security Measures:   User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
General
Language (Web Browser Access ):   32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power:   24 VAC and Hi-PoE Max.: 30 W, including max. 10W for IR
Working Temperature/Humidity:   -30 ℃-65℃(-22℉-149℉)
90% or less
Protection Level:   IP66 Standard, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material:   ADC 12, PC, PC+10% GF
Dimensions:   Φ 208 mm × 345 mm (Φ 8.19" × 13.58")
Weight (approx.):   Approx. 3.3 kg (7.28 lb)
Disponibilitate:
3-5 zile

Camere de supraveghere

Tip supraveghere video :
  • Supraveghere IP
Rezolutie :
  • 1920 x 1080 (1080P)
Infrarosu ( IR ) :
  • 150 m
Lentila :
  • PTZ
Caracteristici speciale:
  • Hi-POE

Nici o postare găsită

Posteaza recenzie

Fisa tehnica speed dome IP Hikvision DS-2DE5225IW-AE (Datasheet_of_DS-2DE5225IW-AE_20171212.pdf, 930 Kb) [Download]
