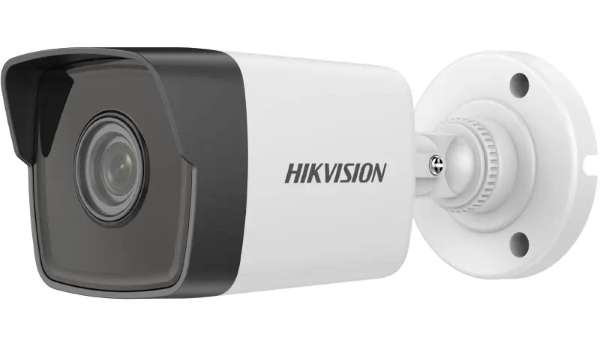

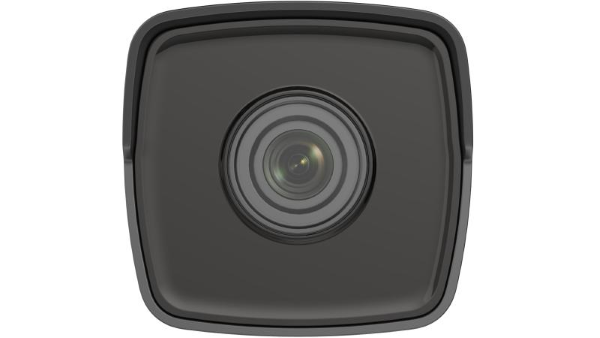

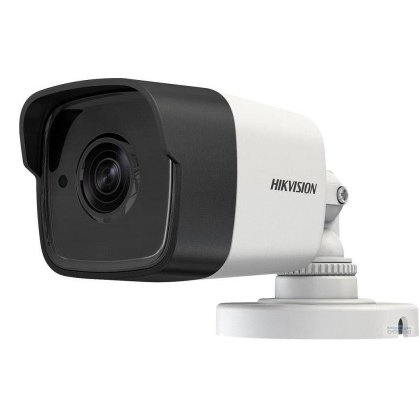

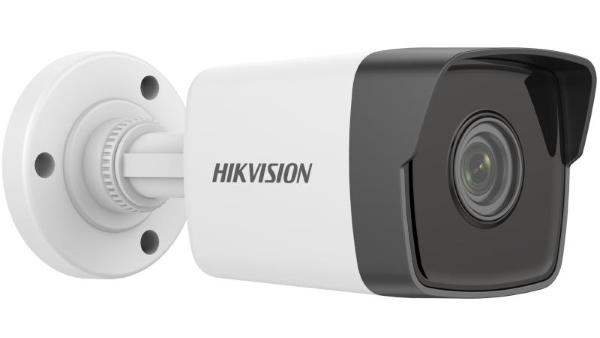

Camera supraveghere video IP Hikvision DS-2CD1023G0E-I, 2MP, IR 30m

Hikvision, Supraveghere IP
Scrie o recenzie
202 Lei
DS-2CD1023G0E-I-2.8mm
+

Camera supraveghere video IP, 2 MP, IR 20m, Hikvision DS-2CD1023G0E-I

HIKVISION DS-2CD1023G0E-I este o camera de supraveghere video digitala IP, ce are o rezolutie maxima de 2 Megapixeli .Camera supraveghere HIKVISION DS-2CD1023G0E-I poate oferi imagini pe timpul noptii sau in conditii de iluminare scazuta, de la o distanta de pana la 30 metri, DS-2CD1023G0E-I fiind dotata cu un iluminator in infrarosu cu LED-uri IR.

Puteti inregistra imaginile obtinute de aceasta camera supraveghere atat pe un inregistrator de tip DVR, NVR, sau chiar PC.Camera de supraveghere HIKVISION DS-2CD1023G0E-I beneficiaza de tehnologiile DWDR si EXIR 2.0 care ii permit sa ofere imagini detaliate chiar si in conditii de iluminare scazuta sau cu puncte puternice de lumina in fundal. Camera supraveghere are un grad de protectie IP 67 impotriva intemperiilor, fiind potrivita pentru montaj la exterior chiar si in conditii de praf si ploaie.

Tehnologia CMOS

Camerele de supraveghere Hikvision au si ele in tehnologia CMOS care ajuta la captarea imaginilor la o calitate superioara. Printre altele, caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Full HD

Nici un detaliu nu trece neobservat. Cu tehnologia FullHD poti surprinde imagini de o calitate cu pana la de 5 ori mai detaliata decat cu cea SD. De asemenea, suprafata care va fi acoperita de camera supraveghere va fi mult mai mare.

Specificatii tehnice camera de supraveghere Hikvision DS-2CD1023G0E-I:

  • Camera

  • Image Sensor: 1/2.7" Progressive Scan CMOS
  • Max. Resolution: 1920 × 1080
  • Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100, 000 s
  • Day & NightIR: cut filter
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
  • Lens

  • Focal Length & FOV:

    2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°

    4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°

  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F2.0
  • Illuminator

  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
  • Video

  • Main Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

  • Video Compression

    Main Stream: H.265/H.264/H.264+/H.265+

    Sub-Stream: H.265/H.264/MJPEG

  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Region Of Interest (ROI): 1 fixed region for main stream
  • Network

  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface, ISAPI
  • User/Host: Up to 32 users. 3 levels: administrator, operator and user
  • Client: iVMS-4200, Hik-Connect
  • Web Browser

    Plug-in required live view: IE 10+

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+

  • Image

  • Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): Digital WDR
  • SNR: ≥ 52 dB
  • Image Enhancement: BLC, 3D DNR
  • Interface

  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Event

  • Basic Event: Motion detection, video tampering alarm, exception
  • Linkage: Upload to FTP, notify surveillance center, send email
  • General

  • Power

    12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

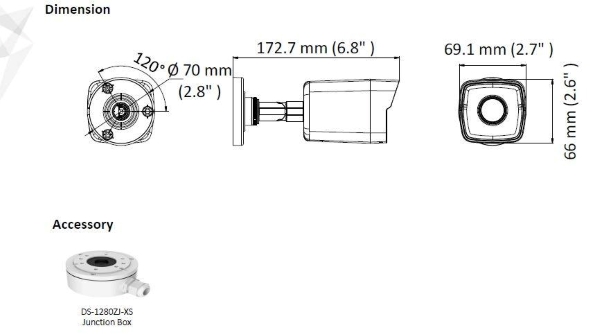

  • Dimension: 177.6 mm × 66.2 mm × 67.8 mm (7.0" × 2.6" × 2.7")
  • Package Dimension: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
  • Approx. 270 g (0.6 lb.)
  • With Package Weight: Approx. 490 g (1.1 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Language: English, Ukrainian
  • General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Approval

  • EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 (IEC 60529-2013)



Camere de supraveghere

Tip supraveghere video
:
  • Supraveghere IP
Rezolutie
:
  • 1920 x 1080 (1080P)
Infrarosu ( IR )
:
  • 30 m
Lentila
:
  • Lentila Fixa

Manual DS-2CD1023G0E-I (Manual_DS-2CD1023G0E-I.PDF, 53,807 Kb) [Download]

No reviews found
