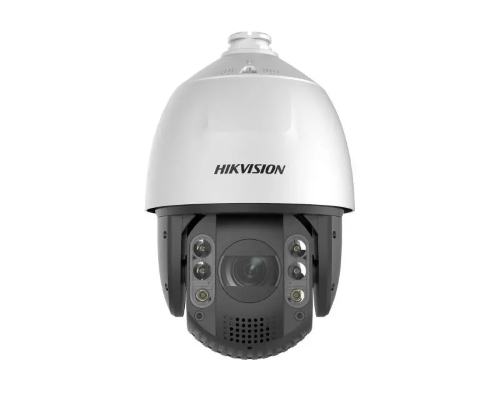

Speed dome Hikvision DS-2DE7A432IW-AEB(T5), AcuSense 4MP, zoom 32x, IR200m

Hikvision, Supraveghere IP
Scrie o recenzie
DS-2DE7A432IW-AEB(T5)

Speed dome AcuSense 4MP, zoom 32x, IR200m, HIKVISION, DS-2DE7A432IW-AEB(T5)

Camera de supraveghere Hikvision DS-2DE7A432IW-AEB(T5) 4 MP zoom 32x, IR200m, speed Dome adopta un senzor CMOS de scanare progresivă de 1/1,8" cu obiectivul cu zoom optic de 32 X,camera ofera mai mult detalii pe zone extinse. Această serie de camere poate fi utilizata pe scara larga pentru game largi de
de inalta definitie, cum ar fi raurile, drumurile, caile ferate, aeroporturile, piete, parcuri, locatii etc. Camera de supraveghere este dotata cu algoritmi de învatare profunda, tehnologia Hikvision AcuSense se concentreaza asupra tintelor umane si vehiculelor, imbunatatind considerabil alarma eficienta si eficacitate ei.

Camera de supraveghere Hikvision DS-2DE7A432IW-AEB(T5) ofera imagini de înalta calitate cu rezolutie de 4 MP si performanta excelenta în conditii de lumina scazuta, cu tehnologia DarkFighter. Functia de alarma audio-vizuala activeaza o lumina alba intermitenta si avertismentul sonor ce pot fi declansate de anumite eveniment, iar proiectorul IR ofera vizualizare pe timp de noapte pe o distanta de pana la 200 m.

Specificatii tehnice camera supraveghere video HIKVISION, DS-2DE7A432IW-AEB(T5):

Cameră
Senzor 1/1.8" progressive scan CMOS
Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with
Shutter Time 1/1 s to 1/30000 s
Zoom 32x optical, 16x digital
Unghi de vizualizare

Horizontal field of view: 50.8° to 2.6° (wide-tele),

Vertical field of view: 29.4° to 1.5° (wide-tele),

Diagonal field of view:57.4° to 3° (wide-tele)

Day& Night IR cut filter
IR Distance: up to 200 m
Dori

Detect (25px/m): 2046.9 m

Observe (63px/m): 812.3 m

Recognize (125px/m): 409.4 m

Identify (250px/m): 204.7 m

Video
Main Stream

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264/MJPEG

Video Bit Rate 32 kbps to 16384 kbps
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region Of Interest (ROI) 8 fixed regions for each stream
General
Operating Conditions

-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)

Power Supply

24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater);

Hi-PoE

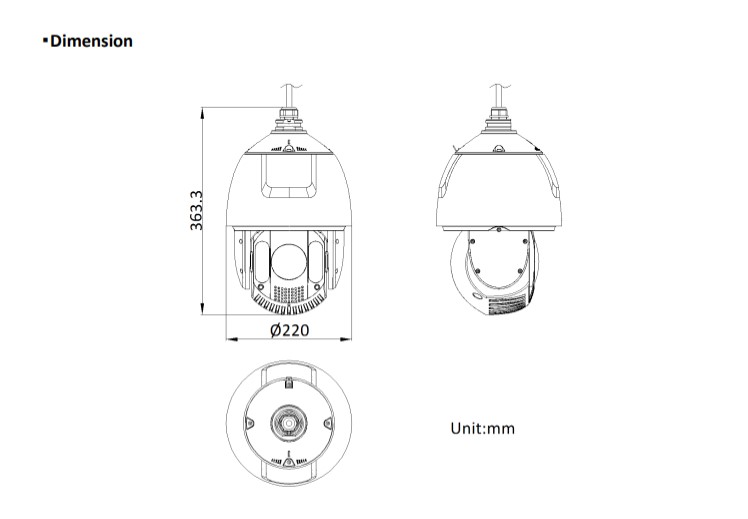

Dimensions
Ø 220 mm × 363.3 mm (Ø 8.66" × 13.91")
Weight
Approx. 5 kg
Protection Level IP67
Lens
Focal Length 5.9 mm to 188.8 mm
Zoom Speed

Approx. 4.8 s

Focus Auto, semi-auto, manual, rapid focus
Audio
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Audio Compression

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC)

Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Network
Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

User/Host Up to 32 users, 3 user levels: administrator, operator, and user
Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Wide Dynamic Range (WDR) 120 dB
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
  SNR > 52 dB
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Storage

Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB

Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Deep Learning Function
Face Capture

Detects up to 5 faces simultaneously.

Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

Disponibilitate:
La comanda

Camere de supraveghere

Tip supraveghere video
:
  • Supraveghere IP
Rezolutie
:
  • 2688x1520 (4MP)
Infrarosu ( IR )
:
  • >= 100 m
Audio:
  • Audio incorporat
Stocare Card:
  • SD-CARD

Manual de utilizare (Manual_UD23863B-B_Network-Speed-Dome_User-Manual_H8-5.7.0_20211119.PDF, 14,091 Kb) [Download]

Fisa Tehnica (UD24992B_Baseline_Multilingual_Network-Speed-Dome_QSG_V5.7.0_20210809.pdf, 1,931 Kb) [Download]
