DVR Turbo HD 4 canale video 1080P, Hikvision DS-7104HUHI-K1(S)

Hikvision, DVR , 4 canale
399 Lei
DS-7104HUHI-K1(S)
+
Suna-ma!

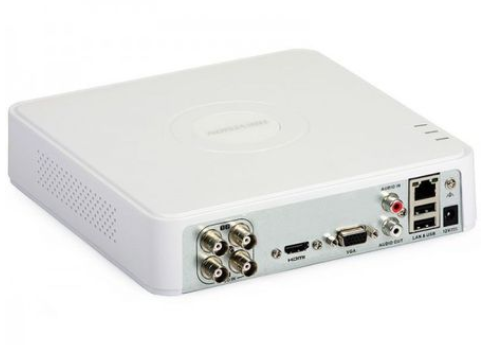

DVR Turbo HD 4 canale video 1080P, Hikvision DS-7104HUHI-K1(S)

DVR Turbo HD cu 4 canale video Hikvision DS-7104HUHI-K1(S) are o rezolutie de inregistrare de pana la 5 MP (HDTVI) sau 1920 x 1080 pixeli (AHD/ HDCVI) si reda imaginile la aceeasi rezolutie.

Hikvision DS-7104HUHI-K1(S) suporta 1 HDD SATA cu capacitate pana la 6TB.

Temperatura de functionare porneste de la - 10 grade Celsius si poate ajunge pana la + 55 grade Celsius.

Hikvision DS-7104HUHI-K1(S)  suporta camere : HDTVI, AHD,CVI  5MP /4MP /3MP /1080P/720P; Analog + 2 ch. IP max 5MP;

Specificatii tehnice DVR Turbo HD Hikvision DS-7104HUHI-K1(S)

Recording

  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame RateMain stream: ,8MP@8fps/5MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N)
  • Video Bit Rate32 Kbps to 10 Mbps
  • Dual StreamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bit Rate64 Kbps

Video And Audio

  • IP Video Input4-ch (up to 8-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
  • CVBS InputPAL/NTSC
  • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous Playback4-ch
  • HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
  • VGA/HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network

  • Remote Connections32
  • Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
  • Network Bandwidth32Mbps

Auxiliary Interface

  • SATA1 SATA interface
  • CapacityUp to 6 TB capacity for each disk
  • Alarm In/OutN/A
  • USB Interface2 × USB 2.0

General

  • Power Supply12 VDC
  • Consumption (Without HDD)≤ 15 W
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Dimensions (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
  • Weights (Without HDD)≤ 1.16 kg (2.6 lb)
Disponibilitate:
3-5 zile

Video Recorder

Tip inregistrator :
  • DVR
Protocoale acceptate DVR:
  • CVI (HDCVI)
  • Turbo HD
  • AHD
Numar canale video :
  • 4 canale
Rezolutie inregistrare DVR:
  • 5MP (2560 x 1920)
Numar porturi HDD:
  • 1 SATA
Numar canale audio:
  • 1 canal RCA
