DVR Turbo HD 4 canale video, Hikvision DS-7104HQHI-K1(S)

Hikvision, DVR , 4 canale
247 Lei
DS-7104HQHI-K1(S)
+
Suna-ma!

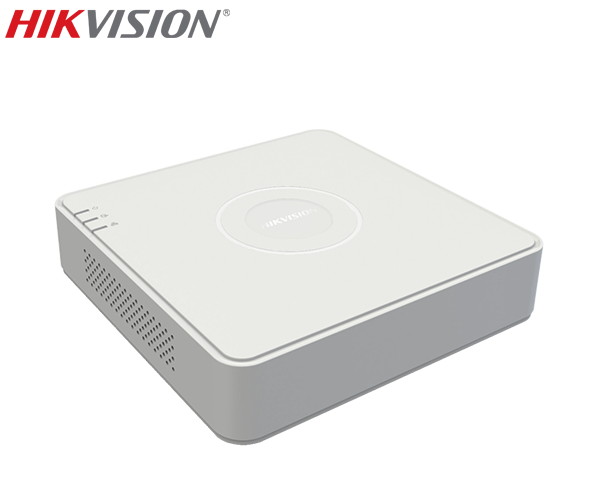

DVR Turbo HD 4 canale video, Hikvision DS-7104HQHI-K1(S)

Modelul de DVR DS-7104HQHI-K1 a fost inlocuit cu noul model DS-7104HQHI-K1(S).

DS-7104HQHI-K1(S) este un DVR Hikvision cu 4 canale pe care se pot conecta pana la 4 camere Turbo HD si AHD. DVR-ul poate reda simultan imaginile de pe toate cele 4 canale si monitorizeaza zona supravegheata. 4 intrari audio HDTVI pe coaxial si 1 intrare audio analogica.

Imaginile inregistrate de DVR pot fi stocate pe un hard disk cu capacitate maxima de 6 TB (nu este inclus). Atunci cand se atinge capacitatea maxima de stocare a hard disk-ului, DVR va rescrie peste imaginile cele mai vechi.

DVR-ul are software dedicat care permite vizualizarea imaginilor pe internet. Acestea pot fi accesate din browser-ul calculatorului sau prin aplicatie pentru smartphone. Acest software permite conectarea a pana la 128 de utilizatori simultan, pentru vizualizarea imaginilor.

Specificatii tehnice DVR Hikvision DS-7104HQHI-K1(S):

Video/Audio Input
Audio Input:   1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video Compression:   H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog Video Input:   4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Analog and HD-TVI video input:   4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60,*: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1.
IP Video Input:   2-ch (up to 6-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Audio Compression:   G.711u
Video/Audio Output
HDMI/VGA Output:   1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Frame Rate:   Main stream: When 1080p Lite mode not enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps ,(P)/30fps (N)
Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
Video Bit Rate:   32 Kbps to 6 Mbps
Stream Type:   Video, Video & Audio
Audio Output:   1-ch, RCA (Linear, 1 KΩ)
Audio Bit Rate:   64 Kbps
Dual Stream:   Support
Synchronous Playback:   4-ch
Network management
Remote connections:   32
Network protocols:   TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk Driver
Interface Type:   1 SATA interface
Capacity:   Up to 6 TB capacity for each disk
External Interface
Network Interface:   1, RJ45 10M/100M self-adaptive Ethernet interface
USB Interface:   Real panel: 2 × USB 2.0
General
Power Supply:   12 VDC
Consumption:   ≤ 8 W
Working Temperature:   -10 ºC to +55 ºC (+14 ºF to +131 ºF)
Working Humidity:   10% to 90%
Dimensions:   200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weight:   ≤ 1 kg (2.2 lb)
Disponibilitate:
3-5 zile

Video Recorder

Tip inregistrator :
  • DVR
Protocoale acceptate DVR:
  • CVBS
  • CVI (HDCVI)
  • Turbo HD
  • AHD
  • IP
Numar canale video :
  • 4 canale
Rezolutie inregistrare DVR:
  • 4MP ( 2688 x 1520 )
Numar porturi HDD:
  • 1 SATA
Numar canale audio:
  • 1 canal RCA

Nici o postare găsită

Posteaza recenzie

Fisa tehnica DVR Hikvision DS-7104HQHI-K1(S) (Datasheet_of_DS-7100HQHI-K1.pdf, 976 Kb) [Download]
