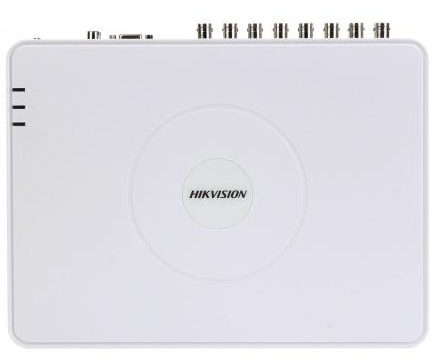

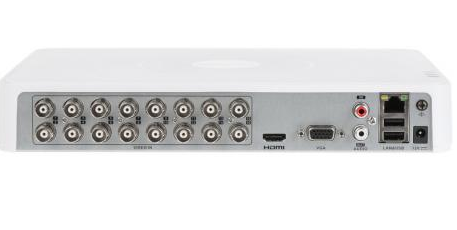

DVR TURBO HD 16 canale video, 1080p, Hikvision DS-7116HGHI-F1-N

DVR TURBO HD 16 canale video, 1080p, Hikvision DS-7116HGHI-F1-N

DVR cu 16 canale marca HIKVISION DS-7116HGHI-F-N protocol Turbo, poate sa ajunga la o rezolutie de redare de 1920 x 1080 pixeli cu o viteza de 25 cadre pe secunda.

HIKVISION DS-7116HGHI-F-N permite playback simultan pe 16 canale video, rata de transfer de pana la 4 Mbps.

Suporta 1 HDD SATA cu capacitate pana la 6TB si posibilitatea de backup prin cele 2 interfete USB 2.0.

Camere suportate: HDTVI, AHD,CVI 1080P/720P;

Specificatii tehnice DVR Turbo HD Hikvision DS-7116HGHI-F1-N

Recording

• Video CompressionH.264+/H.264
• Encoding ResolutionWhen 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
• Frame RateMain stream: When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: CIF/QVGA/QCIF@25fps (P)/30fps (N)
• Video Bit Rate32 Kbps to 4 Mbps
• Dual StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bit Rate64 Kbps

Video And Audio

• IP Video InputUp to 16-ch Up to 960p resolution Support H.264+/H.264 IP cameras
• Analog Video Input16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• Turbo HD Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way AudioReuse the first audio input
• Synchronous Playback16-ch
• VGA/HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network

• Remote Connections128
• Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

• SATA1 SATA interface
• CapacityUp to 6 TB capacity for each disk
• Alarm In/OutN/A
• USB InterfaceRear panel: 2 × USB 2.0

General

• Power Supply12 VDC
• Consumption (Without HDD)≤ 20 W
• Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
• Working Humidity10% to 90%
• Dimensions (W × D × H)285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
• Weights (Without HDD)≤ 1.2 kg (2.6 lb)
