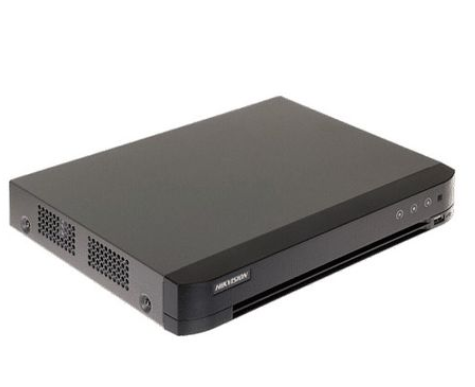

DVR AcuSense 8 canale video 1080P, Hikvision iDS-7208HQHI-M1-S

Hikvision, DVR , 8 canale
480 Lei
iDS-7208HQHI-M1-S
+
Suna-ma!

DVR AcuSense 8 canale video 1080P, Hikvision iDS-7208HQHI-M1-S

DVR AcuSense cu 8 canale video marca Hikvision DS-7104HGHI-F1, inregistrare video de pana la 4 MP.

Analiza video (VCA): Detectie om/masina (4 canale) detectie faciala (1 canal) trecere linie intrus in perimetru.

DVR Hikvision DS-7104HGHI-F1 suporta 1 HDD SATA cu capacitate pana la 10 TB.

Camere suportate: HDTVI,AHD,CVI 4MP/ 1080P/ 720P, Analog + 2 ch. IP max 4MP.

Specificatii tehnice DVR Hikvision iDS-7208HQHI-M1-S

Recording

  • Encoding ResolutionMain stream: When 1080p lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
  • Video Bit Rate32 Kbps to 6 Mbps
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Dual StreamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bit Rate64 Kbps

Video And Audio

  • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Synchronous Playback8-ch
  • IP Video Input4-ch (up to 12-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
  • HDTVI Input3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps *: The 3 MP signal input is only available for channel 1/2 of iDS-7208HQHI-M2/S, and for channel 1/2/3/4 of iDS-7216HQHI-M2/S.
  • HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • CVBS InputPAL/NTSC
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Analog Video Input8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • AHD Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • HDMI/VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output

Network

  • Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote Connections64
  • Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

  • CapacityUp to 10 TB capacity for each disk
  • Serial InterfaceRS-485 (half-duplex)
  • USB Interface2 × USB 2.0
  • Alarm In/OutN/A
  • SATA1 SATA interface

General

  • Consumption(Without HDD)≤ 18 W
  • Working Humidity10% to 90%
  • Power Supply12 VDC
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Dimensions(W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
  • Weights (Without HDD)≤ 1.78 kg (3.9 lb)
Disponibilitate:
3-5 zile

Video Recorder

Tip inregistrator :
  • DVR
Protocoale acceptate DVR:
  • CVI (HDCVI)
  • AHD
  • SD ( Analog)
  • IP
Numar canale video :
  • 8 canale
Rezolutie inregistrare DVR:
  • 4MP ( 2688 x 1520 )
Numar porturi HDD:
  • 1 SATA
Numar canale audio:
  • 1 canal RCA
