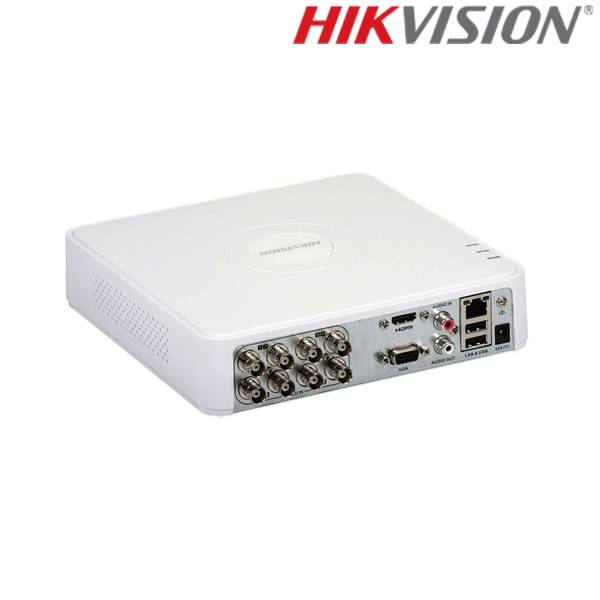

DVR 8 canale TurboHD, 8MP, HIKVISION DS-7108HUHI-K1

Hikvision, DVR , 8 canale
621 Lei
DS-7108HUHI-K1(S)
+
Suna-ma!

DVR 8 canale TurboHD, 8MP, HIKVISION DS-7108HUHI-K1

HIKVISION DS-7108HUHI-K1 este un DVR cu 8 canale video, ce poate inregistra imagini provenite de la camere de supraveghere ce au o rezolutie maxima de 8 Megapixeli, cu maxim 8 de cadre/secunda/canal.

DVR-ul DS-7108HUHI-K1 pentabrid permite conectarea unor camere cu tehnologie HDCVI, HDTVI, AHD, ANALOGICA, IP .

Inregistratorul este conceput cu o singura intrare audio, la care puteti conecta un microfon, permitand supravegherea audio de la distanta, de pe PC sau chiar telefonul mobil. Pentru conectarea la un echipament de redare audio (sistem audio, TV, casti, etc.), DVR-ul are o iesire audio.

Specificatii tehnice DVR cu 8 canale HIKVISION DS-7108HUHI-K1 :


Video/Audio Input
Audio Input:   1-ch
Video Compression:   H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input:   8-ch,BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Supported camera types:   Support HDTVI input: 8 MP,5 MP, 4 MP, 3 MP, 1080p30, 1080p25,720p60, 720p50, 720p30, 720p25
Support AHD input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support HDCVI input:4 MP, 1080p25, 1080p30, 720p25, 720p30
support CVBS input
Video Input Interface:   BNC (1.0 Vp-p, 75Ω)
Audio Compression:   G.711u
Audio Input Interface:   RCA (2.0 Vp-p, 1 kΩ)
Video/Audio Output
HDMI/VGA Output:   VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Frame Rate:   Main stream:
When 8 MP Lite mode is not enabled: 8 MP@8 fps/5MP@12 fps/4 MP@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1 of DS-7104HUHI-K1.
When 8 MP Lite mode enabled:
8 MP Lite/3MP/1080P/720P/WD1/4CIF/VGA/CIF@15 fps
*: 8 MP Lite is only available for DS-7104HUHI-K1.
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:   32 Kbps-10 Mbps
Stream Type:   Video/Video&Audio
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:   1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:   64kbps
Dual Stream:   Support
Synchronous Playback:   8-ch
Network management
Remote connections:   64
Network protocols:   TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,
ONVIF
Hard Disk Driver
Interface Type:   1 SATA Interface
Capacity:   Up to 6 TB capacity for each disk
External Interface
Network Interface:   1 RJ45 10M/100M/1000M adaptive Ethernet Interface
USB Interface:   2 USB 2.0 Interfaces
General
Power Supply:   12 VDC
Consumption:   ≤ 15 W
Working Temperature:   -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity:   10% to 90%
Dimensions:   285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
Weight:   ≤ 2 kg (4.4 lb)
Disponibilitate:
3-5 zile

Video Recorder

Tip inregistrator :
  • DVR
Protocoale acceptate DVR:
  • CVBS
  • CVI (HDCVI)
  • Turbo HD
  • AHD
  • IP
Numar canale video :
  • 8 canale
Rezolutie inregistrare DVR:
  • 8MP ( 3840 x 2160 )
Numar porturi HDD:
  • 1 SATA
Numar canale audio:
  • 1 canal RCA

Nici o postare găsită

Posteaza recenzie

Datasheet DS-7108HUHI-K1 (DS-7108HUHI-K1.pdf, 725 Kb) [Download]
