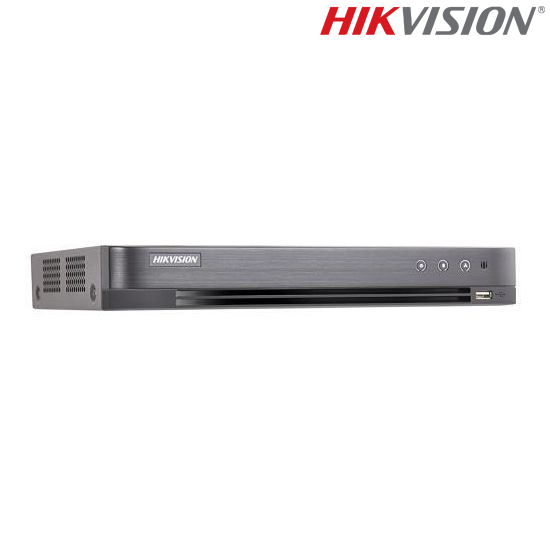

DVR 8 canale, Turbo HD, 8MP, PoC, Hikvision DS-7208HUHI-K2-P

Hikvision, DVR , 8 canale
DS-7208HUHI-K2-P

DVR 8 canale, Turbo HD, 8MP, PoC, Hikvision DS-7208HUHI-K2-P

DS-7208HUHI-K2-P este un DVR Turbo HD Hikvision cu 8 canale FullHD care functioneaza cu camere de supraveghere: de pana la 8MP pentru camere IP si Turbo HD. Transmisia de semnal HDTVI se face la maxim 800 m pentru 1080P si 1200 m pentru 720P. Suporta vizualizarea simultana a 8 canale local cat si la distanta prin Internet de pe PC, Smartphone folosind aplicatiile dedicate (iVMS-4500). Utilizeaza simultan camere HDTVI, AHD, HDCVI, CVBS si IP. Suporta si camere Hikvision PoC.

Specificatii tehnice DVR Hikvision DS-7208HUHI-K2-P:

Video/Audio Input
Audio Input:   4-ch
Video Compression:   H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input:   8-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:   Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
Support AHD input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVBS input
Supports Hikvision PoC camera
*: PoC access capability see Appendix.
Video Input Interface:   BNC (1.0 Vp-p, 75Ω)
Audio Compression:   G.711u
Audio Input Interface:   RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)
Video/Audio Output
Frame Rate:   Main stream:
8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:   32 Kbps-6 Mbps
Stream Type:   Video/Video&Audio
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:   1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:   64kbps
Dual Stream:   Support
Synchronous Playback:   8-ch
Network management
Remote connections:   64
Network protocols:   TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF
Hard Disk Driver
Interface Type:   2 SATA Interfaces
Capacity:   Up to 10 TB capacity for each disk
External Interface
Network Interface:   1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface:   1 USB 2.0 Interface & 1 USB 3.0 Interface
Serial Interface:   1; standard RS-485 serial interface, half-duplex
Alarm Input:   8-ch
Alarm Output:   4-ch
General
Power Supply:   48 VDC
Consumption:   ≤ 60 W(without hard disks)
Working Temperature:   -10 oC to +55 oC (14 oF to 131 oF)
Working Humidity:   10% to 90%
Dimensions:   380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight:   ≤ 2 kg (4.4 lb)
Disponibilitate:
3-5 zile

Video Recorder

Tip inregistrator :
  • DVR
Protocoale acceptate DVR:
  • CVBS
  • CVI (HDCVI)
  • Turbo HD
  • AHD
  • IP
Numar canale video :
  • 8 canale
Rezolutie inregistrare DVR:
  • 8MP ( 3840 x 2160 )
Numar porturi HDD:
  • 2 SATA
Numar canale audio:
  • 4 canale RCA

Nici o postare găsită

Posteaza recenzie

Fisa tehnica Hikvision DS-7208HUHI-K2-P (UD11366B_Datasheet_of_DS-7200HUHI-K_P_V4.2.0_20190223.pdf, 658 Kb) [Download]
