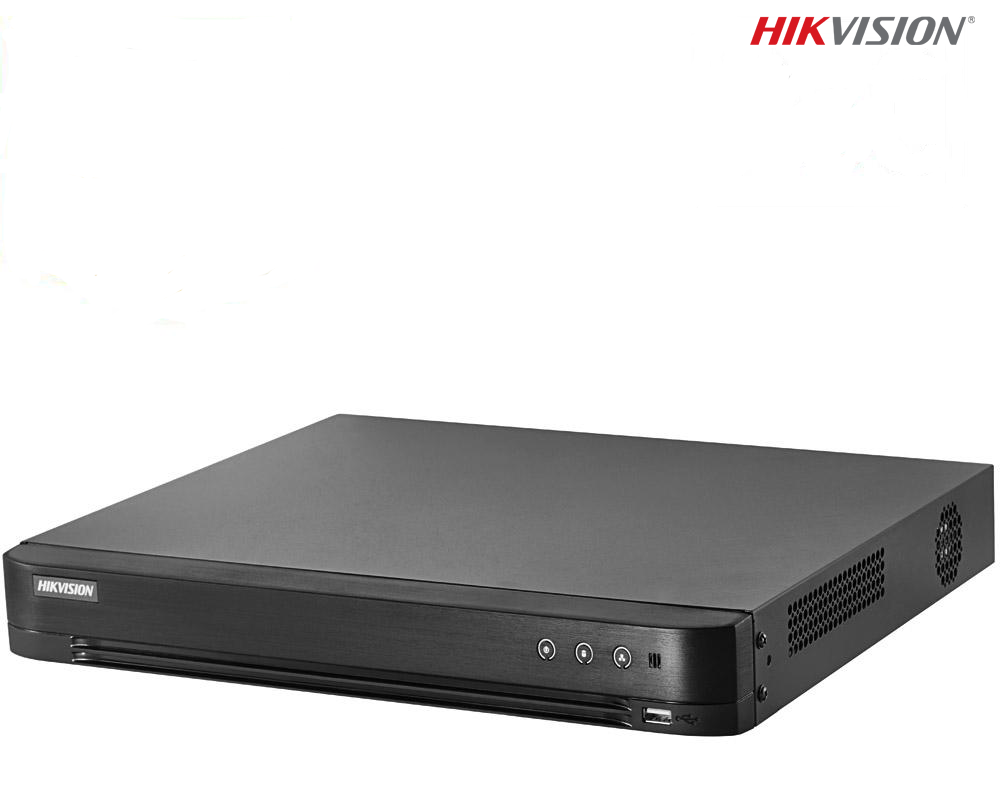

DVR 32 canale, Turbo HD, 4MP, Hikvision DS-7232HQHI-K2

Hikvision, DVR , 32 canale
1,480 Lei
DS-7232HQHI-K2
+

DVR 32 canale, Turbo HD, 4MP, Hikvision DS-7232HQHI-K2

Hikvision DS-7232HQHI-K2 este un DVR Hibrid cu 32 de canale video ce suporta tehnologiile AHD,HDCVI, HDTVI si CVBS oferind o solutie accesibila si flexibila pentru cele mai populare formate de inregistrare. Rezolutia maxima de inregistrare este de 4MP pentru AHD si TVI si FullHD ( pentru camere CVI). Capacitatea maxima de stocare a DVR-ului este de 16 TB avand posibilitatea de conectare a 2 HDD Sata de 8 TB fiecare.

Specificatii tehnice DVR Hikvision DS-7232HQHI-K2:

Audio/Video
Tehnologii suportate: HDTVI / HDCVI / CVBS / AHD
Intrari video analogice: 32 canale
Intrari video IP: 2 canale
Iesiri video: 1x HDMI, 1x VGA
Rezolutie redare:

HDMI1/VGA: 1920x1080, 1280x1024, 1280x720, 1024x768

HDMI2: 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Intrari/Iesiri Audio: 1/1 RCA
Comunicare bidirectionala: 1x canal RCA (Utilizand primul canal de intrare audio)
Inregistrare
Rezolutie inregistrare: 4Mp, 3Mp, 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Cadre/Secunda:

Main Stream:
Cand modul 1080p Lite nu este activat:

4MP stream: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

3MP stream: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps

1080p stream: 1080p/720p@15fps; 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

720p stream: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Cand modul 1080p Lite este activat:

4MP stream: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

3MP stream: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps

1080p stream: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

720p stream: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Sub Stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Compresie video: H.265+/H.265/H.264+/H.264
Compresie audio: G.711u
Retea
Interfata: 1x Port RJ-45 (10/100/1000M)
Protocol retea: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Utilizatori simultani: 128
Stocare
HDD: 2 porturi SATA, pana la 8TB pentru fiecare hard
eSata: Lipsa
Interfete auxiliare
USB: 2x porturi USB (1 USB 2.0 , 1 USB 3.0)
RS232: Lipsa
RS485: 1x Port, pentru Control PTZ
Functii Speciale
Mod Backup: USB, Retea
Caracteristici generale
Temperatura de functionare: de la - 10°C pana la +55°C
Alimentare: 12 VDC
Consum: < 65 W
Dimensiune: 380 x 320 x 48 mm
Greutate: 2 kg
Disponibilitate:
3-5 zile

Video Recorder

Tip inregistrator
:
  • DVR
Protocoale acceptate DVR:
  • CVBS
  • CVI (HDCVI)
  • Turbo HD
  • AHD
  • IP
Numar canale video
:
  • 32 canale
Rezolutie inregistrare DVR:
  • 4MP ( 2688 x 1520 )
Numar porturi HDD:
  • 2 SATA
Numar canale audio:
  • 1 canal RCA

Nici o postare găsită

Posteaza recenzie

Fisa tehnica DS-7232HQHI-K2 (Datasheet_of_DS-72247232HQHI-K2.pdf, 843 Kb) [Download]
