DVR 32 canale canale video max. 8MP, Turbo HD 4.0, Hikvision DS-7332HUHI-K4

Hikvision, DVR , 32 canale
3,923 Lei
Hard disk pentru stocarea imaginilor in DVR/NVR
DS-7332HUHI-K4
+
Suna-ma!

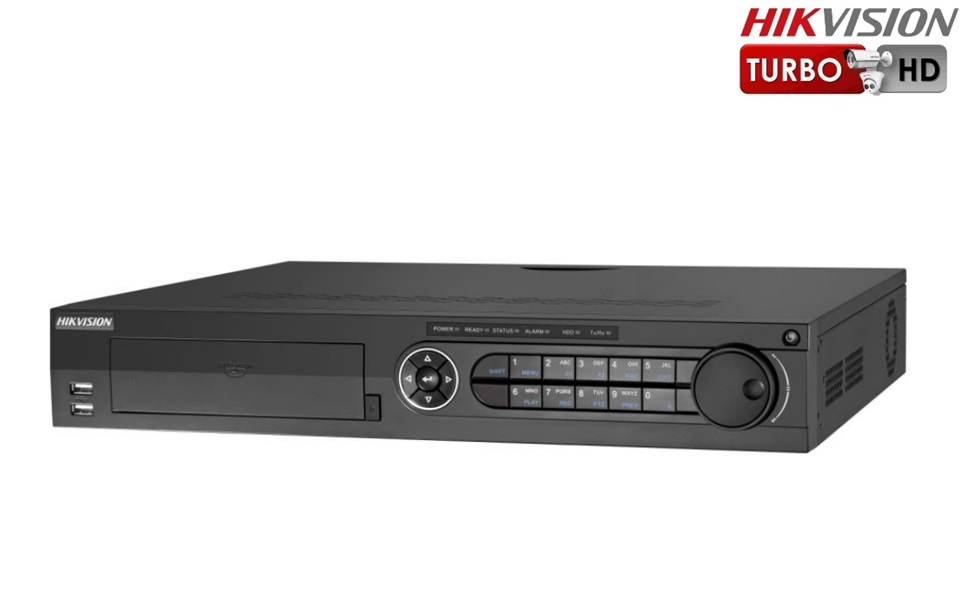

DVR 32 canale canale video max. 8MP, Turbo HD 4.0, Hikvision DS-7332HUHI-K4

DVR cu 32 canale video Hikvision DS-7332HUHI-K4, inregistrare 32 camere de supraveghere video Turbo HD cu rezolutie maxim 8MP si 8fps, stocarea se poate face pe maxim 4 hard disk-uri de 10TB fiecare (nu sunt incluse).

DVR-ul Hikvision DS-7332HUHI-K4 functioneaza in regim hibrid: inregistreaza simultan camere de supraveghere video analogice, camere de supraveghere video TurboHD dar si pana la 16 camere de supraveghere video IP.

Camerele de supraveghere video pot fi conectate la inregistratorul video DVR pe o distanta de pana la 800 m pentru 1080p si 1200 m pentru 720p semnal HDTVI.

Rezolutie monitor 4K prin iesirea HDMI.

Vizualizare Live direct de pe telefonul mobil cu ajutorul aplicatiei iVMS-4500. Este o aplicatie mobila pentru smartphone-uri care ruleaza pe sisteme de operare Windows Phone, Android sau iOS fiind disponibila gratuit pe AppStore. Aceasta poate fi utilizata pentru monitorizarea live, redarea si descarcarea inregistrarilor de la DVR-uri, NVR-uri şi camere IP prin intermediul retelelor Wi-Fi, 2G sau 3G.

Specificatii tehnice DVR Hikvision DS-7332HUHI-K4:

Video/Audio Input
Audio Input:   4-ch
Video Compression:   H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input:   32-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:   Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
Support AHD input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVBS input
Audio Compression:   G.711u
Audio Input Interface:   4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
CVBS Output:   1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
HDMI2 Output:   1-ch,4K(3840 × 2160)/30Hz,2K(2560 × 1440)/60Hz,1920×1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz
HDMI/VGA Output:   1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Frame Rate:   Main stream:
8 MP@8fps/5 MP@12fps; 4 MP@15fps; 3 MP@18fps;
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)

Video Bit Rate:   32 Kbps-6 Mbps
Stream Type:   Video/Video&Audio
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:   1-ch RCA(Linear, 1kΩ)
Dual Stream:   Support
Synchronous Playback:   16-ch
Network management
Remote connections:   128
Network protocols:   TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF
Hard Disk Driver
Interface Type:   4 SATA Interfaces
Capacity:   Up to 10 TB capacity for each disk
External Interface
Network Interface:   2; 10M / 100M / 1000M self-adaptive Ethernet interfaces
Serial Interface:   1 RS-232 serial interface
1 RS-485 serial interface, full-duplex,1 RS-485 keyboard interface
Alarm Input:   16-ch
Alarm Output:   4-ch
General
Power Supply:   100 to 240 VAC
Consumption:   ≤ 74W(without hard disks)
Working Temperature:   -10 oC to +55 oC (+14 oF to +131 oF)
Working Humidity:   10% to 90%
Dimensions:   440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch)
Weight:   ≤ 7 kg (15.4 lb)
Disponibilitate:
3-5 zile

Video Recorder

Tip inregistrator :
  • DVR
Protocoale acceptate DVR:
  • Turbo HD
Numar canale video :
  • 32 canale
Rezolutie inregistrare DVR:
  • 8MP ( 3840 x 2160 )
Numar porturi HDD:
  • 4 SATA
Numar canale audio:
  • 4 canale RCA

Nici o postare găsită

Posteaza recenzie

Fisa tehnica Hikvision DS-7332HUHI-K4 (Fisa_tehnica_Hikvision_DS-7332HUHI-K4.pdf, 714 Kb) [Download]
