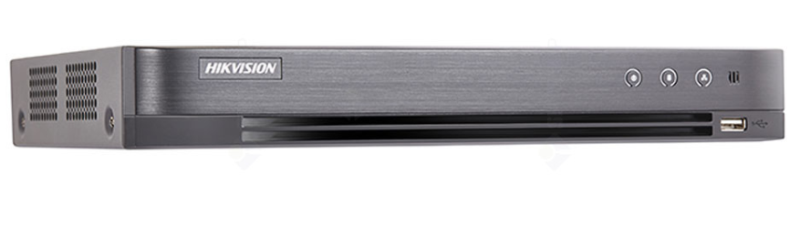

DVR 16 canale video, TURBO HD, 8 MP, PoC, Hikvision DS-7216HUHI-K2-P

Hikvision, DVR , 16 canale
1,821 Lei
DS-7216HUHI-K2-P
+
Suna-ma!

DVR 16 canale video, TURBO HD, 8 MP, PoC, Hikvision DS-7216HUHI-K2-P

DVR cu 16 canale marca Hikvision DS-7216HUHI-K2-P protocol Turbo, cu o rezolutie de pana la 8 MP, suporta pana la 32 camere IP cu rezolutia maxima de 8 MP; 16 camere (8 camere AT + 8 AF sau pana la 12 camere AT) prin PoC.

Hikvision DS-7216HUHI-K2-P suporta 2x HDD SATA cu capacitate pana la 10TB si posibilitatea de backup prin cele 2 porturi USB (1x USB 2.0 fata, 1x USB 3.0 spate).

Camere suportate: HDTVI, AHD,CVI 8MP / 5MP /4MP /3MP /1080P/720P; Analog + 16 ch. IP max 8MP;

Specificatii tehnice DVR Hikvision DS-7216HUHI-K2-P

Recording

  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/,CIF,
  • Frame RateMain stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N),
  • Video Bit Rate32 Kbps to 10 Mbps
  • Dual StreamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bit Rate64 Kbps

Video And Audio

  • IP Video Input16-ch (up to 32-ch) Up to 8 MP resolution
  • Analog Video Input16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
  • CVBS InputPAL/NTSC
  • Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous Playback16-ch
  • HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
  • VGA/HDMI OutputVGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, 4K (3840 × 2160)/30Hz, ,2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
  • PoC Camera InputSupport Hikvision PoC camera
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω),resolution: PAL: 704 × 576, NTSC: 704 × 480

Network

  • Remote Connections128
  • Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Network Interface1, ,RJ45 10M/100M/1000M self-adaptive ,Ethernet interface,

Auxiliary Interface

  • SATA2 SATA interfaces
  • CapacityUp to 10 TB capacity for each disk
  • Alarm In/Out4/1
  • USB InterfaceFront panel: 1 × USB 2.0,Rear panel: 1 × USB 3.0
  • Serial InterfaceRS-485 (half-duplex)

General

  • Power Supply100 to 240 VAC
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Dimensions (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
  • Consumption (Without HDD)≤ 140 W
  • Weights (Without HDD)≤ 3.8 kg (8.4 lb)
Disponibilitate:
3-5 zile

Video Recorder

Tip inregistrator :
  • DVR
Protocoale acceptate DVR:
  • CVI (HDCVI)
  • Turbo HD
  • AHD
  • SD ( Analog)
  • IP
Numar canale video :
  • 16 canale
Rezolutie inregistrare DVR:
  • 8MP ( 3840 x 2160 )
Numar porturi HDD:
  • 2 SATA
Numar canale audio:
  • 4 canale RCA
