Centrala alarma , 10 zone, 15 partitii, INIM SmartLiving 10100L
Centrală de alarmă de generatie noua extensibilă de la 10 la 100 terminale, maxim 200 zone, 15 partiții.
Este destinata locuintelor sau firmelor de dimensiuni medii si mari si poate include o vasta gama de module de extensie care sa acopere chiar si cele mai exigente pretentii.
Produsele INIM revolutioneaza piata sistemelor de alarma cu un concept nou de "terminale" care sa ne permita configurare dupa dorinta in intrare de zona sau in iesire programabila.
Tehnologia Easy4U ofera instalatorilor si utilizatorilor o interfata necomplicata si eficienta pe baza "scurtaturilor".

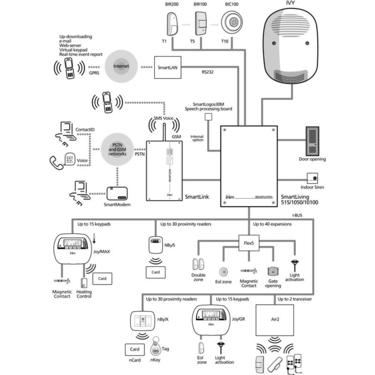

I-BUS este noua magistrala INIM capabila de a transmite la o viteză extrem de mare, de neegalat in acest segment de piata. I-BUS permite sistemului SmartLiving să crească în conformitate cu nevoile de instalare, magistrala de date acceptă cititori de proximitate, tastaturi cu display grafic, extensii de ieşire/intrare, despozitive wireless, apelatoare GSM şi sirene digitale. Sistemul SmartLiving este capabil de înscriere toate perifericele din magistrala în mod automat, astfel usurand şi mai mult procesul de configurare a sistemului.

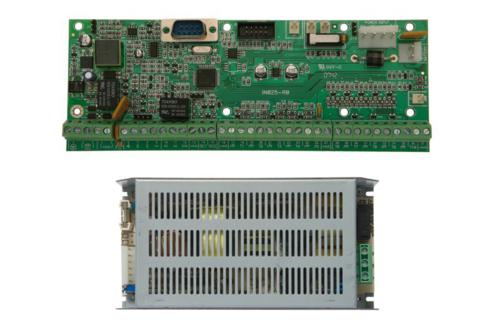

Placa de baza INIM SmartLiving 10100L compusa din:
- 10 terminale (10x2 zone)
- 1 ieșire pe releu
- 2 ieșiri PGM
- comunicator digital
- port RS232 pentru conectarea la PC
Specificatii tehnice INIM SmartLiving 10100L:

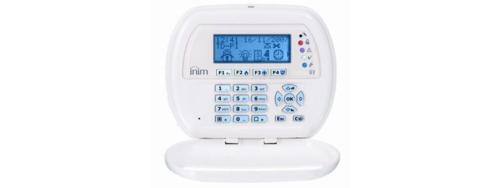

- Maxim 15 tastaturi JOY
- 40 module de extensie Flex5
- 30 cititoare nBy
- 30 interfețe wireless Air2-BS100 (maxim 50 detectoare wireless și 100 telecomenzi)
- 100 coduri utilizator
- 150 cartele de proximitate
- memorie 1000 evenimente.

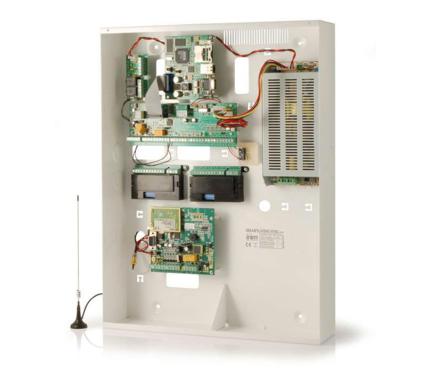

Include cutie metalică mare cu sursă 5 A și spațiu pentru acumulator de 17 Ah.
SPECIFICATII
Hardware features | |
Number of terminals supported by the system | 100 |
Number of terminals available for mapping and relocation | 100 |
Terminals on motherboard (configurable as inputs or outputs) | 10 (5) |
Programmable relay on motherboard | 1 |
Number of programmable open-collector outputs on motherboard | 2 (500mA) |
Number of partitions available | 15 |
Relay and power-diffusion board (accessory item) | Yes |
IP Connectivity management (using SmartLAN) | Yes |
Flex5 expansion board housing | Yes |
GSM device housing | Yes |
Power supply | 5A |
RS232 Port | Yes |
Power charge monitored by temperature probe (ProbeTh accessory item) | Yes |
Battery test circuit | Yes |
Control-panel firmware upgrading capability | Yes |
Peripheral-firmware upgrading capability via control panel | Yes |
Enclosure | Metal |
Battery housing | 17Ah |
Dimensions (HxLxP) | 500x385x95 mm |
Weight without battery | 5,3 Kg |
I-BUS devices | |
I-BUS peripherals enrolled automatically | Yes |
Number of Joy and nCode/G keypads supported | 15 |
Number of nBy readers supported | 30 |
Number of Flex5 5-terminal Expansions supported | 40 |
Number of Air2 Wireless Transceivers supported | 1 |
Air2 wireless devices | |
MC100 Magnetic contacts and/or IR100 PIRs | 50 |
Wireless keyfobs (KF100) | 100 |
Authentication | |
Installer access codes | 2 |
Number of user-access codes (can be controlled by timers) | 100 |
Number of nKey Tags or nCards card (can be controlled by timers) | 150 |
Telephone communications | |
Telephone contact numbers | 10 |
Telephone line check | Yes |
Automatic voice dialer (SmartLogos30M option, refer to Voice functions) | Yes |
Integrated automatic digital-dialer | Yes |
Integrated remote programming modem | Yes |
Input terminals (zones) | |
Auto-learning of zone-balance | Yes |
Zone doubling (each input manages 2 zones) | Yes |
Input terminals for shock and rollerblind sensors on control panel | 2 |
Number of input terminals for shock and rollerblind sensors on keypad configurable as inputs or outputs | 2 (1 on nCode/G) |
Number of input terminals for shock and rollerblind sensors on expansion boards configurable as inputs or outputs | 4 |
Programmable input-zone thresholds | Yes |
Input threshold trimmer | Yes |
Voice functions on motherboard | |
Keypad-to-keypad Intercom (Joy/MAX keypads) | Yes |
Remote Listen-in function with choice of location (Joy/MAX keypads) | Yes |
Voice functions on SmartLogos30M board (accessory item) | |
Automatic-Answephone function (customizable) | Yes |
Voice-memo slot (one message per Joy/MAX keypad) | Yes |
Local voice-prompt menu (customizable) | Yes |
Voice-prompt menu over-the-phone (customizable) | Yes |
Voice notifier on local keypad (Joy/MAX) | Yes |
Automatic Voice-dialer | Yes |
Message recording at Joy/MAX keypads | Yes |
Message recording from PC (using microphone or .wav) | Yes |
Message recording from PC (using text-to-speech function) | Yes |
Other features | |
Week-to-week timers (each with 5 'exception' periods) for automatic arming and enablement | 10 |
Programmable scenarios (arming configurations) | 30 |
Shortcuts (one-stroke actions) | 36 |
Programmable icons | 50 |
Rolling event buffer | 250 |
Events log filter | Yes |
Saves compact event details | Yes |
Manages shortcuts on function keys (12) and on numeric keys (10) on Joy keypads | Yes |
Shortcuts on LEDs (4) on nBy Readers | Yes |
Manages Events-Actions matrix | Yes |
Generates “start of" event-related actions | Yes |
Generates “end of" event-related actions | Yes |
Programming software runs under Windows | Yes |
