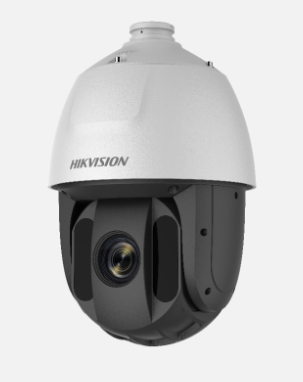

Camera supraveghere Hikvision DS-2DE5232IW-AE Speed Dome, 2MP, Darkfighter IR 150m

Camera supraveghere video IP PTZ, 2 MP, IR 150m, Hikvision DS-2DE5232IW-AE

Hikvision DS-2DE5232IW-AE este o camera de supraveghere video digitala IP, ce are o rezolutie maxima de 2 Megapixeli, oferita de un senzor de imagine 1/2.8".

Avantajele includ posibilitatea de zoom direct pe camera, imagini mai clare, contrast mai bun chiar si in conditii de iluminare scazuta sau la distante focale lungi. Avand si functia de autofocus nu mai este nevoie de o ajustare manuala la fiecare schimbare de cadru.

Poate oferi imagini pe timpul noptii sau in conditii de iluminare scazuta, de la o distanta de pana la 150 metri, DS-2DE5232IW-AE fiind dotata cu un iluminator in infrarosu IR.

Puteti alimenta camera atat dintr-o sursa de alimentare, insa aceasta ofera si functia de alimentare prin cablul de retea (POE), ideala pentru folosirea impreuna cu un NVR ce include un switch POE.

Puteti inregistra imaginile obtinute de aceasta camera atat pe un inregistrator de tip DVR, NVR, sau chiar PC, insa puteti inregistra si pe un card de memorie.

Functia WDR deschide umbrele si intuneca zonele foarte luminoase, astfel beneficiem de imagini cu mai multe detalii si atunci cand iluminarea este dificila.

Functia BLC(compensarea luminii din spate) cu care este dotata camera de supraveghere video HIKVISION DS-2CD2T63G0-I8, permite ca obiectele aflate pe un fundal foarte luminos, de exemplu, in dreptul unei ferestre sau a unei usi de acces, care in mod normal apar foarte intunecate, sa fie vizibile, insa fundalul devine suprasaturat (foarte alb).

Specificatii tehnice camera de supraveghere Hikvision DS-2DE5232IW-AE

Lens

• FOVHorizontal field of view: 55.6° to 2.04° (Wide-Tele),Vertical field of view: 32.4° to 1.14° (Wide-Tele),Diagonal field of view: 63° to 2.34° (Wide-Tele)
• Zoom SpeedApprox. 5.6 s (optical lens, wide-tele)
• Working Distance10 mm to 1500 mm (wide-tele)
• Aperture RangeF1.2 to F4.4
• Focal Length4.8 mm to 153 mm, 32× optical zoom


• Image EnhancementHLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
• Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
• Max. Resolution1920 × 1080
• Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),50fps (1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),60fps (1280 × 960, 1280 × 720)
• Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Network

• Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
• Simultaneous Live ViewUp to 20 channels
• User/HostUp to 32 users,3 levels: Administrator, Operator and User
• ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
• Web BrowserIE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
• Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
• Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Trigger Recording, Trigger Alarm Output, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Interface

• Alarm Output1-ch alarm output
• Alarm Input2-ch alarm input
• Audio Input1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ ± 10%
• Audio Output1-ch audio output, line level, impedance: 600 Ω
• Network Interface1 RJ45 10 M/100 M Ethernet, Hi-PoE

Compression Standard

• H.264+Support
• H.265+Support
• H.264 TypeBaseline Profile/Main Profile/High Profile
• Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
• H.265 TypeMain Profile
• Video Bitrate256 Kbps to 16384 Kbps
• Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
• Audio BitrateG.711alaw/G.711ulaw: 64 Kbps,G.722.1/G.726: 16 Kbps,MP212/PCM: 32 Kbps to 160 Kbps
• SVCSupport

Camera Module

• Image Sensor1/2.8" progressive scan CMOS
• Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001Lux @(F1.6, AGC ON),0 Lux with IR
• White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• GainAuto/Manual
• Shutter Time50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
• Day & NightIR Cut Filter
• Digital Zoom16×
• Privacy Mask24 programmable privacy masks
• Focus ModeAuto/Semi-automatic/Manual
• WDR120 dB WDR

Supplement Light

• IR Distance150 m
• Smart IRSupport

PTZ

• Movement Range (Pan)360° endless
• Pan SpeedConfigurable, from 0.1°/s to 120°/s,Preset speed: 120°/s
• Movement Range (Tilt)From -15° to 90° (auto-flip)
• Tilt SpeedConfigurable, from 0.1°/s to 80°/s,Preset Speed: 80°/s
• Proportional ZoomSupport
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans, record time over 10 minutes for each scan
• Power-Off MemorySupport
• Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• 3D PositioningSupport
• PTZ Status DisplaySupport
• Preset FreezingSupport
• Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

Smart Features

• Basic Event DetectionMotion Detection, Video Tampering Detection, Exception
• Smart DetectionIntrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
• Smart RecordANR (Automatic Network Replenishment), Dual-VCA
• ROIMain stream, sub-stream, and third stream respectively support four fixed areas.

General

• MaterialADC 12, PC, PC+10% GF
• DimensionsΦ 208 mm × 345 mm (Φ 8.19" × 13.58")
• WeightApprox. 3.3 kg (7.28 lb)
• Protection LevelIP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Power24 VAC, 2.2 A, 50/60 Hz and Hi-PoE, 42.5 to 57 VDC, 1.41 A Max.: 30 W, including max. 10W for IR
• Working Temperature-30°C to 65°C (-22°F to 149°F)
• Working Humidity≤ 90%
