Camera supraveghere video IP Hikvision DS-2CD1323G0E-I, 2MP, IR 30m

Hikvision, Supraveghere IP
Scrie o recenzie
233 Lei
DS-2CD1323G0E-I-2.8mm
+

Camera supraveghere video IP Hikvision DS-2CD1323G0E-I, 2MP, IR 30m

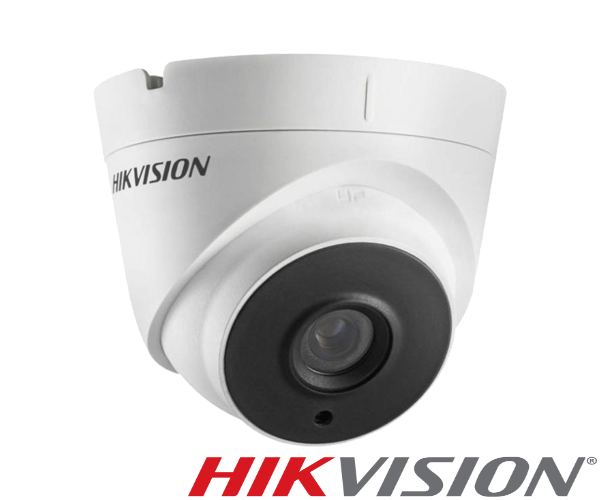

Camera supraveghere video Hikvision DS-2CD1323G0E-I este o camera fixa dome cu o carcasa din metal si plastic. Are o rezolutie de 2M(1920x1080) CMOS iar lentila fixa de 2.8mm ce permite un unghi de vizualizare de 114.5° reusesc sa o scoata putin din tiparele camerelor obisnuite. Cu ajutorul tehnologiei EXIR 2.0 si smart IR ce transforma imaginile intunecate in imagini clare, reuseste sa captureze imagini intr-o iluminare minima de 0.01Lux si 0Lux cu IR la o distanta de pana la 30m.



Hikvision DS-2CD1323G0E-I este o camera de supraveghere video ce are, pentru modul de zi, un efect de modificare automata a calitatii imaginii camerei, ceea ce duce la imbunatatirea culorilor si a contrastului. Gradul de protectie al camerei supraveghere impotriva intemperiilor IP67 ii permite sa functioneze la temperaturi cuprinse intre -30 °C to 60 °C, intr-o umiditate de maxim 90%. Camera supraveghere are si un senzor de detectare a miscarii ce poate fi programat .



Pentru o imagine clara si o conexiune stabila, camera supraveghere Hikvision DS-2CD1323G0E-I ruleaza cel mai bine in combinatie cu DVR-urile Hikvision.

Tehnologia CMOS

Camerele de supraveghere Hikvision au si ele in tehnologia CMOS care ajuta la captarea imaginilor la o calitate superioara. Printre altele, caracteristicile importante ale unei camere de supraveghere cu CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Full HD

Nici un detaliu nu trece neobservat. Cu tehnologia FullHD poti surprinde imagini de o calitate cu pana la de 5 ori mai detaliata decat cu cea SD. De asemenea, suprafata care va fi acoperita de camera supraveghere va fi mult mai mare.

Pentru intrebari cu privire la produse, modul de montaj, mententanta sau daca aveti nevoie de ajutor in alegerea produsului corect, va stam la dispozitie. Ne puteti scrie in pagina "Lasa un mesaj" sau ne puteti contacta la numarul de telefon 0348 88 00 21

Specificatii camera supraveghere video IP Hikvision DS-2CD1323G0E-I

  • Camera

  • Image Sensor: 1/2.7" Progressive Scan CMOS
  • Max. Resolution: 1920 × 1080
  • Min. Illumination: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100, 000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
  • Lens

  • Focal Length & FOV

    2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°

    4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°

  • Lens MountM12
  • Iris TypeFixed
  • ApertureF2.0
  • Illuminator

  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video

  • Main Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

  • Video Compression

    Main Stream: H.265/H.264/H.264+/H.265+

    Sub-Stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Region Of Interest (ROI)1 fixed region for main stream
  • Network

  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Plug-in required live view: IE 10+

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+

  • Image

  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)Digital WDR
  • SNR≥ 52 dB
  • Image EnhancementBLC, 3D DNR
  • Interface

  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Event

  • Basic EventMotion detection, video tampering alarm, exception
  • LinkageUpload to FTP, notify surveillance center, send email
  • General

  • Power

    12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

    PoE: (802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W

  • DimensionØ110 mm × 85.3 mm (Ø4.3" × 3.4")
  • Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • Approx. 320 g (0.7 lb.)
  • With Package WeightApprox. 556 g (1.2 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Approval

  • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67 (IEC 60529-2013)

Camere de supraveghere

Tip supraveghere video
:
  • Supraveghere IP
Rezolutie
:
  • 1920 x 1080 (1080P)
Infrarosu ( IR )
:
  • 30 m
Lentila
:
  • Lentila Fixa

Manual DS-2CD1323G0E-IC (Manual_DS-2CD1323G0E-IC.PDF, 53,807 Kb) [Download]
