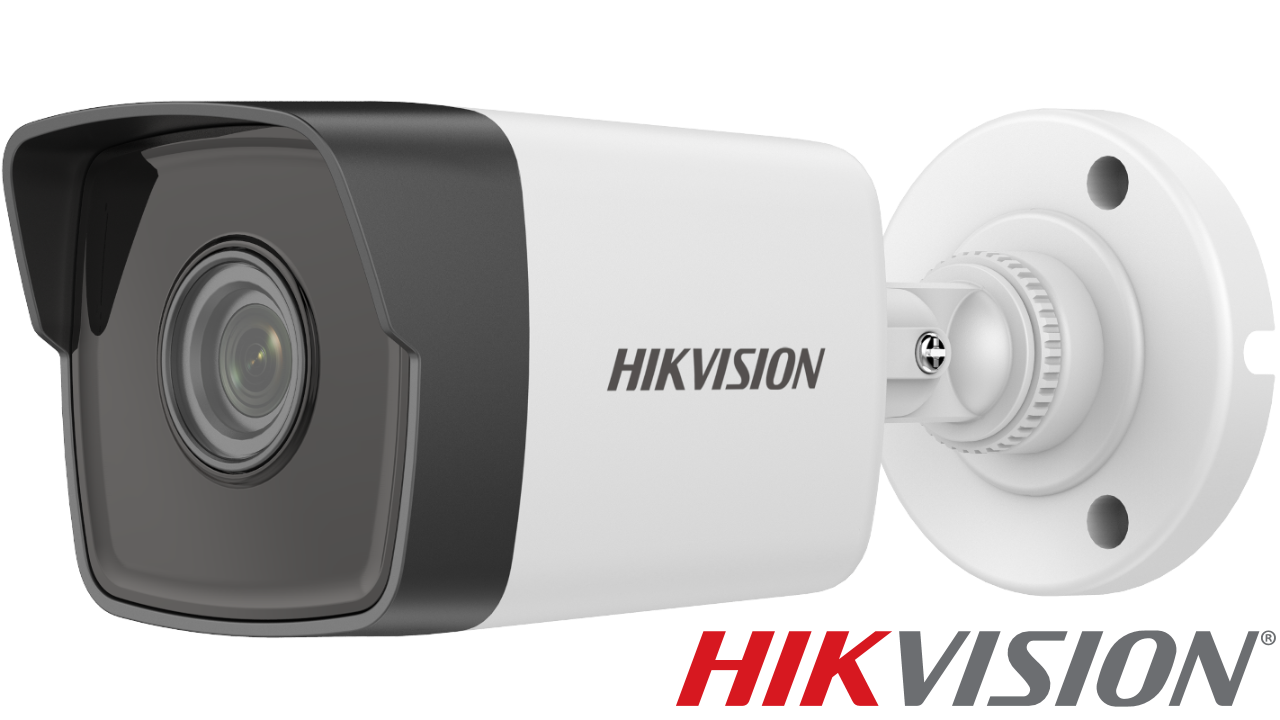

Camera de supraveghere video IP Hikvision DS-2CD1023G0-IUF, 2MP, IR 30m

Hikvision, Supraveghere IP
Scrie o recenzie
227 Lei
DS-2CD1023G0-IUF-2.8mm
+



Camera supraveghere Hikvision DS-2CD1023G0-IUF, 2 MP, IR 30m, 2.8 mm

Camera de supraveghere video Hikvision DS-2CD1023G0-IUF are un senzor de 2MP ce permite o rezolutie de 1980x1080 pixeli. Lentila fixa de 2.8mm permite un unghi de vizualizare de 114° grade.

Hikvision Turbo HD DS-2CD1023G0-IUF este este o camera supraveghere video cu un grad ridicat de protectie, IP67, ce ii permite sa functioneze optim in conditii de ploaie sau praf si la temperaturi cuprinse intre -40 °C si 60 °C.

Pentru o imagine clara si o conexiune stabila, camera supraveghere Hikvision DS-2CD1023G0-IUF ruleaza cel mai bine in combinatie cu DVR-urile Hikvision.



Tehnologia CMOS

Camerele de supraveghere Hikvision au si ele in tehnologia CMOS care ajuta la captarea imaginilor la o calitate superioara. Printre altele, caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Full HD

Nici un detaliu nu trece neobservat. Cu tehnologia FullHD poti surprinde imagini de o calitate cu pana la de 5 ori mai detaliata decat cu cea SD. De asemenea, suprafata care va fi acoperita de camera supraveghere va fi mult mai mare.

Pentru intrebari cu privire la produse sau configurarea unui sistem de supraveghere si al altor elemente necesare acestuia: sursa de alimentareconecticastocare, sau daca aveti nevoie de ajutor in alegerea produsului corect, va stam la dispozitie. Ne puteti scrie in pagina "Lasa un mesaj" sau ne puteti contacta la numarul de telefon 0348 88 00 21

Specificatii tehnice camera de supraveghere Hikvision DS-2CD1023G0-IUF:

         Camera

  • Image Sensor1/2.8" Progressive Scan CMOS

  • Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Day &NightIR cut filter
  • Wide Dynamic RangeDigital WDR
  • Lens

  • LensFixed lens, 2.8/4 mm
  • Auto-IrisNo
  • ApertureF2.0
  • FocusNo
  • FOV2.8mm: Horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° ;4 mm: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
  • Lens MountM12
  • Illuminator

  • IR RangeUp to 30 m
  • Wavelength850 nm
  • Video

  • Max. Resolution1920 × 1080
  • Video CompressionMain stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 8 Mbps
  • Smart Feature-Set

  • Region Of Interest1 fixed region for main stream and sub-stream
  • Image

  • Image EnhancementBLC, 3D DNR
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule
  • Main Stream Max. Frame Rate50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720);60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream Max. Frame Rate50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Network

  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator, and User
  • ClientiVMS-4200, Hik-Connect, iVMS-5200
  • Alarm TriggerMotion detection, video tampering alarm, illegal login
  • Web BrowserIE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
  • Interface

  • Communication Interface1 RJ45 self-adaptive Ethernet port
  • General

  • Firmware Version5.5.83
  • General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
  • MaterialFront cover: metal, back cover : plastic
  • DimensionsCamera: 67.8 × 66.2 × 177.6 mm (2.7" × 2.6" × 7") ;With package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.6")
  • Camera: Approx. 270 g (0.6 lb.) ;With package: Approx. 470 g (1 lb.)
  • Power Consumption And Current

    12 VDC: 0.4 A, max. 5 W

    PoE: (802.3af,36 V to 57 V), 0.2 A to 0.1 A, max. 6.5 W

  • Interface Protection

  • Ingress protection: IP66 (IEC 60529-2013)

Camere de supraveghere

Tip supraveghere video
:
  • Supraveghere IP
Rezolutie
:
  • 1920 x 1080 (1080P)
Infrarosu ( IR )
:
  • 30 m
Lentila
:
  • Lentila Fixa
Audio:
  • Audio incorporat

Manual DS-2CD1023G0-IUF (Manual_DS-2CD1023G0-IUF.pdf, 4,600 Kb) [Download]
