Camera supraveghere video IP Hikvision DS-2CD1323G0E-I 2MP, IR 30m

Hikvision, Supraveghere IP
Scrie o recenzie
270 Lei
DS-2CD1323G0E-I
+

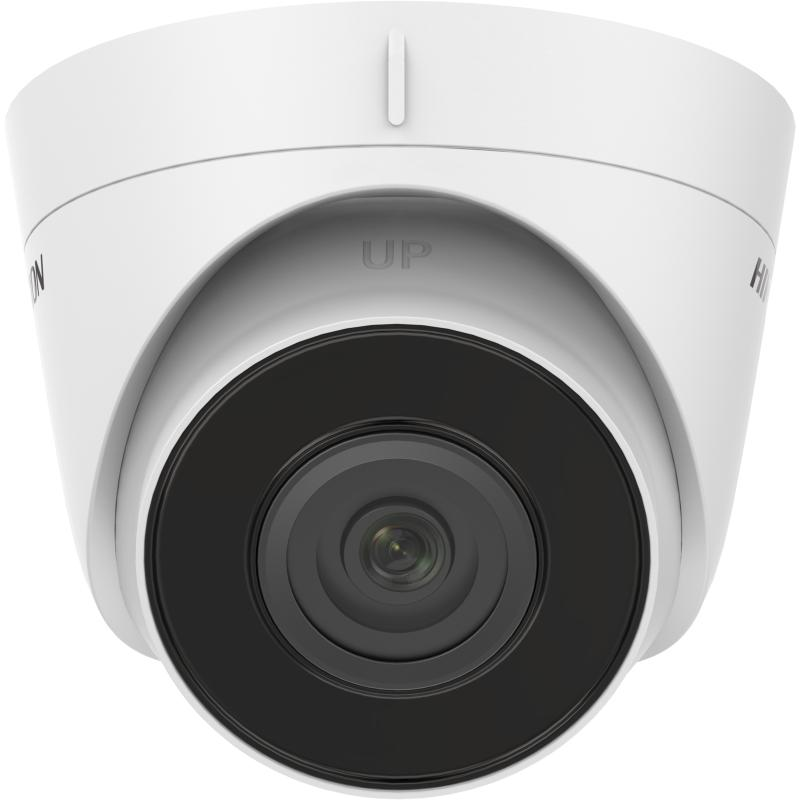

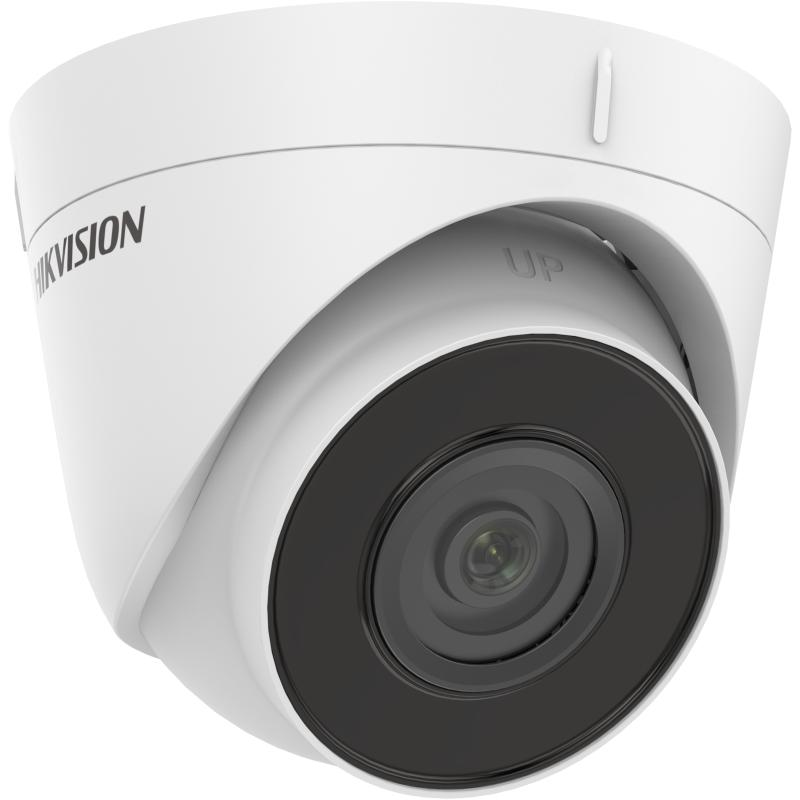

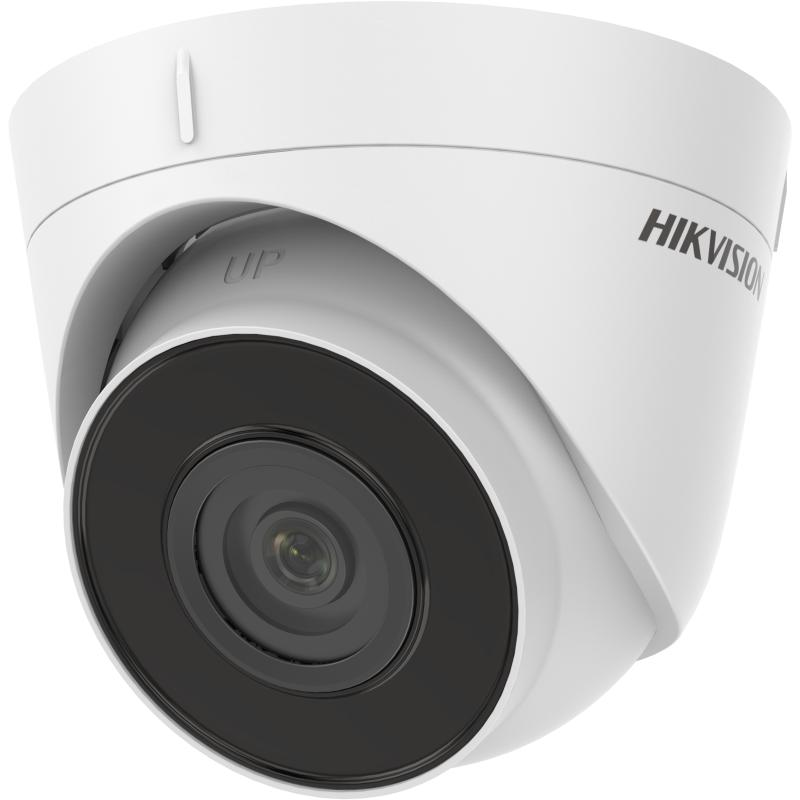

Camera supraveghere video IP 2MP, IR 30m, Hikvision DS-2CD1323G0E-I

Camera supraveghere Hikvision IP dome DS-2CD1323G0E-I-2.8mm de 2MP, vizualizare pe noapte de pana la 30 de metri si alimentare prin PoE. Fara slot de card.

Specificatii tehnice camera supraveghere video IP Hikvision DS-2CD1323G0-I :

Camera
Image Sensor: 1/2.8" progressive scan CMOS
Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter Speed: 1/3 s to 1/100, 000 s
Slow Shutter: Da
Auto-Iris: Nu
Day &Night: IR cut filter
Digital Noise Reduction: 3D DNR
WDR: Digital WDR
Angle Adjustment: Pan: 0° to 360°, tilt: 0°to 75°, rotation: 0° to 360°
Lens
Focal Length: 2.8 mm
Aperture: F2.0
Focus: Nu
FOV: horizontal FOV 114.5°, vertical FOV 62°, diagonal FOV 135.5
Lens Mount: M12
IR
IR Range: Up to 30 m
Wavelength: 850 nm
Compression Standard
Video Compression: Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG
H.264 Type: Baseline Profile/Main Profile/High Profile
H.264+: Main stream supports
H.265 Type: Main Profile
H.265+: Main stream supports
Video Bit Rate: 32 Kbps to 8 Mbps
Smart Feature-set
Region of Interest: 1 fixed region for main stream and sub-stream
Max. Resolution: 1920 × 1080
Main Stream
Max. Frame Rate:
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream
Max. Frame Rate:
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement: BLC, 3D DNR
Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch: Auto, scheduled
Network
Alarm Trigger: Motion detection, video tampering alarm, illegal login
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Firmware Version: 5.5.2
API: ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View: Up to 6 channels
User/Host: Up to 32 users
3 levels: Administrator, Operator and User
Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions: -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and Current: 12 VDC, 0.4 A, max: 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W
Ingress Protection: IP67
Material: Metal & Plastic

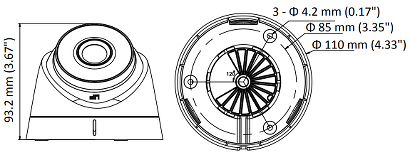

Dimension: Camera: Ø 110 mm × 93.2 mm ( 4.3" × 3.7")
With package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight: Camera: approx. 360 g (0.8 lb.)
With package: approx. 610 g (1.3 lb.)
Disponibilitate:
3-5 zile

Camere de supraveghere

Tip supraveghere video
:
  • Supraveghere IP
Rezolutie
:
  • 1920 x 1080 (1080P)
Infrarosu ( IR )
:
  • 30 m
Lentila
:
  • Lentila Fixa

Fisa tehnica (hik_11.pdf, 901 Kb) [Download]

Ghid de instalare (Quick-Start-Guid.pdf, 1,741 Kb) [Download]
