Camera supraveghere video Dahua IPC-T2A20-Z, IP, 2MP , IR 60m

Dahua, Supraveghere IP
Scrie o recenzie
  • Camera de supraveghere video IP.

  • Suport tehnic gratuit

  • Livrare rapida

  • Tel. 0348 88 00 21
448 Lei
IPC-T2A20-Z
+

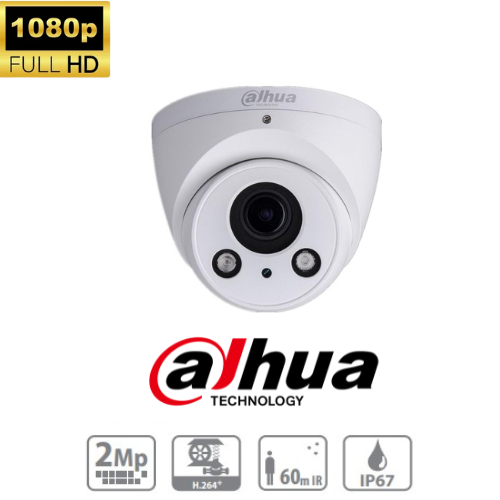

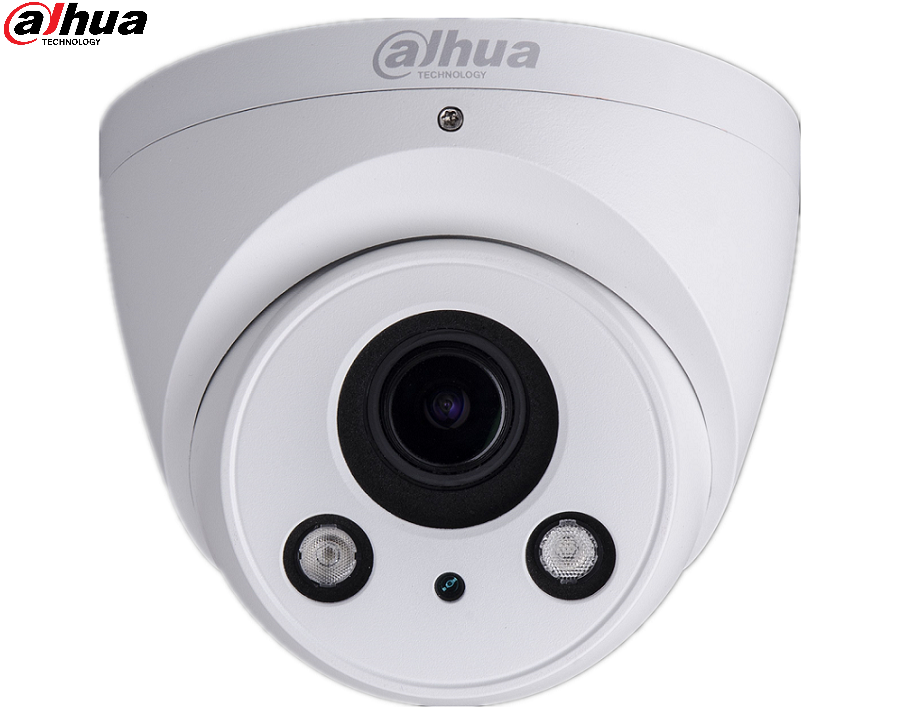

Camera supraveghere video IP, 2MP, IR 60m, Dahua IPC-T2A20-Z

DAHUA IPC-T2A20-Z , camera de supraveghere video IP, are o rezolutie de 2MP@25fps, compresie H.264+/H.264, senzor imagine 1/2.9"CMOS, lentila motorizata (reglabila software) 2.7-12mm (deschidere orizontala reglabila intre 95-34grd), proiector IR pentru maxim 60m, inregistrare locala pe card Micro SD (max. 128GB, neinclus) si inregistrare in retea (NVR/DVR, NAS, PC), alimentare 12Vcc sau PoE, protectie la intemperii IP67, temperatura functionare -30+60grdC, carcasa dome (metal).

Camera IP DAHUA IPC-T2A20-Z - rezolutie Full HD

  • rezolutie camera - 2MP 1920(H) x 1080(V) si viteza codare 25fps
  • senzor imagine - 1/2.9"CMOS rezolutie 2MP
  • inregistrare - locala pe card Micro SD (max. 128GB, neinclus) si in retea (NVR/DVR, NAS, PC),
  • conectare - cablata RJ-45 (10/100Base-T)
  • proiector IR - pentru maxim 60m
  • lentila motorizata (reglabila electric) - distanta focala 2.7-12mm (unghi deschidere pe orizontala reglabil continuu intre 95-34grd)
  • compresie video - H.264+/H.264
  • suporta 2 fluxuri video (dual streaming) pentru inregistrare si transmisie in retea
  • aplicatii pentru dispozitive mobile - iOS, Android
  • functionare zi-noapte - filtru IR autoretractabil (IRC - InfraRed Cut)
  • alimentare 12Vcc si PoE
  • clasa protectie intemperii - IP67

Specificatii tehnice camera supraveghere video IP Dahua IPC-T2A20-Z :

Camera de supraveghere video, Dahua IPC-T2A20-Z
Senzor 1/2.9" 2 Megapixeli Progressive CMOS
Pixeli efectivi 1920(H) x 1080(V)
RAM/ ROM 128MB/ 16MB
Sistem scanare Progresiv
Iluminare minima 0.01Lux/F1.4 (Color), 0 Lux IR pornit
Raport S/N >50dB
Day/Night Auto(ICR)/ Color/ A/N
Gain Control Auto/ Manual
White Balance Auto/ Zi insorita/ Noapte/ Exterior/ Manual
Backlight Compensation BLC/ HLC/ DWDR
Detecție de mișcare On/ Off, 4 zone dreptunghiulare
Region of Interest On/ Off, 4 zone
Zoom digital 16x
Flip 0°/ 90°/ 180°/ 270°
Mirror On/ Off
Zone private 4 zone dreptunghiulare
Distanta maxima IR Smart IR 2 LED uri, maxim 60m
Lentila camera de supraveghere video IPC-T2A20-Z
Distanta focala 2.7 ~ 12mm
Unghi vizualizare H: 95° ~ 34°, V: 52° ~ 21°
Diafragma F1.4
Control Focus Motorizat
Tip lentila Varifocala, motorizata
Video
Compresie H.264+/ H.264
Capacitate streaming 2 streamuri
Rezolutie 2M(1920x1080)/ 720P(1280x720)/ D1(704x576)/ CIF(352x288)
FPS Main Stream: 2M (1 ~ 25fps)
Sub Stream: D1/ CIF (1 ~ 25fps)
Control Bit Rate CBR/ VBR
Bit Rate H.264: 24K ~ 8192kbps
Retea
Internet RJ-45 (10/100Base-T)
Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/IPv6, QoS, UPnP, NTP
Compatibilitate ONVIF, PSIA, CGI
Metoda streaming Unicast/ Multicast
Numar utilizatori Maxim 10/ 20 utilizatori logati simultan
Stocare NAS
PC local
MicroSD 128GB
Management software Smart PSS, DSS, Easy4ip
Smart Phone iPhone, iPad, Android
Interfete auxiliare
Stocare Slot MicroSD, maxim 128GB
General
Alimentare DC12V, PoE (802.3af)
Consum <9.8W
Mediu functionare -30°C ~ 60°C, umiditate relativa <95%
Standard protectie IP67

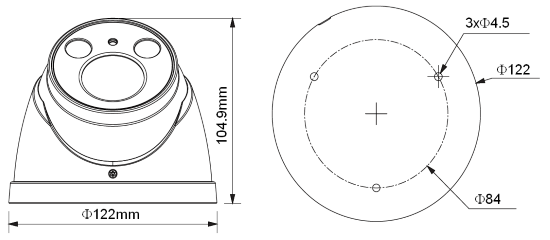

Dimensiuni Ø122mm x 104.9mm
Greutate 0.59Kg
Carcasa Metal
Disponibilitate:
3-5 zile

Camere de supraveghere

Tip supraveghere video
:
  • Supraveghere IP
Rezolutie
:
  • 1920 x 1080 (1080P)
Infrarosu ( IR )
:
  • 60 m
Lentila
:
  • Zoom Motorizat
Caracteristici speciale:
  • PoE
Stocare Card:
  • SD-CARD

Datasheet Dahua IPC-T2A20-Z (IPC-T2A20-Z.pdf, 619 Kb) [Download]

No reviews found
