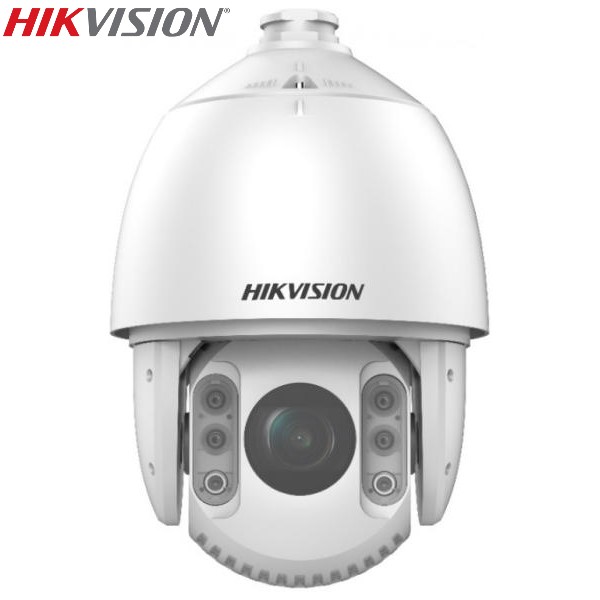

Camera supraveghere Hikvision DS-2DE7225IW-AE(S5)Speed Dome, 2MP, Darkfigher IR 200m

Hikvision, Supraveghere IP
Scrie o recenzie
2,156 Lei
DS-2DE7225IW-AE(S5)
+

Camera supraveghere Hikvision DS-2DE7225IW-AE(S5)Speed Dome, 2MP, Darkfigher IR 200m

Pentru o imagine clara si o conexiune stabila, camera supraveghere Hikvision DS-2CD1023G0-IUF ruleaza cel mai bine in combinatie cu DVR-urile Hikvision.

Darkfighter

Obiectivele cu tehnologia Darkfighter folosesc o lentila asferica ce reduce eficient aberatiile de imagine prezente in toate camerele conventionale cu lentile sferice. Lentila asferica are o suprafata libera, lucru ce imbunatateste transmisia luminii si, implicit, imbunatateste luminozitatea imaginii ce ajunge la camera de supraveghere in conditii de luminozitate scazuta.

Tehnologia CMOS

Camerele de supraveghere Hikvision au si ele in tehnologia CMOS care ajuta la captarea imaginilor la o calitate superioara. Printre altele, caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Full HD

Nici un detaliu nu trece neobservat. Cu tehnologia FullHD poti surprinde imagini de o calitate cu pana la de 5 ori mai detaliata decat cu cea SD. De asemenea, suprafata care va fi acoperita de camera supraveghere va fi mult mai mare.

Pentru intrebari cu privire la produse sau configurarea unui sistem de supraveghere si al altor elemente necesare acestuia: sursa de alimentareconecticastocare, sau daca aveti nevoie de ajutor in alegerea produsului corect, va stam la dispozitie. Ne puteti scrie in pagina "Lasa un mesaj" sau ne puteti contacta la numarul de telefon 0348 88 00 21

Specificatii camera supraveghere Hikvision DS-2DE7225IW-AE(S5):

  • Camera

  • Image Sensor: 1/2.8" progressive scan CMOS
  • Min. Illumination: 0 Lux with IR,color: 0.005Lux @ (F1.6,AGC ON); B/W: 0.001Lux @ (F1.6,AGC ON)
  • Shutter Speed: 1/1s-1/30000s
  • Slow Shutter: yes
  • Focussemi-auto;manual;auto
  • Day & Night: ICR
  • Day/Night Switch: day, night, auto, scheduled-switch
  • BLC: yes
  • WDR120 dB WDR
  • HLC: yes
  • 3D DNR: yes
  • Defog: yes
  • EIS: yes
  • Regional Exposure: yes
  • Regional Focus: yes
  • Image Settings: saturation;brightness;contrast;sharpness
  • White Balance: MWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB;Locked WB
  • Digital Zoom: 16x
  • Optical Zoom: 25x
  • Privacy Mask: up to 24 masks;mosaic mask ;mask color configurable;polygon region
  • SNR>52dB
  • Lens

  • Focal Length: 4.8 mm to 120 mm, 25× Optical
  • Zoom Speed: approx. 3.6 s
  • FOV

    Horizontal field of view: 57.6° to 2.5° (wide-tele),

    Vertical field of view: 34.4° to 1.4° (wide-tele),

    Diagonal field of view: 64.5° to 2.9° (wide-tele)

  • ApertureF1.6
  • Illuminator
  • IR Distance: 200 m
  • PTZ

  • Movement Range (Pan)360°
  • Movement Range (Tilt)-15° to 90° (auto flip)
  • Pan Speed: pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
  • Tilt Speed: tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
  • Proportional Zoom: yes
  • Presets: 300
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans
  • Power-Off Memory: yes
  • Park Action: preset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan
  • 3D Positioning: yes
  • PTZ Status Display: yes
  • Preset Freezing: yes
  • Scheduled Task: preset;auto scan;random scan;frame scan;patrol scan;pattern scan;panorama scan;tilt scan;dome reboot;dome adjust;aux output
  • Video

  • Max. Resolution : 1920 × 1080
  • Stream Type: main stream;sub-stream;third stream
  • Main Stream

    50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720);

    60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

  • Sub-Stream

    50Hz: 25fps (704 × 576, 640 × 480, 352 × 288);

    60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

  • Third Stream

    50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);

    60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

  • Video Compression: H.265;H.264;MJPEG
  • Video Bit Rate: 32 kbps to 16384 kbps
  • H.264 Type: Baseline Profile;Main Profile;High Profile;baseline profile;main profile;high profile
  • H.265 Type: Main Profile;main profile
  • H.264+: yes
  • H.265+: yes
  • SVC: yes
  • Audio

  • Audio Compression: G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
  • Audio Bit Rate: MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps;192kbps
  • Audio Sampling Rate: MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
  • Environment Noise Filtering: yes
  • Smart Features

  • Face Capture: yes
  • Basic Event: audio exception;motion detection;alarm input;alarm output;video tampering alarm;exception
  • Smart Event: intrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection
  • Smart Tracking: manual tracking;event tracking;auto-tracking
  • Smart Record: ANR;Dual-VCA
  • Alarm Linkage: smart tracking;preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP
  • Network

  • Network Storage: NAS (NFS, SMB/ CIFS); ANR;ANR
  • Protocols: IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
  • API: ISAPI;Hikvision SDK;Hik-Connect;ONVIF (Profile S, Profile G, Profile T);ISUP
  • Simultaneous Live View: 20
  • User/Host: 32
  • Smooth Streaming: yes
  • Security Measures: Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
  • Client: iVMS-4200;Hik-Connect
  • Web Browser: IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+
  • Interface

  • Communication Interface: RJ45, self-adaptive 10M/100M Ethernet port
  • On-Board Storage: support microSD/microSDHC/microSDXC cards;up to 256 GB
  • Alarm Input: 2 alarm inputs
  • Alarm Output: 1 alarm output
  • Audio Input: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
  • Audio Output: 1 audio output, line level, impedance: 600 Ω
  • General

  • Power: 24 VAC, Hi-PoE
  • Power Consumption And Current: Max. 42 W, including max. 10 W for heater and max. 18 W for supplement light
  • Operating Conditions: humidity lower than 90%RH ;temperature: -30℃ to 65℃ (-22°F to 149°F)
  • Reset: yes
  • Demist: Demist by heating the glass
  • Material: ADC 12, PC, PC+10%GF
  • DimensionsΦ 220 mm × 353.4 mm (Φ 8.66" × 13.91")
  • Approx. 5 kg (11.02 lb.)
  • Approval

  • Protection: IP66 Standard, IK10 (excluding glass window) , 6000V Lightning Protection, Surge Protection and Voltage Transient Protection



Camere de supraveghere

Tip supraveghere video
:
  • Supraveghere IP
Rezolutie
:
  • 1920 x 1080 (1080P)
Infrarosu ( IR )
:
  • 200m
Audio:
  • Audio incorporat
Stocare Card:
  • SD-CARD

Manual instalare DS-2DE7225IW-AE(S5) (Manual_instalare_DS-2DE7225IW-AE_S5_.PDF, 27,512 Kb) [Download]
