Camera IP WI-FI Mini PTZ, 4 MP, IR 50M, HIKVISION DS-2DE3A404IW-DE-W

1,032 Lei
DS-2DE3A404IW-DE-W
+
Suna-ma!

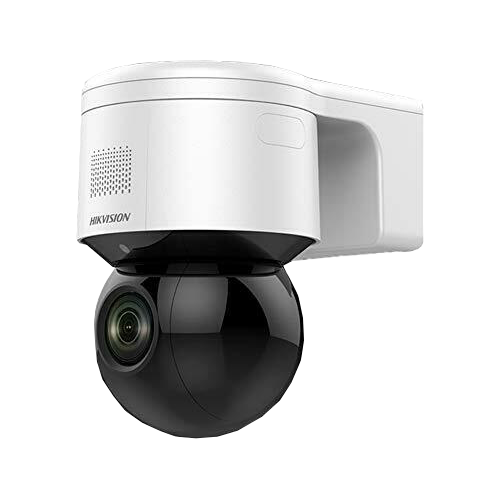

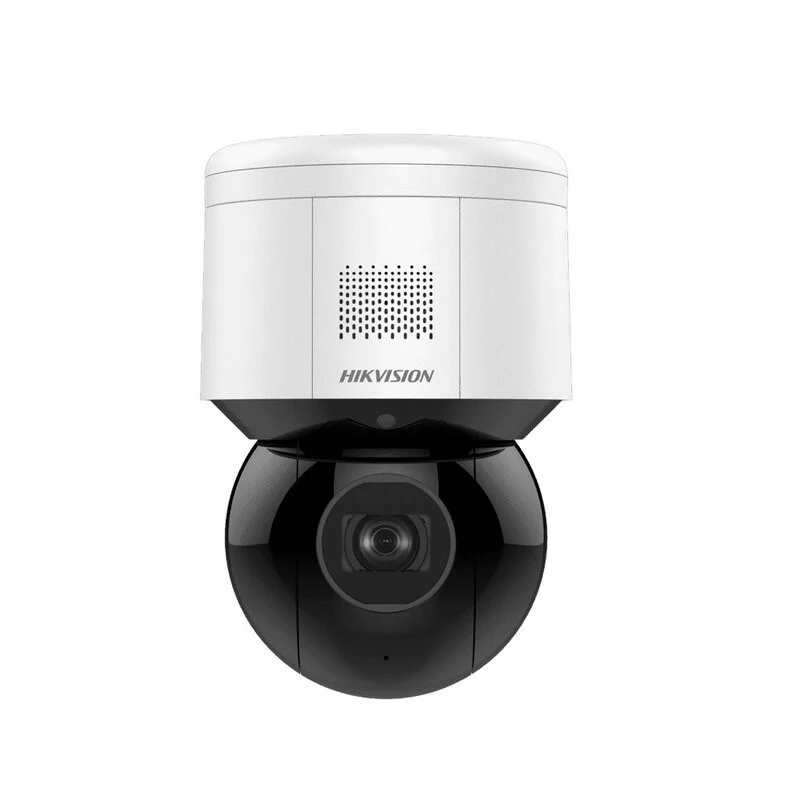

Camera IP Wi-fi Mini PTZ, 4 MP, IR 50M, HIKVISION DS-2DE3A404IW-DE-W

Camera de supraveghere video PTZ IP Hikvision cu  microfon, speaker si iluminat averteizare cu flash integrat si rezolutie 4MP (2560×1440)@25fps, compresie H.265+/H.265/H.264, lentila zoom motorizat 2.8~12mm, unghi vizualizare 96.7° - 31.6°, Wi-Fi integrat , distanta IR max. 50m, stocare SD card max. 256Gb

Camera de supraveghere video IP Hikvision DS-2DE3A404IW-DE-W permite conectare atat pe Wi-fi 2.4Ghz dar si conectare pe cablu, suporta alimentare POE 802.3at. Stocare se poate face pe un SD-Card de 256 Gb ( neinclus)

Specificatii tehnice camera supraveghere IP PTZ Hikvision DS-2DE3A404IW-DE-W

Lens

  • FOVHorizontal field of view: 96.7° to 31.6° (wide-tele) ,Vertical field of view: 51.1° to 17.7° (wide-tele) ,Diagonal field of view: 115.1° to 36.3° (wide-tele)
  • Zoom SpeedApprox. 2 s (optical lens, wide-tele)
  • Working Distance10 mm to 1500 mm (wide-tele)
  • Aperture RangeF1.5 to F2.7
  • Focal Length2.8 to 12 mm, 4 × optical zoom


  • Image EnhancementBLC, HLC, defog, 3D DNR, regional exposure, regional focus
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution2560 × 1440
  • Main Stream50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Third Stream50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) ,60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Wi-Fi

  • ProtocolDSSS/OFDM
  • Channel Bandwidth20/40MHz
  • Security64/128-bit WEP,WPA/WPA2,WPS
  • Wireless Range50 m
  • Wireless StandardsIEEE 802.11 b/g/n
  • Frequency Range2.4 to 2.483GHz
  • Transfer Rates11b:11Mbps; 11g:54Mbps; 11n:150Mbps

Network

  • Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. ,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
  • Web BrowserIE 8-11,Chrome 31+, Firefox 30+, Microsoft Edge 41.16299.726.0
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering

Interface

  • Alarm Output1-ch alarm output
  • Alarm Input1-ch alarm input
  • Audio Input1-ch audio input
  • Audio Output1-ch audio output
  • Network Interface1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3 at, class4)

Compression Standard

  • H.264+Support
  • H.265+Support
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
  • H.265 TypeMain Profile
  • Video Bitrate32 kbps to 16384 kbps
  • Audio CompressionG.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
  • Audio Bitrate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2)
  • SVCSupport

Camera Module

  • Image Sensor1/2.8" progressive scan CMOS
  • Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
  • White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
  • Shutter Time1/1 s to 1/30,000 s
  • Day & NightIR Cut Filter
  • Digital Zoom16×
  • Privacy Mask24 programmable privacy masks, mask color configurable
  • Focus ModeAuto/Semi-automatic/Manual
  • WDR120 dB WDR

Supplement Light

  • IR DistanceUp to 50 m

PTZ

  • Movement Range (Pan)0° to 350°
  • Pan SpeedConfigurable, from 0.1°/s to 60°/s. Preset speed: 65°/s
  • Movement Range (Tilt)0° to 90°
  • Tilt SpeedConfigurable, from 0.1°/s to 50°/s. Preset speed: 60°/s
  • Proportional ZoomSupport
  • Presets300
  • Patrol ScanNo
  • Pattern ScanNo
  • Power-Off MemorySupport
  • Park ActionPreset
  • PTZ Status DisplayON/OFF
  • Preset FreezingSupport
  • Scheduled TaskPreset/Dome Reboot/Dome Adjust/Aux output

Smart Features

  • Basic Event DetectionMotion detection, video tampering detection, alarm input, alarm output, exception (HDD full, HDD error, illegal login, network disconnected, IP address conflict)
  • Smart DetectionFace detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, object removal detection, unattended baggage detection, audio exception detection
  • Smart TrackingANR (Automatic Network Replenishment), dual-VCA
  • ROIMain stream, sub-stream, and third stream respectively support 4 fixed areas, and dynamic face tracking.

General

  • MaterialADC12 + PC

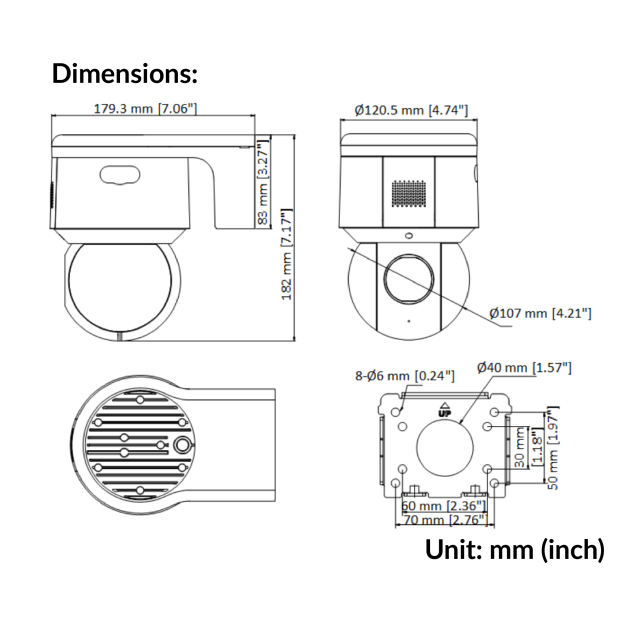

  • Dimensions179.3 mm × 120.5 mm × 182 mm (7.06" × 4.74" × 7.16")
  • WeightApprox. 1.125 kg (2.48 lb.)
  • Protection LevelIP66 standard, 6000V lightning protection, surge protection and voltage transient protection
  • Power12 VDC, PoE 802.3at, max. 15 W (including max. 2.4 W for IR, 1.2 W for white light flashing)
  • Working Temperature-30°C to 60°C (-22°F to 140°F)
  • Working Humidity≤ 90%

Specificatii tehnice (DS-2DE3A404IW-DE_W.pdf, 791 Kb) [Download]
