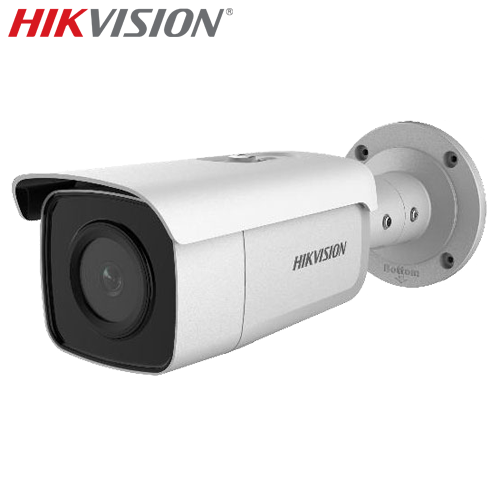

Camera de supraveghere video IP, 6MP, IR 50m, Hikvision DS-2CD2T65FWD-I5

Hikvision, Supraveghere IP
576 Lei
DS-2CD2T65FWD-I5-2.8mm
+
Suna-ma!

Camera de supraveghere video IP, 6MP, IR 50m, Hikvision DS-2CD2T65FWD-I5

HIKVISION DS-2CD2T65FWD-I5 este o camera de supraveghere video digitala IP, ce are o rezolutie maxima de 6 Megapixeli, oferita de un senzor de imagine 1/2" Progressive scan CMOS.

Camera de supraveghere video IP Hikvision DS-2CD2T65FWD-I5 de 6 MP, ofera imagini de inalta calitate si rezolutie de 3072 × 2048 pixeli , dispune de lentila fixa 2.8 mm cu unghi larg de vizualizare.

Poate oferi imagini pe timpul noptii sau in conditii de iluminare scazuta, de la o distanta de pana la 50 metri, DS-2CD2T65FWD-I5 fiind dotata cu un iluminator in infrarosu IR.

Puteti alimenta camera atat dintr-o sursa de alimentare, insa aceasta ofera si functia de alimentare prin cablul de retea (POE), ideala pentru folosirea impreuna cu un NVR ce include un switch POE.

Functia WDR deschide umbrele si intuneca zonele foarte luminoase, astfel beneficiem de imagini cu mai multe detalii si atunci cand iluminarea este dificila.

Camera HIKVISION DS-2CD2T65FWD-I5 are un filtru IR Mecanic autoretractabil ce filtreaza lumina in infrarosu pe timpul zilei, pentru a evita anumitele defecte de afisare a culorilor, iar pe timpul noptii acesta este retras pentru a permite luminii in infrarosu sa treaca, imbunatatind vizibilitatea camerei in modul alb/negru.

Functia BLC(compensarea luminii din spate) cu care este dotata camera de supraveghere video HIKVISION DS-2CD2T65FWD-I5, permite ca obiectele aflate pe un fundal foarte luminos, de exemplu, in dreptul unei ferestre sau a unei usi de acces, care in mod normal apar foarte intunecate, sa fie vizibile, insa fundalul devine suprasaturat (foarte alb).

Specificatii tehnice camera de supraveghere video IP Hikvision DS-2CD2T65FWD-I5:

Camera
Image Sensor:   1/2" Progressive Scan CMOS
Signal System:   PAL/NTSC
Min. Illumination:   Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
Shutter time:   1/3 s to 1/100,000 s
Slow shutter:   Support
Lens:   2.8 mm, horizontal FOV: 99°, vertical FOV: 61°, diagonal FOV: 128°
Adjustment Range:   Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Day& Night:   IR Cut Filter
Wide Dynamic Range:   120 dB
Digital noise reduction:   3D DNR
Focus:   Fixed
Compression Standard
Video Compression:   H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:   32Kbps~16Mbps
Triple Streams:   Yes
Max. Image Resolution:   3072 x 2048
Sub Stream:   50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Frame Rate:   50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Third Stream:   50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Image Enhancement:   BLC/3D DNR/HLC
ROI:   Support 1 fixed region for main stream and sub stream separately
Day/Night Switch:   Day/Night/Auto/Schedule
Network
Network Storage:   microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols:   TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function:   One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility:   ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface:   1 RJ45 10M / 100M Ethernet interface
On-board storage:   Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:   Yes
Smart Feature-set
Behavior Analysis:   Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection:   Cross a pre-defined virtual line
Intrusion Detection:   Enter and loiter in a pre-defined virtual region
Unattended Baggage:   Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:   Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections:   Scene change detection
Recognition:   Face Detection
General
Operating Conditions:   -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Consumption:   12 VDC, 0.5 A, max: 8 W
PoE: (802.3af, 36 VDC to 57 VDC), 0.4 A to 0.2 A, max: 9.5 W
Weather Proof:   IP67
IR Range:   -I5: up to 50 m
Dimensions:   Camera: Φ105 × 289.5 mm (4.1″ × 11.4″)
Weight:   Camera: 1000 g (2.2 lb.)
With package: 1500 g (3.3 lb.)
Disponibilitate:
3-5 zile

Camere de supraveghere

Tip supraveghere video :
  • Supraveghere IP
Rezolutie :
  • 3072x2048 (6MP)
Infrarosu ( IR ) :
  • 50 m
Lentila :
  • Lentila Fixa
Caracteristici speciale:
  • PoE
Stocare Card:
  • SD-CARD

Nici o postare găsită

Posteaza recenzie

Fisa tehnica camera de supraveghere IP Hikvision DS-2CD2T65FWD-I5 (DS-2CD2T65FWD-I5'8.pdf, 1,070 Kb) [Download]
