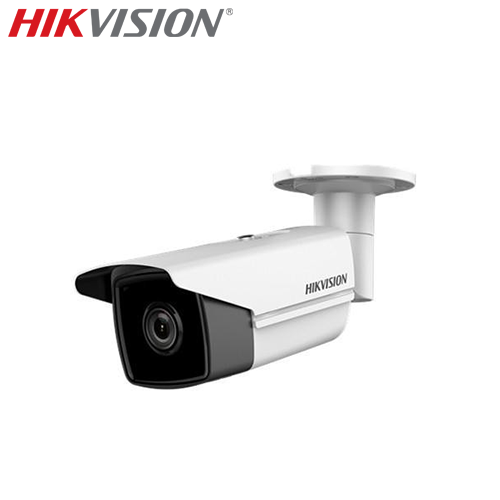

Camera de supraveghere video IP Hikvision DS-2CD2T45FWD-I5, 4MP, IR 50m

Hikvision, Supraveghere IP
Scrie o recenzie
577 Lei
DS-2CD2T45FWD-I5-2.8mm
+

Camera de supraveghere video IP, 4MP, IR 50m, Hikvision DS-2CD2T45FWD-I5

HIKVISION DS-2CD2T45FWD-I5 este o camera de supraveghere video digitala IP, ce are o rezolutie maxima de 4 Megapixeli, oferita de un senzor de imagine 1/2.5" Progressive scan CMOS.Camera de supraveghere video IP Hikvision DS-2CD2T45FWD-I5 de 4 MP, ofera imagini de inalta calitate si rezolutie de 2688 × 1520 pixeli , dispune de lentila fixa 2.8 mm cu unghi larg de vizualizare.

Poate oferi imagini pe timpul noptii sau in conditii de iluminare scazuta, de la o distanta de pana la 50 metri, DS-2CD2T45FWD-I5 fiind dotata cu un iluminator in infrarosu cu LED-uri IR.Puteti alimenta camera atat dintr-o sursa de alimentare, insa aceasta ofera si functia de alimentare prin cablul de retea (POE), ideala pentru folosirea impreuna cu un NVR ce include un switch POE.Functia WDR deschide umbrele si intuneca zonele foarte luminoase, astfel beneficiem de imagini cu mai multe detalii si atunci cand iluminarea este dificila.

Camera HIKVISION DS-2CD2T45FWD-I5 are un filtru IR Mecanic autoretractabil ce filtreaza lumina in infrarosu pe timpul zilei, pentru a evita anumitele defecte de afisare a culorilor, iar pe timpul noptii acesta este retras pentru a permite luminii in infrarosu sa treaca, imbunatatind vizibilitatea camerei in modul alb/negru.Functia BLC(compensarea luminii din spate) cu care este dotata camera de supraveghere video HIKVISION DS-2CD2T45FWD-I5, permite ca obiectele aflate pe un fundal foarte luminos, de exemplu, in dreptul unei ferestre sau a unei usi de acces, care in mod normal apar foarte intunecate, sa fie vizibile, insa fundalul devine suprasaturat (foarte alb).

Tehnologia CMOS

Camerele de supraveghere Hikvision au si ele in tehnologia CMOS care ajuta la captarea imaginilor la o calitate superioara. Printre altele, caracteristicile importante ale sistemelor supraveghere cu CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

QuadHD

Nu lasa nici un detaliu sa treaca neobservat. Cu tehnologia QuadHD poti surprinde imagini de o calitate mai buna, cu pana la 4 ori mai detaliate decat standardul HD. De asemenea, suprafata pe camera de supraveghere o va acoperi va fi mult mai mare.





Specificatii tehnice camera de supraveghere video IP Hikvision DS-2CD2T45FWD-I5:

Camera

Image Sensor: 1/2.5" Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: 2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°
4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°
6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°
8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°
12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°
Lens Mount: M12
Adjustment Range: Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Day& Night: IR Cut Filter
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Focus: Fixed

Compression Standard

Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile: Main Profile/High Profile
Video bit rate: 32Kbps~16Mbps
Triple Streams: Yes


Max. Image Resolution: 2688 × 1520
Sub Stream: 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Frame Rate: 50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
Third Stream: 50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement: BLC/3D DNR/ROI/HLC
Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI: Support 1 fixed region for main stream and sub stream separately
Day/Night Switch: Day/Night/Auto/Schedule

Network

Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G), ISAPI

Interface

Communication Interface: 1 RJ45 10M / 100M Ethernet interface
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes

Smart Feature-set

Behavior Analysis: Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections: Scene change detection
Recognition: Face Detection

General

Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: I5:
12 VDC, 0.7 A, max. 7.5 W
PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 9.5 W
I8:
12 VDC, 1 A, max: 11.5 W
PoE (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.9 W
Weather Proof: IP67
IR Range: -I5: up to 50 m; -I8: up to 80 m
Dimensions: Camera: Φ104.8 mm × 299.7 mm (Φ4.1" × 11.8")
Package: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight: Camera: 1200 g (2.7 lb.)
Disponibilitate:
3-5 zile

Camere de supraveghere

Tip supraveghere video
:
  • Supraveghere IP
Rezolutie
:
  • 2688x1520 (4MP)
Infrarosu ( IR )
:
  • 50 m
Lentila
:
  • Lentila Fixa
Caracteristici speciale:
  • PoE
Stocare Card:
  • SD-CARD

Fisa tehnica camera de supraveghere IP Hikvision DS-2CD2T45FWD-I5 (DS-2CD2T45FWD-I5_I8_Datasheet_V5.5.80_20190507.pdf, 1,263 Kb) [Download]
