Camera de supraveghere Hikvision DS-2CD2163G2-IU, 6MP, IR 30m

Hikvision, Supraveghere HD CVI, Supraveghere AHD, Supraveghere HD TVI, Supraveghere IP
Scrie o recenzie
620 Lei
+

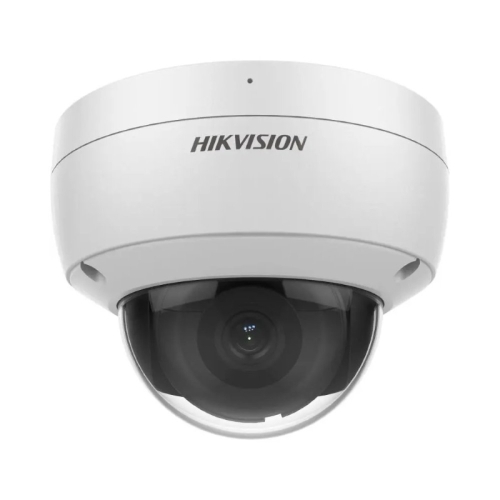

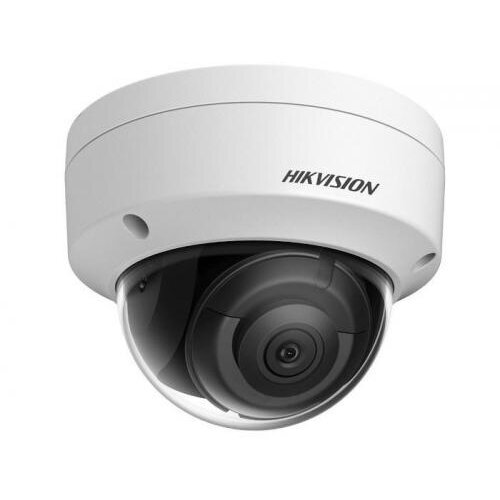

Camera supraveghere ColorVU,2MP, Hikvision DS-2CD2163G2-IU

DS-2CD2163G2-IU are o rezolutie maxima de 3200 × 1800 pixeli, cu o lentila de 2.8mm fixa si care, reuseste sa redea imagini clare pe timpul noptii la o distanta de pana la 30m.

Camera de supraveghere Hikvision DS-2CD2163G2-IU beneficiaza de tehnologia Back Light Compensation. Aceasta imparte imaginea in 2 zone cu expuneri diferite pentru fiecare ajutand la optimizarea imaginii evitand expunerea mare sau insuficienta a luminii. De asemenea camera supraveghere poate fi supusa unor lumini puternice, reflectoare, lanterne, faruri. Cand acest lucru se intampla se activeaza functia Highlight Compensation pentru reducerea luminilor orbitoare.

Pentru o imagine clara si o conexiune stabila, camera supraveghere Hikvision DS-2CD2163G2-IU ruleaza cel mai bine in combinatie cu DVR-urile Hikvision.

Tehnologia CMOS

Camerele de supraveghere Hikvision au si ele in tehnologia CMOS care ajuta la captarea imaginilor la o calitate superioara. Printre altele, caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

QuadHD+

Nu lasa nici un detaliu sa treaca neobservat. Cu tehnologia QuadHD+ poti surprinde imagini de o calitate mai buna, cu pana la 4 ori mai detaliate decat standardul HD. De asemenea, suprafata care va fi acoperita va fi mult mai mare.



Pentru intrebari cu privire la produse sau configurarea unui sistem de supraveghere si al altor elemente necesare ale acestuia : sursa de alimentareconecticastocare, sau daca aveti nevoie de ajutor in alegerea produsului corect, va stam la dispozitie. Ne puteti scrie in pagina "Lasa un mesaj" sau ne puteti contacta la numarul de telefon 0348 88 00 21

Caracteristici principale camera Turbo HD Hikvision DS-2CD2163G2-IU:

Camera

  • Image Sensor1/2.8" Progressive Scan CMOS
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • P/NP/N
  • Wide Dynamic Range120 dB
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

  • Lens TypeFixed focal length, 2.8 and 4 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°

    4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°

  • Lens MountM12
  • Iris TypeFixed
  • ApertureF1.6

DORI

  • DORI

    2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m

    4 mm: D: 90 m, O: 35 m, R: 18 m, I: 9 m

Illuminator

  • Supplement Light TypeIR
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • IR RangeUp to 30 m

Video

  • Max. Resolution3200 × 1800
  • Main Stream

    50 Hz: 20 fps (3200 × 1800)

    25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz: 20 fps (3200 × 1800)

    30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub Stream

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

  • Third Stream

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    *Third stream is supported under certain settings.

  • Video Compression

    Main stream: H.265/H.264/H.264+/H.265+

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

    *Third stream is supported under certain settings.

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main stream supports
  • H.265+Main stream supports
  • Bit Rate ControlCBR/VBR
  • Scalable Video Coding (SVC)

    H.264 and H.265 encoding



  • Region Of Interest (ROI)1 fixed region for main stream and sub-stream

Audio

  • Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise FilteringYes

Network

  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web Browser

    Plug-in required live view: IE 10, IE 11

    Plug-in free live view : Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+


  • Image Parameters SwitchYes
  • Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR
  • SNR≥ 52 dB

Interface

  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Built-In MicrophoneYes
  • Hardware ResetYes

Event

  • Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart EventLine crossing detection, intrusion detection, human and vehicle targets classification
  • Face DetectionYes

General

  • Linkage MethodUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
  • Camera Material

    Aluminum alloy body

    Bubble: plastic

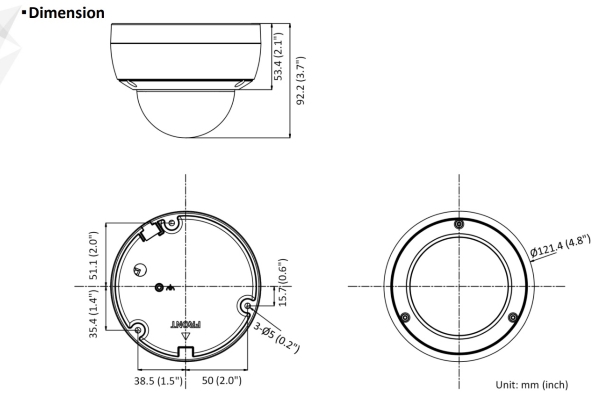

  • Camera DimensionØ121.4 mm × 92.2 mm (Ø4.8" × 3.7")
  • Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • Camera Weight

    Approx. 550 g (1.2 lb.)





  • With Package WeightApprox. 800 g (1.8 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Web Client Language

    33 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

  • General FunctionAnti-flicker, heartbeat, password reset via email, pixel counter
  • Firmware VersionV5.5.113
  • Software ResetYes
  • Power Consumption And Current

    12 VDC, 0.5 A, max. 6 W

    PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W

  • Power Supply

    12 VDC ± 25%, reverse polarity protection

    PoE: 802.3af, Class 3

  • Power InterfaceØ5.5 mm coaxial power plug

Approval

  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
Disponibilitate:
3-5 zile

Camere de supraveghere

Tip supraveghere video
:
  • Supraveghere HD CVI
  • Supraveghere AHD
  • Supraveghere HD TVI
  • Supraveghere IP
Rezolutie
:
  • 3072x2048 (6MP)
Infrarosu ( IR )
:
  • 30 m
Lentila
:
  • Lentila Fixa
Audio:
  • Audio incorporat

Fisa tehnica (DS-2CD2163G2-IU_Datasheet_V5.5.113_20210318.pdf, 1,080 Kb) [Download]

Manual instalare (UD22738B_Network-Camera_User-Manual_V5.5.111_20210123.PDF, 53,791 Kb) [Download]
