Camera de supraveghere Hikvision DS-2CD1043G0-I, 4MP, IR 30m

Hikvision, Supraveghere HD CVI, Supraveghere AHD, Supraveghere HD TVI, Supraveghere IP
Scrie o recenzie
270 Lei
DS-2CD1043G0-I-2.8mm
+

Camera supraveghere video IP, 2 MP, IR 20m, Hikvision DS-2CD1043G0-I

HIKVISION DS-2CD1043G0-I este o camera de supraveghere video digitala IP, cu o rezolutie maxima de 4 Megapixeli. Camera supraveghere HIKVISION DS-2CD1043G0-I poate oferi imagini pe timpul noptii sau in conditii de iluminare scazuta, de la o distanta de pana la 30 metri, DS-2CD1043G0-I fiind dotata cu un iluminator in infrarosu cu LED-uri IR. Supravegherea in timp real este mult mai usoara cu ajutorul microfonului incorporat cu ajutorul caruia puteti asculta tot ce se intampla in raza camerei de supraveghere.

Puteti inregistra imaginile obtinute de aceasta camera supraveghere atat pe un inregistrator de tip DVR, NVR, sau chiar PC.Camera de supraveghere HIKVISION DS-2CD1043G0-I beneficiaza de tehnologiile DWDR si EXIR 2.0 care ii permit sa ofere imagini detaliate chiar si in conditii de iluminare scazuta sau cu puncte puternice de lumina in fundal. Camera supraveghere are un grad de protectie IP 67 impotriva intemperiilor, fiind potrivita pentru montaj la exterior chiar si in conditii de praf si ploaie.

Pentru o imagine clara si o conexiune stabila, camera supraveghere Hikvision DS-2CE16D8T-IT3F ruleaza cel mai bine in combinatie cu DVR-urile Hikvision cu care puteti forma un kit supraveghere video performant

Tehnologia CMOS

Camerele de supraveghere Hikvision au si ele in tehnologia CMOS care ajuta la captarea imaginilor la o calitate superioara. Printre altele, caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Quad HD

Nu lasa nici un detaliu sa treaca neobservat. Cu tehnologia QuadHD poti surprinde imagini de o calitate mai buna, cu pana la 4 ori mai detaliate decat standardul HD. De asemenea, suprafata care va fi acoperita va fi mult mai mare.

Pentru intrebari cu privire la produse, modul de montaj, mententanta sau daca aveti nevoie de ajutor in alegerea produsului corect, va stam la dispozitie. Ne puteti scrie in pagina "Lasa un mesaj" sau ne puteti contacta la numarul de telefon 0348 88 00 21

Specificatii tehnice camera de supraveghere Hikvision DS-2CD1043G0-I:

 Camera

  • Image Sensor-1/3" progressive scan CMOS
  • Max. Resolution-2560 × 1440
  • Min. Illumination-Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
  • Shutter Time-1/3 s to 1/100,000 s
  • Day & Night-IR cut filter
  • Angle Adjustment-Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°



Lentila

  • Lens Type-Fixed focal length- 2.8
  • Focal Length & FOV

    2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°

    4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°

  • Lens Mount-M12
  • Iris Type-Fixed
  • Aperture-F2.0

Iluminare

  • Supplement Light Type-IR
  • Supplement Light Range-Up to 30 m
  • Smart Supplement Light-Yes
  • IR Wavelength-850 nm

Video

  • Main Stream

    50 Hz: 20 fps (2560 × 1440)

    25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

    60 Hz: 20 fps (2560 × 1440)

    30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265/H.264/H.264+/H.265+

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate-32 Kbps to 8 Mbps
  • H.264 Type-Baseline Profile/Main Profile/High Profile
  • H.265 Type-Main Profile
  • Region Of Interest (ROI)-1 fixed region for main stream

Audio

  • Audio Compression-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit Rate-UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate-UF: 8 kHz/16 kHz
  • Environment Noise Filtering-UF: Yes

Retea

  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Plug-in required live view: IE 10+

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+

Imagine

  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night SwitchAuto, Schedule, Day, Night
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC, 3D DNR

Interfata

  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB
  • Built-In Microphone-UF: Yes
  • Reset Key-UF: Yes

Evenimente

  • Basic EventMotion detection, video tampering, exception
  • Linkage

    Upload to FTP, notify surveillance center, send email

    -UF also supports: upload to memory card, trigger recording, trigger capture

General

  • Power

    12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

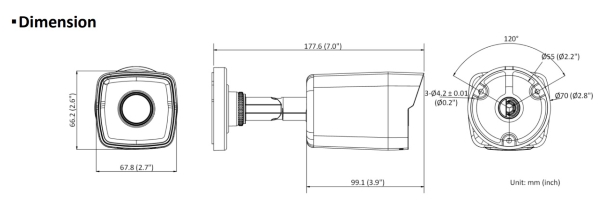

  • Dimension177.6 mm × 66.2 mm × 67.8 mm (7.0" × 2.6" × 2.7")
  • Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
  • Approx. 270 g (0.6 lb.)
  • With Package WeightApprox. 490 g (1.1 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Acces

  • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67 (IEC 60529-2013)
Disponibilitate:
In stoc

Camere de supraveghere

Tip supraveghere video
:
  • Supraveghere HD CVI
  • Supraveghere AHD
  • Supraveghere HD TVI
  • Supraveghere IP
Rezolutie
:
  • 2688x1520 (4MP)
Infrarosu ( IR )
:
  • 30 m
Lentila
:
  • Lentila Fixa
Audio:
  • Audio incorporat

Manual (UD27299B_Network-Camera_User-Manual_V5.7.1_20220224.PDF, 13,273 Kb) [Download]
