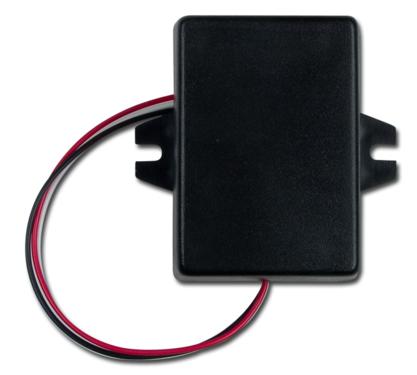

Telecomanda auto, Jablotron JA-185J
- Telecomanda auto pentru controlul diverselor dispozitive (usi de garaj, porti de acces etc.)
- Poate fi folosit si pt declansarea sistemului de alarma a masinii
- Alimentare bateria masinii 12 - 24 V
- comunicare in camp deschi 50m
This module is designed for car installation and to control devices (for example garage doors, parking entrance gates). It is powered by 12 V or 24 V from the car.
It can also be used for panic alarm transmission from a car to a home security system.
Specifications
Voltage | 12 to 24V ± 30% |
---|---|
Current consumption | 10/20 mA |
Communication band | 868.1 MHz, Jablotron protocol |
Communication range | up to 50m (open area) |
Optional reaction for inputs | 1 or 2 power pulses |
Operating temperature range | -40 to +85 ° C |
Storage temperature range | -10 to +40 ° C |
Dimensions, weight | 84 x 53 x 25 mm, 120 g |
Can be operated to | ERC REC 70-03 |
