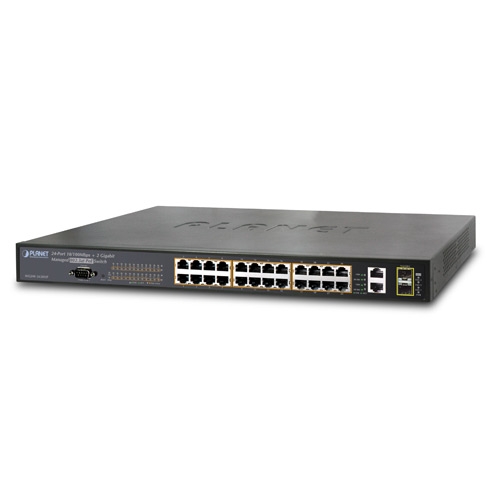

Switch POE 24 porturi 100Mbps, rackabil 1U cu management, WGSW-2620HP

5,150 Lei
WGSW-2620H
+
Suna-ma!

Switch POE 24 porturi 100Mbps, rackabil 1U cu management, WGSW-2620HP

Specificatii tehnice Switch POE 24 porturi WGSW-2620HP:

PERFORMANTA:

  • Management Da
  • Porturi 10/100Mbps 24 PoE
  • Porturi 1000Mbps 2
  • Porturi SFP/mini-GBIC 2 1000Base-SX/LX/BX share cu porturile 9 si 10
  • Tabela adrese 8K
  • Throughput 6.547Mpps
  • Standard IEEE 802.3:10Base-T IEEE 802.3u:100Base-TX IEEE 802.3z:1000Base-SX/LX IEEE 802.3ab:1000Base-T IEEE 802.3x:Flow Control and Back pressure IEEE 802.3ad:Port trunk with LACP IEEE 802.1D:Spanning Tree Protocol IEEE 802.1s:Multiple Spanning Tree Protocol IEEE 802.1p:Class of Service IEEE 802.1Q:VLAN Tagging IEEE 802.1x:Port Authentication Network Control IEEE 802.3af:Power over Ethernet IEEE 802.3at:Power over Ethernet RFC 768:UDP RFC 793:TFTP RFC 791:IP RFC 792:ICMP RFC 2068:HTTP RFC 1112:IGMP version 1 RFC 2236:IGMP version 2

SPECIFICATII ELECTRICE:

  • Alimentare 220 VAC
  • Consum 360W
  • SPECIFICATII FIZICE
  • Dimensiune 168 x 100 x440 x 300 x 44.5 mm
  • Greutate 4.6kg
Demo sistem retea cu Siwtch POE
Schema Switch WGSW-2620HP
Schema 2 WGSW-2620HP

Nici o postare găsită

Posteaza recenzie

Specificatii tehnice Switch 24 porturi POE WGSW-2620HP (Specificatii_tehnice_Switch_24_porturi_POE_WGSW-2620HP.pdf, 879 Kb) [Download]

WGSW-2620HP - Manual de utilizare (WGSW-2620HP_-_Manual_de_utilizare.pdf, 5,362 Kb) [Download]
