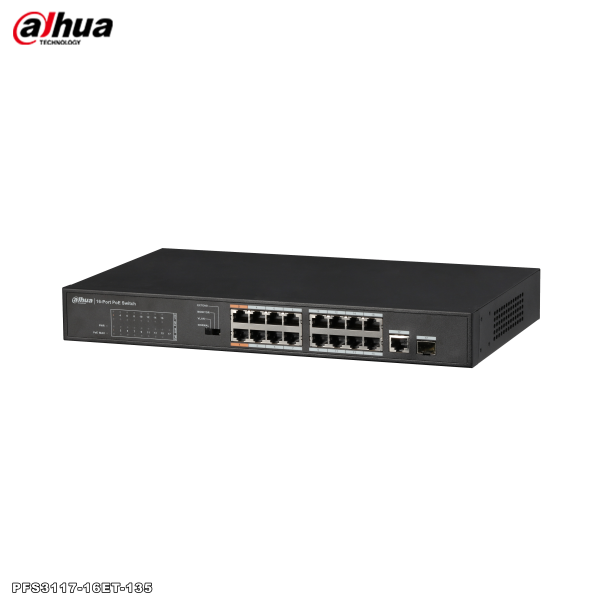

Switch 16 porturi PoE + 1 port Gigabit Combo, Dahua, PFS3117-16ET-135

Technical Specification

Model

DH-PFS3117-16ET-135

Standards

IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z,IEEE802.3x, IEEE802.3af, IEEE802.3at, Hi-PoE

Interface

16 x 10/100Mbps RJ45

1 x Gigabit Combo (RJ45/SFP)

Transfer Method

Store-and-Forward

Switching Capacity

5.2Gbps

Packet Forwarding Rate

3.87Mpps

Packet Buffer

2.75Mbit

PoE Ports(RJ45)

Port 1/2 : Hi-PoE/PoE+/PoE;

Port 1-16 : PoE+/PoE

Power Pin Assignment

1 to 2 port: 1/2/4/5 (+), 3/6/7/8 (-)

Other PoE port: 4/5 (+), 7/8 (-)

PoE Budget

135W

Mode

Default mode

All ports can communicate with each other

Isolation mode

PoE port cannot communicate with each other, but can communicate with the uplink Combo port

CCTV mode

1 to 8 ports support port priority, optimize port cache, switch all ports can communicate with each other

Extender mode

1 to 8 port rate down to 10Mbps, the farthest transmission distance of up to 250 meters, all ports can communicate with each other

Indicators

Per Device

Power: Green MAX : Red

Per Port

Link/Act: Green PoE: Yellow

Power Supply

AC 100V~240V 50/60HZ

Dimensions (W × D × H)

340*200*43 mm (13” metal case)

Environment

Operating Temperature: 0°C ~ 45°C

Storage Temperature: -40°C ~ 70°C

Operating Humidity: 10%~90% RH No condensation

Storage humidity: 5%~90% RH No condensation
