Speed Dome Turbo HD 2MP, IR 100m, Hikvision DS-2AE4225TI-D

Hikvision, Supraveghere Analog, Supraveghere HD CVI, Supraveghere AHD, Supraveghere HD TVI
1,356 Lei
DS-2AE4225TI-D
+
Suna-ma!

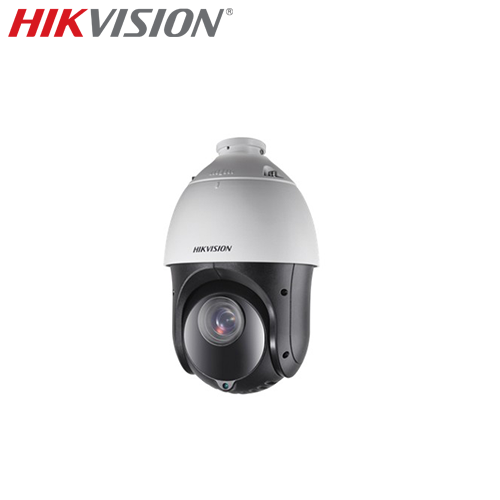

Speed Dome Turbo HD 2MP, IR 100m, Hikvision DS-2AE4225TI-D

Camera de supraveghere video mobila tip Speed Dome Hikvision DS-2AE4225TI-D cu protocol Turbo HD capteaza imagini de inalta calitate si rezolutie in conditii de iluminare scazuta. Sticla antireflexie neagra creste luminozitatea, ceea ce ajuta la atingerea distantei IR pana la 100 m.

Senzorul de imagine 1/2.8" progressive scan CMOS incorporat ofera rezolutie Full HD in timp real (1920 × 1080 pixeli), iar cu ajutorul zoom-ului optic de 25x si a filtrului IR cut, camera de supraveghere video mobila tip Speed Dome ofera mai multe detalii intr-o zona cu iluminare scazuta.

*Include suport de montare pe perete DS-1618ZL.

Caracteristici principale Speed Dome Hikvision DS-2AE4225TI-D:

  • Senzor imagine: 1/2.8" progressive scan CMOS
  • Rezolutie: 1920 × 1080 resolution
  • 25× zoom optic, 16× zoom digital
  • Functii: 120 dB true WDR (Wide Dynamic Range), 3D intelligent positioning
  • Proiector IR: distanta maxima 100m
  • Protocol: TVI / AHD / CVI / CVBS cu posibilitate de comutare.

Specificatii tehnice Speed Dome Turbo HD Hikvision DS-2AE4225TI-D:

Camera
Image Sensor:   1/2.8" Progressive Scan CMOS
Effective Pixels:   1920(H)x1080(V)
Signal System:   PAL/NTSC
Minimum Illumination:   Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 lux with IR
AGC:   Auto/Manual
BLC:   ON/OFF
WDR:   ≥ 120 dB
Anti-shake:   On / Off
Shutter Time:   PAL: 1-1/10,000s
NTSC: 1-1/10,000s
Day& Night:   ICR
Digital Zoom:   16x
Privacy Masking:   8 programmable privacy masks
Auto Focus:   Auto / Semi-automatic / Manual
Lens
Focal Length:   4.8 mm to 120 mm, 25× Optical
Zoom Speed:   Approx. 3.2 s (optical, wide to tele)
Angle of View:   57.6° to 2.5° (wide-tele)
Minimum Working Distance:   10 mm to 1500 mm (wide to tele)
Aperture Range:   F 1.6 to F 3.5
Pan & Tilt
Pan Range:   360°endless
Pan Speed:   Pan manual speed: 0.1° to 80°/s
Pan preset speed: 80°/s
Tilt Range:   -15°-90° (Auto Flip )
Tilt Speed:   Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
Proportional Zoom:   Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:   256
Patrol:   10 patrols, up to 32 presets per patrol
Pattern:   5 patterns, with the total recording time no less than 10 minutes
Power-off Memory:   Support
Park Action:   Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Position Display:   ON/OFF
Infrared
IR irradiation distance:   100m
Input & Output
Video Output:   Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
UTC function:   UTC protocol (or HIKVISION-C protocol in previous DVR)
General
RS-485 Protocols:   HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language:   English
Power Supply:   12V DC
Power Consumption:   Max.20 W (IR:7 W)
Working Temperature/Humidity:   -30 °C-65°C(-22°F-149°F)
90% or less
Protection Level:   IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Disponibilitate:
3-5 zile

Camere de supraveghere

Tip supraveghere video :
  • Supraveghere Analog
  • Supraveghere HD CVI
  • Supraveghere AHD
  • Supraveghere HD TVI
Rezolutie :
  • 1920 x 1080 (1080P)
Infrarosu ( IR ) :
  • >= 100 m
Lentila :
  • PTZ

Nici o postare găsită

Posteaza recenzie

Fisa tehnica speed dome Hikvision DS-2AE4225TI-D (Datasheet_of_DS-2AE4225TI-D_E_.pdf, 791 Kb) [Download]
