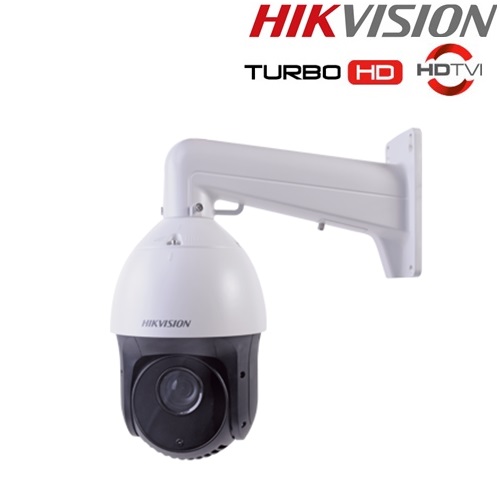

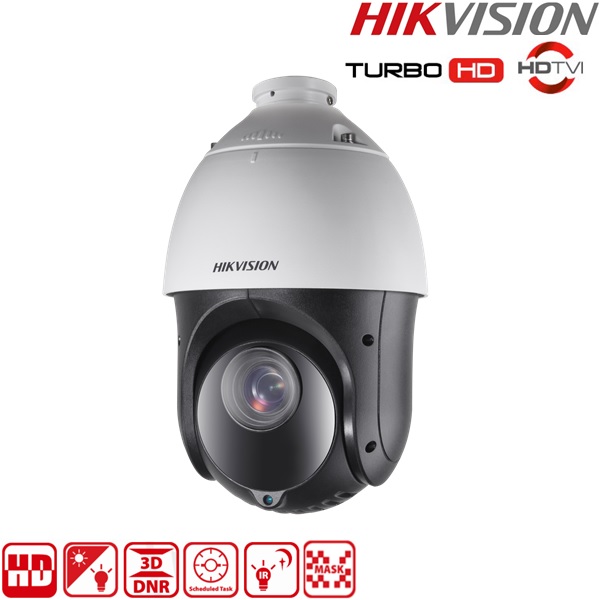

Speed Dome Turbo HD 2MP, IR 100m, Hikvision DS-2AE4215TI-D
Camera de supraveghere video mobila tip Speed Dome Hikvision DS-2AE4215TI-D IR cu protocol Turbo HD capteaza imagini de inalta calitate si rezolutie in conditii de iluminare scazuta. Sticla antireflexie neagra creste luminozitatea, ceea ce ajuta la atingerea distantei IR pana la 100 m.
Senzorul de imagine 2MP CMOS incorporat ofera rezolutie Full HD in timp real (1920 × 1080 pixeli), iar cu ajutorul zoom-ului optic de 15x si a filtrului IR cut, camera de supraveghere video mobila tip Speed Dome ofera mai multe detalii intr-o zona cu iluminare scazuta.
*Suport prindere perete DS-1602ZJ inclus.
Caracteristici principale Speed Dome Hikvision DS-2AE4215TI-D:
- Senzor imagine: 1/2.8" progressive scan CMOS
- Rezolutie: 1920 × 1080 resolution
- 15× zoom optic, 16× zoom digital
- Functii: 120 dB true WDR (Wide Dynamic Range), 3D intelligent positioning
- Proiector IR: distanta maxima 100m
- Protocol: Turbo HD / CVBS cu posibilitate de comutare.
Specificatii tehnice Speed Dome Turbo HD Hikvision DS-2AE4215TI-D:
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8" Progressive Scan CMOS | |
| Effective Pixels: | 1920(H)x1080(V) | |
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR |
|
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| WDR: | ≥ 120 dB | |
| Anti-shake: | On / Off | |
| Shutter Time: | PAL: 1-1/10,000s NTSC: 1-1/10,000s |
|
| Day& Night: | ICR | |
| Digital Zoom: | 16x | |
| Privacy Masking: | 8 privacy masks programmable | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Lens | ||
|---|---|---|
| Focal Length: | 5 mm to 75 mm, 15× Optical | |
| Zoom Speed: | Approx. 2.4 s (optical, wide to tele) | |
| Angle of View: | 53.8° to 4.0° (wide-tele) | |
| Minimum Working Distance: | 10-1500mm (Wide-Tele) | |
| Aperture Range: | F 1.6 to F 3.5 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Range: | 360°endless | |
| Pan Speed: | Pan manual speed: 0.1° to 80°/s Pan preset speed: 80°/s |
|
| Tilt Range: | -15°-90° (Auto Flip ) | |
| Tilt Speed: | Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s |
|
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 256 | |
| Patrol: | 10 patrols, up to 32 presets per patrol | |
| Pattern: | 5 patterns, with the total recording time no less than 10 minutes | |
| Power-off Memory: | Support | |
| Park Action: | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None | |
| PTZ Position Display: | ON/OFF | |
| Infrared | ||
|---|---|---|
| IR irradiation distance: | 100m | |
| IR irradiation angle: | Adjustable by zoom | |
| Alarm | ||
|---|---|---|
| Alarm Input: | 2 | |
| Alarm Output: | 1 | |
| Input & Output | ||
|---|---|---|
| Video Output: | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) | |
| UTC function: | UTC protocol (or HIKVISION-C protocol in previous DVR) | |
| General | ||
|---|---|---|
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
| Menu Language: | English | |
| Power Supply: | 12V DC | |
| Power Consumption: | Max.20 W (IR:7 W) | |
| Working Temperature/Humidity: | -30 °C-65°C(-22°F-149°F) 90% or less |
|
| Protection Level: | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
| Dimensions: | Ø 164.5 mm × 295 mm (Ø 6.47" × 11.61") | |
| Weight (approx.): | 2Kg (4.41Ib.) | |
| Mount Option: | Various mounting modes optional | |
