Detector de miscare PIR wireless cu camera video incorporata si flash, JA-160PC

JABLOTRON, JA100, Interior
  • Sistem de alarma antiefractie, profesional.

  • Module alarma wireless.
    Transmitere alarma GSM sau linie terestra

  • Solicita preconfigurare sistem de alarma.
  • Intreaba de oferta de pret UltraMaster

  • Tel. 0348 88 00 21

524 Lei
JA-160PC
+
Suna-ma!

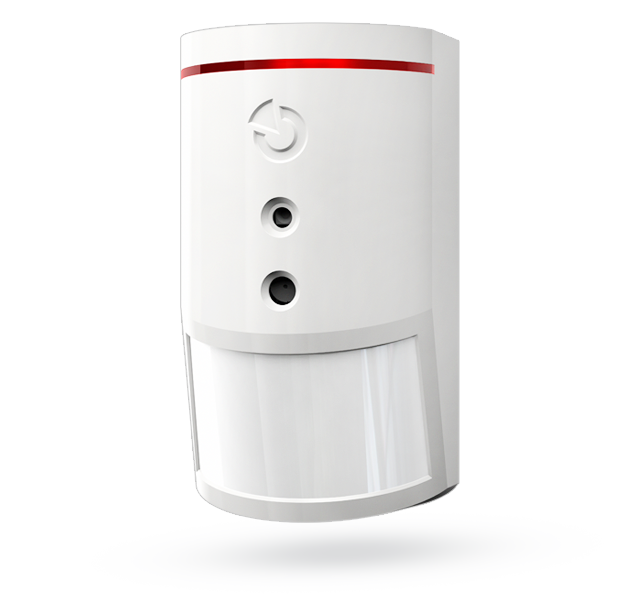

Detector de miscare PIR wireless cu camera video incorporata si flash, Jablotron JA-100, JA-160PC

Jablotron JA-160PC detector PIR wireless din gama JA-100 cu camera capabila de face fotografii color cu o rezolutie de pana la 640 x 480 pixeli detectand miscarea umana, in timp ce sistemul este armat.

Camera este echipata cu un flash vizibil pentru fotografierea in intuneric. Imaginile sunt salvate în memoria interna a detectorului și apoi sunt transmise in panoul de control. De la panoul de control pot fi trimise direct pe telefonul mobil al utilizatorului prin intermediul comunicatorului GSM din centrala de alarma .

Specificatii tehnice detector Jablotron JA-160PC:

  • Powe: r2 AA (LR6) 1.5V 2400 mAh alkaline batteries
  • Typical lifetime: about 2 years (1 activation takes 1 series of photos a day)
  • Recommended installation height: 2.5 m above the floor
  • Detection angle / detection coverage: 55° / 12 m (basic lens)
  • Horizontal camera capture angle: 43°
  • Range of the flash: max. 3 meters
  • Resolution of the camera: LQ 320 x 240; HQ 640 x 480 pixels
  • Photo size LQ/HQ (typically): 2-10 kB / 2-64 kB (6 kB / 35 kB)
  • Typical (LQ) photo transmission time to the control panel (ideally): up to 20 sec. (10 sec.)
  • Typical (HQ) photo transmission time from the control panel (ideally): up to 130 sec. (60 sec.)
  • Typical photo transfer time from the system to the server: 15 s/GPRS; 2 s /LAN
  • Operational environment according to EN 50131-1II. Indoor general
  • Operational temperature range: -10 to +40 °C
  • Dimensions, weight: 110 x 60 x 55 mm, 102 g
  • Classification: Grade 2
  • According to: EN 50131-1, EN 50131-2-2
  • Also complies with: ETSI EN 300 220, EN 50130-4, EN 55022, EN 60950-1
  • Can be operated according to: ERC REC 70-03.

Necesita baterii 2* AA 1.5V (LR6)

Disponibilitate:
3-5 zile

Sistem alarma

Tip alarma:
  • Wireless
Gama produse:
  • JA100
Detectori:
  • Interior

Nici o postare găsită

Posteaza recenzie

Manual instalare JA-160PC (Manual_instalare_JA-160PC.pdf, 232 Kb) [Download]
