Segment de control pentru modulele de control acces seria JA-100, Jablotron JA-192E

JABLOTRON, JA100, Expandor zone
Scrie o recenzie
JA-192E

Segment de control pentru modulele de control acces seria JA-100, Jablotron JA-192E

  • Segment de control pentru modulele de control acces JA-112E, JA-113E, JA-114E, JA-152E, JA-153E si JA-154E
  • Permite o utilizare usoara a sistemului de alarma: controlul partitiilor, iesirilor PG, evenimentelor (panica, medical etc.), indicarea starii

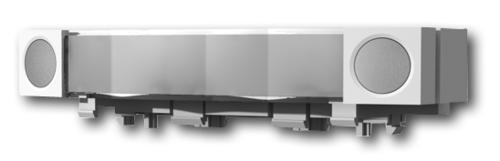

The JA-192E is a control segment for access control modules JA-112E, JA-113E, JA-114E, JA-152E, JA-153E, and JA-154E.
Allows the user to control the following security system functions:

  • the control of sections (partial arming, disarming)
  • PG output control (PG ON, PG ON and OFF, PG OFF)
  • emergency calls (panic, health alerts and more)
  • displaying the system status

Specifications

Power via the access module (9 ... 14 V)
Average power consumption of a control segment * 10 mA
Dimensions 102 x 15 x 33 mm
Weight 20 g
Classification grade 2 according to EN 50131-1, EN 50131-3,
Environment EN 50131-1. general indoor
Operating temperature range -10 to +40 ° C
Complies with EN 50130-4, EN 55022
Disponibilitate:
3-5 zile

Sistem alarma

Tip alarma:
  • Cu fir
  • Wireless
Gama produse:
  • JA100
Periferice:
  • Expandor zone

No reviews found
