Panou exterior videointerfon TCP/IP pentru 2 familii, control acces integrat - HIKVISION, DS-KV8202-IM

DS-KV8202-IM

Panou exterior videointerfon TCP/IP pentru 2 familii, control acces integrat - HIKVISION, DS-KV8202-IM

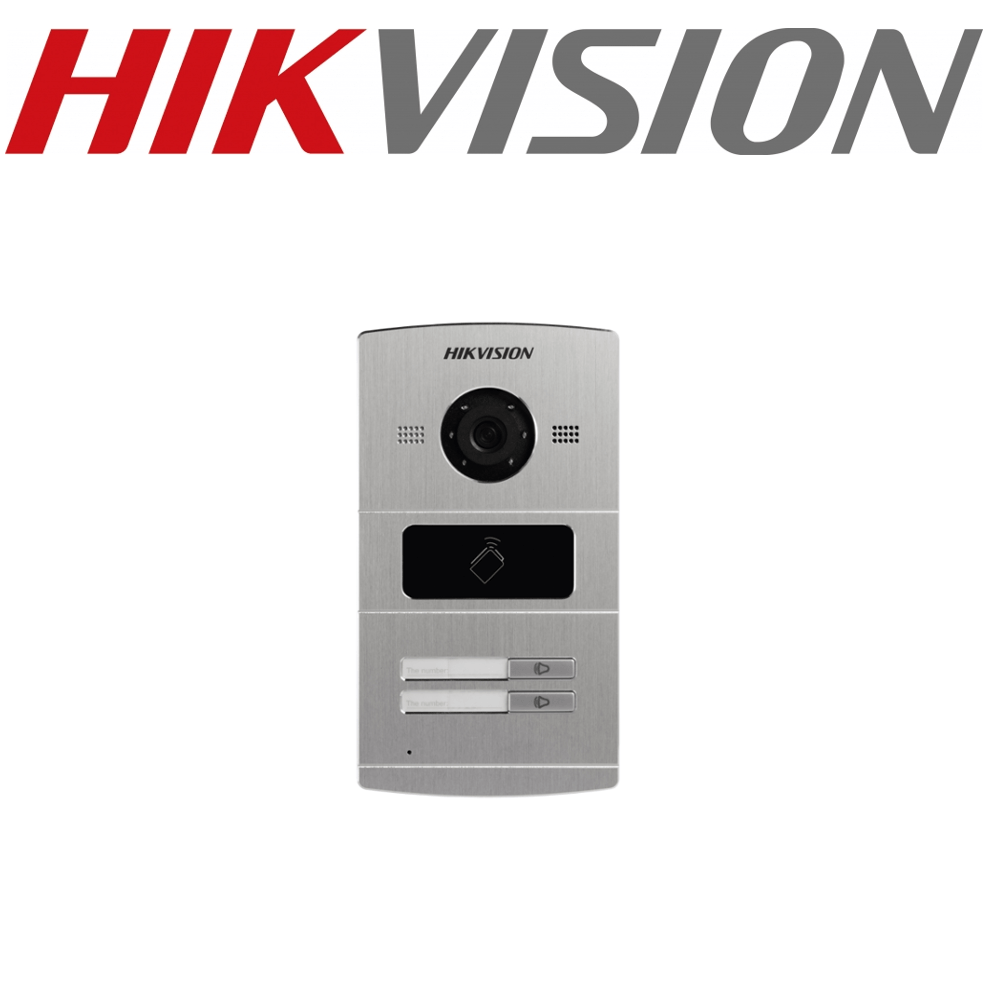

POST EXTERIOR VIDEOINTERFON HIKVISION DS-KV8202-IM

Specificatii tehnice panou exterior videointerfon TCP/IP, DS-KV8202-IM:

System Parameters
Processor:   High-Performance Embedded SOC Processor
Operation System:   Embedded Linux Operation System
Video Parameters
Camera:   CMOS Low Illumination 1.3 MP HD Colorful Camera
Video Compression Standard:   H.264
Resolution:   1280 x 720
Video frame rate:   25 fps
Audio Parameters
Audio Output:   Built-in Loudspeaker
Audio Input:   Built-in Omnidirectional Microphone
Audio Compression Standard:   G.711 U
Audio Compression Rate:   64 Kbps
Audio Quality:   Noise Suppression and Echo Cancellation
Network Parameters
Ethernet:   10/100 Mbps Self-Adaptive Ethernet
Network Protocol:   TCP/IP, RTSP
Access Control Parameters
Internal Card Reader:   Built-in IC Card Reader
Exit button:   Exit Button for Opening the Door
Door Magnetic Detection:   Detects Door Magnetic Status
Light Supplement
Light Supplement Mode:   IR Supplement
Alarm Parameters
Alarm Input:   Door Magnetic Alarm, Tampering Alarm
Device Interfaces
Network Interface:   1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
RS-485:   1 RS-485 Half-Duplex Port
I/O Input:   4
I/O Output:   1
General
Indoor Station Access Amount:   4
Material:   Aluminum Alloy
Power Supply:   12 VDC/24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612)
Power Consumption:   ≤12 W
Certification:   FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Working Temperature:   -40° C to +60° C (-40° F to 140° F)
Working Humidity:   10% to 90%
IP Protection Level:   IP65
Dimensions(L × W × H):   182 mm × 100 mm × 33 mm (7.17" × 3.94" × 1.30")

Disponibilitate:
3-5 zile

Interfonie

Tip interfon:
  • Videointerfon
Conectare:
  • Wireless
Comunicatie:
  • TCP/IP
Selector interfoane:
  • Post exterior

Manual (UD06175B_Baseline_Video_Intercom_V_Series_Door_Station_User_Manual_V1.4.23_20170624.pdf, 2,990 Kb) [Download]
