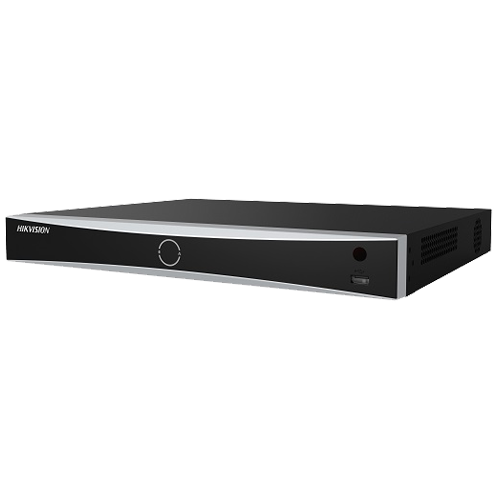

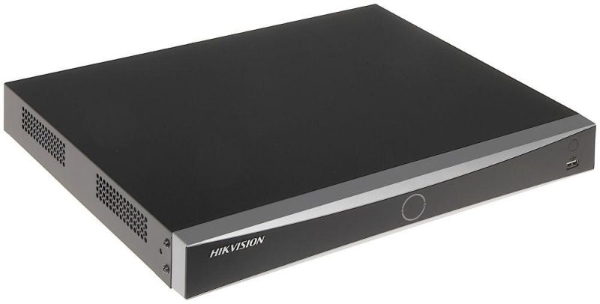

NVR AcuSense 16 canale video IP, 4K, Hikvision DS-7616NXI-I2-4S

Hikvision, NVR, 16 canale
1,239 Lei
DS-7616NXI-I2-4S
+
Suna-ma!

NVR AcuSense 16 canale video IP, 4K,  Hikvision DS-7616NXI-I2-4S

Hikvision DS-7616NXI-I2-4S este un NVR capabil sa monitorizeze, sa inregistreze si sa redea imagini de la 16 camere IP cu rezolutii de pana la 12 MP.

Iesire HDMI independenta (rezolutie pana la 4K), VGA (rezolutie pana la 1080p).

Suporta 2x HDD SATA de pana la 8TB fiecare.

Functii VCA (detectarea fetei, traversarea liniilor virtuale, detectarea intruziunilor zonei etc.)

NVR-ul foloseste tehnologia AcuSense, bazata pe algoritmi de invatare (Hikvision Deep Learning Algorithms).

Specificatii tehnice NVR Hikvision DS-7616NXI-I2-4S

Video And Audio

  • IP Video Input16-ch
  • Incoming/Outgoing Bandwidth160 Mbps/256 Mbps
  • HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω)
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

  • Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback16-ch
  • Capability12 × 1080p

Smart Analysis

  • CapabilityFalse alarm filtering for 4-ch behavior (line crossing and intrusion) detection for network camera with resolution less than or equal to 4 MP.

Network

  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Hard Disk

  • SATA2 SATA interfaces for two 3.5-inch HDDs
  • CapacityUp to 8 TB capacity for each HDD

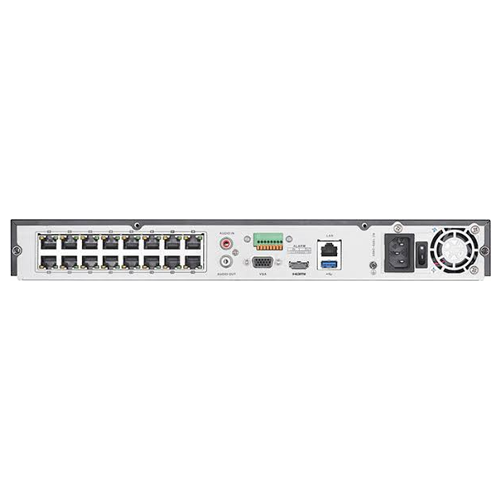

External Interface

  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out4/1

General

  • Power Supply12 VDC,≤ 40 W
  • Consumption (Without HDD)≤ 15 W
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Dimensions (W × D × H)380 × 315 × 51.5 mm ( 15.0"× 12.4" × 2.0")
  • Weight (Without Hard Disk)≤ 3 kg (6.6 lb)
  • Chassis1U chassis



Disponibilitate:
3-5 zile

Video Recorder

Tip inregistrator :
  • NVR
Protocoale acceptate DVR:
  • IP
Numar canale video :
  • 16 canale
Rezolutie inregistrare DVR:
  • 12 MP
Numar porturi HDD:
  • 2 SATA
Numar canale audio:
  • 1 canal RCA
