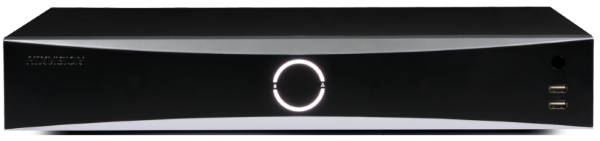

NVR AcuSense 16 canale video IP, 12MP, Hikvision DS-7716NXI-I4-4S

Hikvision DS-7716NXI-I4-4S este un NVR cu 16 canale video IP si o rezolutie maxima de inregistrare pana la 12 MP.

Rezolutia iesirilor video : HDMI pana la 4k, VGA pana la 1080p .

NVR-ul Hikvision DS-7716NXI-I4-4S utilizeaza tehnologia AcuSense . Tehnologia se bazeaza pe algoritmi de invatare profunda care permit clasificarea obiectelor si astfel filtrarea alarmelor false. Obiectele sunt clasificate în functie de siluete umane si de forma vehiculului. In prezent, utilizarea acestei functionalităti este posibila pentru evenimentele VCA.

Datorita recunoasterii corecte, sistemul poate filtra chiar si 90% din evenimentele care ar declansa alarmele false cauzate, de exemplu, de miscarea copacilor in vant, de precipitatii sau de schimbarile de iluminare.

Capacitate HDD: 4xHDD max 8TB, 1x eSATA.

Specificatii tehnice NVR Hikvision DS-7716NXI-I4-4S

Video And Audio

  • IP Video Input16-ch
  • Incoming/Outgoing Bandwidth256 Mbps/200 Mbps
  • VAG/HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,4K resolution is only available for HDMI. ,1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

  • Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/,DCIF/2CIF/CIF/QCIF,
  • Synchronous Playback16-ch
  • Capability12-ch @ 1080p False alarm filtering for 4-ch behavior (line crossing and intrusion) detection for 2 MP, 3 MP, and 4 MP network camera

Smart Analysis

  • CapabilityFalse alarm filtering for 4-ch behavior (line crossing and intrusion) detection for network camera with resolution less than or equal to 4 MP.

Network

  • Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Hard Disk

  • SATA4 SATA interfaces for four 3.5-inch HDDs
  • ESATA (Optional)1 eSATA interface
  • CapacityUp to 8 TB capacity for each HDD

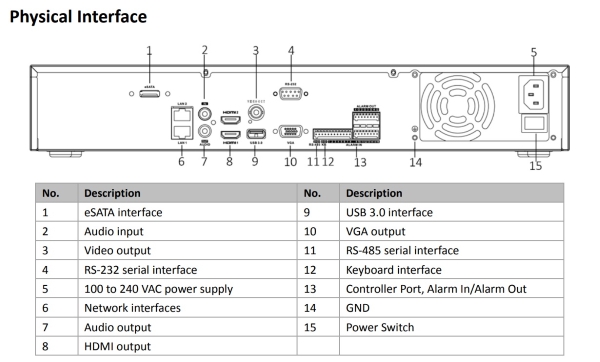

External Interface

  • Serial PortRS-485 (half-duplex), RS-232, Keyboard
  • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out16/4

General

  • Power Supply100 to 240 VAC ≤ 80 W
  • Consumption (Without HDD)≤ 30 W
  • Working Temperature-10° C to +55° C (+14° F to +131° F)
  • Working Humidity10 to 90 %

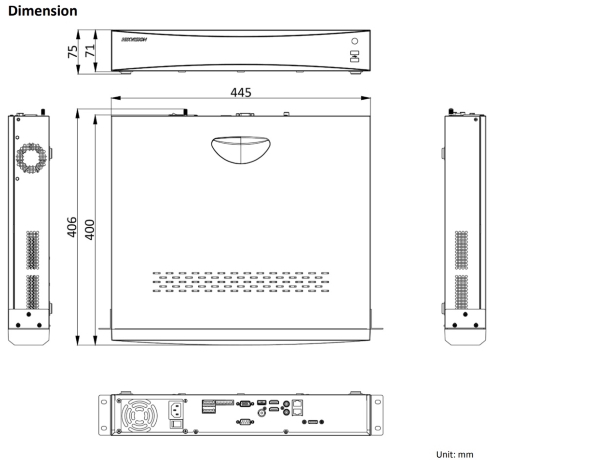

  • Dimensions (W × D × H)445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
  • Weight (Without Hard Disk)≤ 5 kg (11 lb)
  • Chassis1.5U chassis
Disponibilitate:
3-5 zile

Video Recorder

Tip inregistrator :
  • NVR
Protocoale acceptate DVR:
  • IP
Numar canale video :
  • 16 canale
Rezolutie inregistrare DVR:
  • 12 MP
Numar porturi HDD:
  • 4 SATA
Numar canale audio:
  • 1 canal RCA
