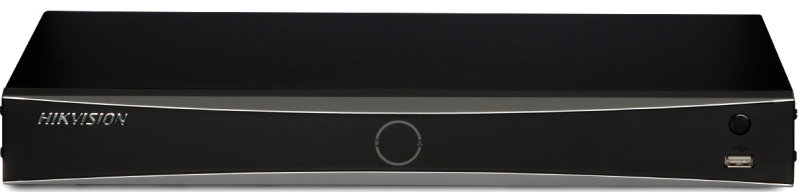

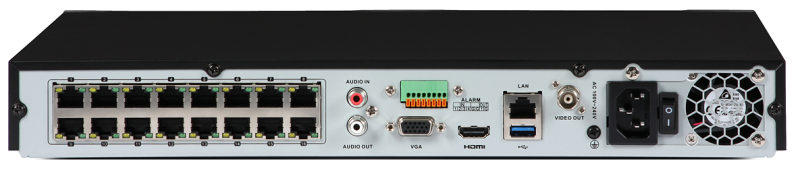

NVR AcuSense 16 canale video IP, 12MP, 16 PoE, Hikvision DS-7616NXI-I2-16P-4S

Hikvision, NVR, 16 canale
1,841 Lei
DS-7616NXI-I2-16P-4S
+
Suna-ma!

NVR AcuSense 16 canale video IP, 12MP, 16 PoE, Hikvision DS-7616NXI-I2-16P-4S

Hikvision DS-7616NXI-I2-16P-4S este un NVR capabil sa monitorizeze, inregistreze si sa redea imagini de la 16 camere IP cu rezolutii de pana la 12MP si 16 porturi PoE.

Iesirile video independente, VGA (pana la 1080p) si HDMI (pana la 4K) pot oferi imagini cu aspect diferit.

Hikvision DS-7616NXI-I2-16P-4S utilizeaza tehnologia AcuSense . Tehnologia se bazeaza pe algoritmi de invatare profunda care permit clasificarea obiectelor si astfel filtrarea alarmelor false. Obiectele sunt clasificate în functie de siluete umane si de forma vehiculului. In prezent, utilizarea acestei functionalităti este posibila pentru evenimentele VCA.

Specificatii tehnice NVR Hikvision DS-7616NXI-I2-16P-4S

Video And Audio

  • IP Video Input16-ch
  • Incoming/Outgoing Bandwidth160 Mbps/256 Mbps
  • HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω)
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

  • Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback16-ch
  • Capability12 × 1080p

Smart Analysis

  • CapabilityFalse alarm filtering for 4-ch behavior (line crossing and intrusion) detection for network camera with resolution less than or equal to 4 MP.

Network

  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE Interface

  • Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power≤ 200 W
  • Supported StandardIEEE 802.3 af/at

Hard Disk

  • SATA2 SATA interfaces for two 3.5-inch HDDs
  • CapacityUp to 8 TB capacity for each HDD

External Interface

  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out4/1

General

  • Power≤ 280 W
  • Power Supply100 to 240 VAC
  • Consumption (Without HDD)≤ 15 W
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Dimensions (W × D × H)380 × 315 × 51.5 mm ( 15.0"× 12.4" × 2.0")
  • Weight (Without Hard Disk)≤ 3 kg (6.6 lb)
  • Chassis1U chassis
Disponibilitate:
3-5 zile

Video Recorder

Tip inregistrator :
  • NVR
Protocoale acceptate DVR:
  • IP
Numar canale video :
  • 16 canale
Rezolutie inregistrare DVR:
  • 12 MP
Numar porturi HDD:
  • 2 SATA
Numar canale audio:
  • 1 canal RCA
