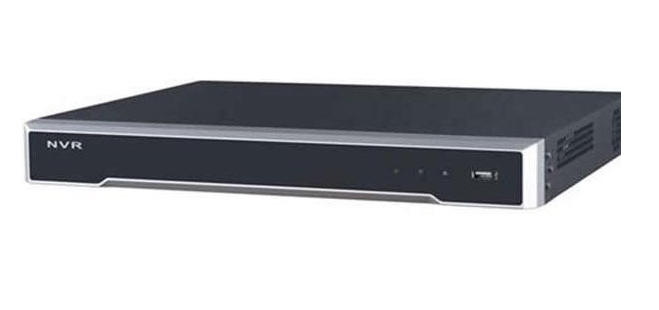

NVR 8 canale video si 8 porturi PoE, 12MP, Hikvision DS-7608NI-I2-8P

Hikvision, NVR, 8 canale
DS-7608NI-I2-8P

NVR 8 canale video si 8 porturi PoE, 12MP, Hikvision DS-7608NI-I2-8P

NVR-ul DS-7608NI-I2-8P marca Hikvision cu 8 canale video, 8 x interfata independenta retea PoE 100Mbps, ce inregistreaza cu o rezolutie de pana la 12MP.

NVR-ul are doua iesiri video : HDMI si VGA.

Datorita celor doua porturi SATA, DS-7608NI-I2-8P permite conectarea a 2 HDD de maxim 8 TB fiecare.

Analiza video: Search content, ANPR/LPR, VCA detection, temperatura.

ANPR (Automatic Number Plate Recognition) este un sistem inteligent, special creat pentru identificarea vehiculelor prin recunoasterea numerelor de inmatriculare ale acestora. Astfel pot fi identificate numerele suspecte, poate fi masurata densitatea traficului, viteza de deplasare a masinilor sau diferite incalcari ale regulilor de circulatie.

VCA detection detectia fetei, functie de recunoastere a placutelor de inmatriculare, trecere linie virtuala, detecteaza intrusi intr-o anumita zona selectata.

Specificatii tehnice Hikvision DS-7608NI-I2-8P

Video And Audio

  • IP Video Input8-ch Up to 12 MP resolution
  • Video Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p /VGA/4CIF /DCIF/2CIF/CIF/QCIF
  • Incoming/Outgoing Bandwidth80 Mbps 256 Mbps
  • HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

  • Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p /VGA/4CIF /DCIF/2CIF/CIF/QCIF
  • Synchronous Playback8-ch
  • Capability2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)

Network

  • Remote Connections32
  • Network ProtocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

POE Interface

  • Interface8 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
  • Power≤ 120 W ≤ 180 W
  • Supported StandardIEEE 802.3 af/at

Hard Disk

  • SATA2 SATA interfaces
  • CapacityUp to 8TB capacity for each HDD

External Interface

  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out4/1

General

  • Power Supply100 to 240 VAC, 50 to 60 Hz
  • Consumption (Without HDD)≤15 W (without enabling PoE)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Dimensions (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
  • Weight (Without Hard Disk)≤ 3 kg (6.6 lb)
Disponibilitate:
3-5 zile

Video Recorder

Tip inregistrator :
  • NVR
Protocoale acceptate DVR:
  • IP
Numar canale video :
  • 8 canale
Rezolutie inregistrare DVR:
  • 12 MP
Numar porturi HDD:
  • 2 SATA
Numar canale audio:
  • 1 canal RCA
