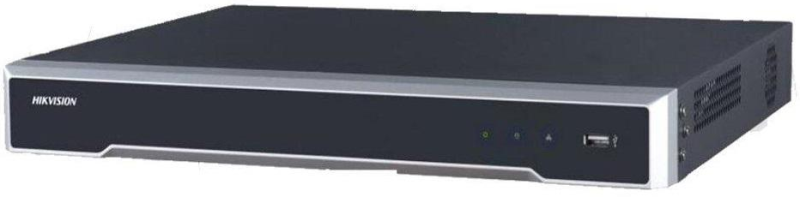

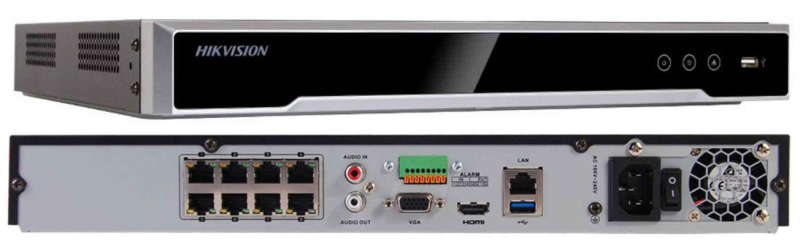

NVR 8 canale, 4K, PoE, Hikvision DS-7608NI-K2-8P

NVR 8 canale, 4K, PoE, Hikvision DS-7608NI-K2-8P

NVR-ul Hikvision DS-7608NI-K2-8P are 8 canale si suporta camere IP cu o rezolutie maxima de 8 MP (3840X2160) pe iesirea HDMI. Daca doriti o iesire de tip VGA suporta o calitate a imaginilor rezonabila de FULLHD 1080p.

Suporta 2 x HDD de 6TB fiecare. Are 8 porturi independente PoE cu o viteza maxima pe banda de 100MBps.

Permite o monitorizare a obiectivelor de la distanta prin intermediul aplicatiei care poate fi folosita de pe telefon, tableta sau laptop/calculator. Are o intrare audio bi-directionala care permite comunicarea intre 2 persoane prin intermediul aplicatiei/NVR-ului.

Specificatii tehnice NVR Hikvision DS-7608NI-K2-8P

Video And Audio

• IP Video Input8-ch
• Incoming/Outgoing Bandwidth80 Mbps ,160 Mbps
• HDMI Output4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1kΩ)

Decoding

• Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
• Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback8-ch
• Capability2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)

Network

• Network ProtocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

POE Interface

• Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power≤ 120 W
• Supported StandardIEEE 802.3 af/at

Hard Disk

• SATA2 SATA interfaces
• CapacityUp to 6 TB capacity for each HDD

External Interface

• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out4/1

General

• Power Supply100 to 240 VAC,≤ 180 W
• Consumption (Without HDD)≤ 15 W (without enabling PoE)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10 to 90 %
• Dimensions (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
• Weight (Without Hard Disk)≤ 3 kg (6.6 lb)
