NVR 4 canale video IP si 4 porturi PoE, 4K, Hikvision DS-7604NI-K1-4P(B)

Hikvision, NVR, 4 canale
529 Lei
Hard disk pentru stocarea imaginilor in DVR/NVR
DS-7604NI-K1-4P(B)
+
Suna-ma!

NVR 4 canale video IP si 4 porturi PoE, 4K, Hikvision DS-7604NI-K1-4P(B)

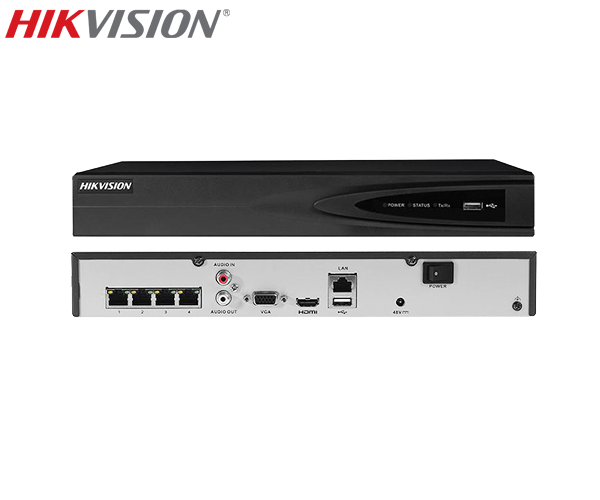

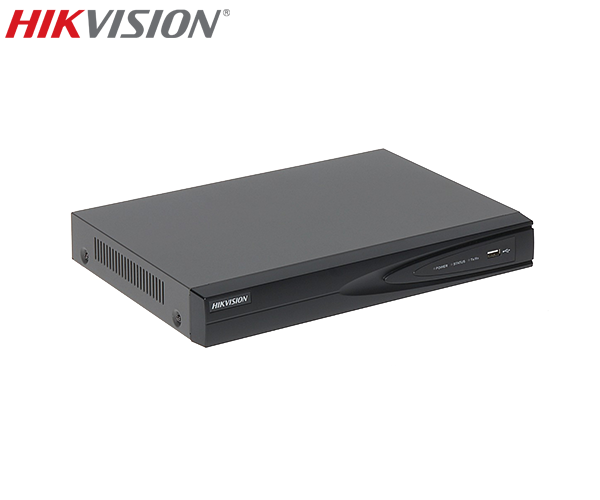

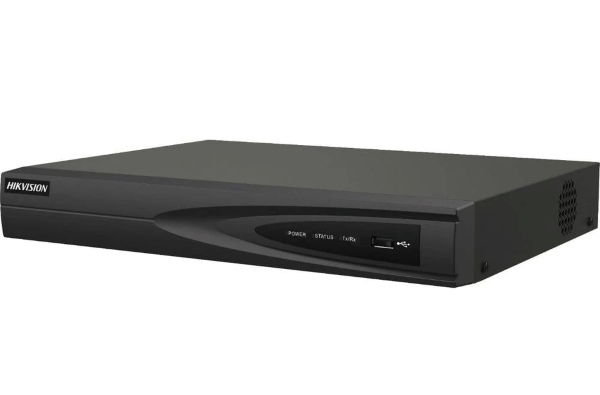

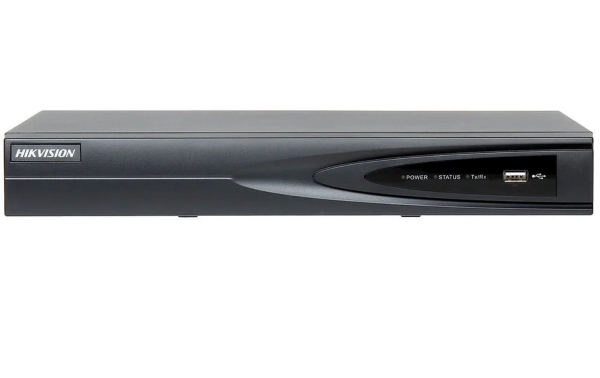

NVR-ul Hikvision DS-7604NI-K1-4P(B) este capabil sa monitorizeze si sa inregistreze 4 camere de supraveghere IP cu o rezolutie de pana la 8MP (4K). Dispune de 4 porturi PoE pentru alimentarea camerelor de supraveghere video IP. Capacitate de stocare de 1 HDD SATA de maxim 6TB.

*Redare si vizualizare 4K prin iesirea HDMI si 1080P Full HD prin VGA.

Vizualizare Live direct de pe telefonul mobil cu ajutorul aplicatiei iVMS-4500. Este o aplicatie mobila pentru smartphone-uri care ruleaza pe sisteme de operare Windows Phone, Android sau iOS fiind disponibila gratuit pe AppStore. Aceasta poate fi utilizata pentru monitorizarea live, redarea si descarcarea inregistrarilor de la DVR-uri, NVR-uri şi camere IP prin intermediul retelelor Wi-Fi, 2G sau 3G.

Caracteristici principale NVR Hivision DS-7604NI-K1-4P(B):

  • Rezolutie de inregistrare de pana la 8 MP;
  • Rezolutia iesirilor video independente: HDMI pana la 4K @ 30Hz, VGA pana la 1080p @ 60Hz;
  • Latime maxima de banda totala (intrare / iesire): 40/80 Mbps;
  • Suport pentru 4 camere IP (compatibile cu Hikvision);
  • Switch PoE cu 4 porturi incorporat;
  • Suport pentru HDD SATA de pana la 6 TB;
  • Suport pentru compresia video H.265+/H.265/H.264+/H.264;
  • 2x USB 2.0;
  • Intrare / iesire audio;
  • Monitorizarea statutului retelei LAN, camere, HDD.

Accesorii:

Specificatii tehnice NVR Hikvision DS-7604NI-K1-4P(B):

Video/Audio Input
IP video input: | 4-ch, Up to 8 MP resolution
Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth: | 40Mbps
Outgoing bandwidth: | 80Mbps
Video/Audio Output
HDMI Output: | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output
Recording Resolution: | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Audio Output: | 1-ch, RCA (Linear, 1kΩ)
VGA Output: | 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ; HDMI/VGA simultaneous output
Decoding
Decoding format:   H.265/H.265+/H.264/H.264+/MPEG4
Live view / Playback: | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback:   4-ch
Capability: | 1-ch @ 8 MP / 4-ch @ 1080p
Network management:
Network protocols:   TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk
SATA: | 1 SATA interface
Capacity: | Up to 6TB capacity for each disk

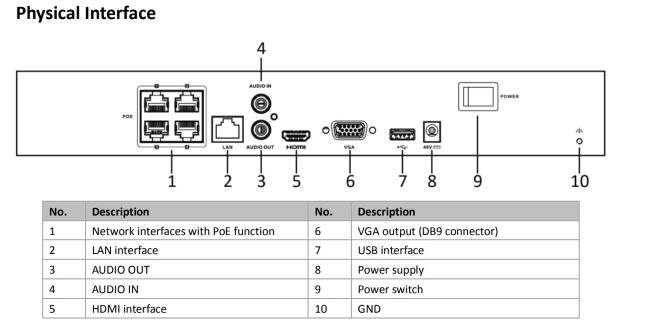

External Interface
Network Interface: | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB Interface: | 2 × USB 2.0
POE Interface
Interface: | 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power:   ≤ 50W
Standard:   IEEE 802.3 af/at
General
Power Supply: | 48 VDC
Power:   ≤ 65 W
Consumption(without hard disk): | ≤ 10 W (without enabling PoE)
Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity: | 10 % ~ 90 %
Chassis:   1U chassis

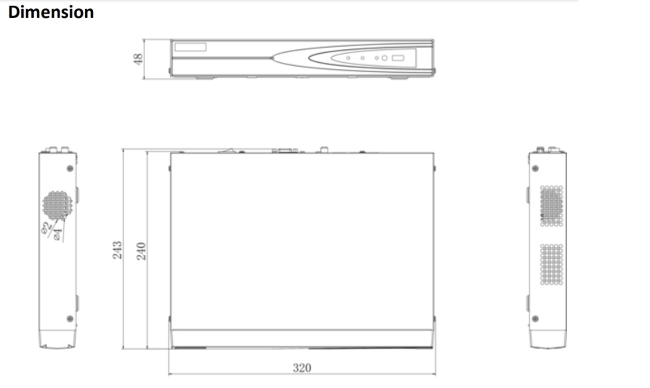

Dimensions: | 315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight(without HDD): | ≤ 1 kg (2.2 lb)
Disponibilitate:
3-5 zile

Video Recorder

Tip inregistrator :
  • NVR
Numar canale video :
  • 4 canale
Rezolutie inregistrare DVR:
  • 4K (3840 × 2160)
Numar porturi HDD:
  • 1 SATA
Numar canale audio:
  • 1 canal RCA

Nici o postare găsită

Posteaza recenzie

Fisa tehnica NVR Hikvision DS-7604NI-K1-4P(B) (Datasheet_of_DS-7600NI-K1_P__B__NVR_3.4.96_20181102.pdf, 795 Kb) [Download]
