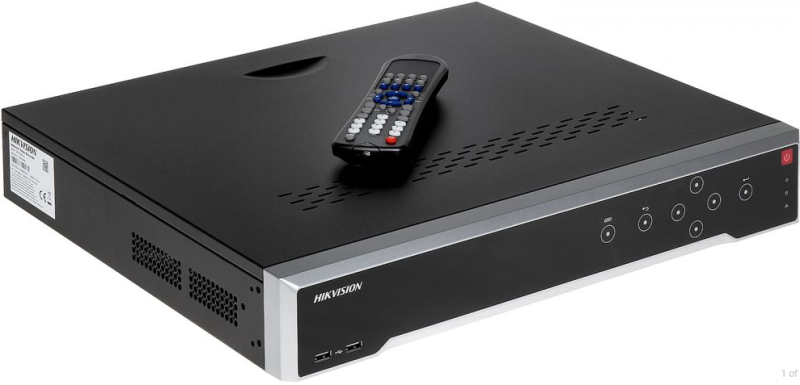

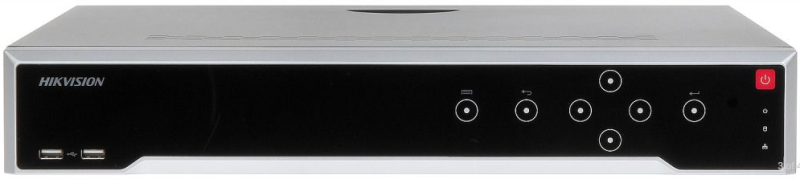

NVR 32 canale video IP, 4K, 16xPoE, Hikvision DS-7732NI-K4-16P

Hikvision, NVR, 32 canale
2,088 Lei
DS-7732NI-K4-16P
+
Suna-ma!

NVR 32 canale video IP, 4K, 16xPoE, Hikvision DS-7732NI-K4-16P

Hikvision DS-7732NI-K4-16P este un NVR cu 32 canale video IP, cu o rezolutie de pana la 8 MP.

Iesiri video: HDMI 4K (3840 × 2160), VGA 1080p.

Suporta 4x HDD SATA de pana la 6TB fiecare.

Porturi PoE: 16 porturi RJ45 10/100 Mb.

Poate fi accesat de pe iOS/Android prin iVMS4500 si HIK-Connect, de pe PC-uri prin aplicatie client-server iVMS4200.

Specificatii tehnice NVR Hikvision DS-7732NI-K4-16P

Video And Audio

  • IP Video Input32-ch
  • Incoming/Outgoing Bandwidth256 Mbps 160 Mbps
  • HDMI Output4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1kΩ)

Decoding

  • Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF
  • Decoding FormatH.265/ H.265+/H.264/H.264+/MPEG4
  • Synchronous Playback16-ch
  • Capability2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)

Network

  • Network ProtocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

POE Interface

  • Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power≤ 200 W
  • Supported StandardIEEE 802.3 af/at

Hard Disk

  • SATA4 SATA interfaces
  • CapacityUp to 6 TB capacity for each HDD

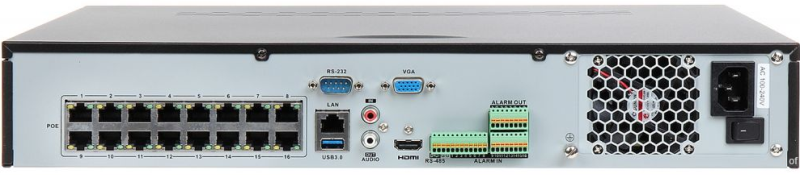

External Interface

  • Serial Port1 RS-485 (half-duplex), 1 RS-232, 1 keyboard (optional)
  • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out16/4

General

  • Power≤ 300 W
  • Power Supply100 to 240 VAC
  • Consumption (Without HDD)≤ 20 W (without enabling PoE)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Dimensions (W × D × H)445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
  • Weight (Without Hard Disk)≤ 5 kg (11. lb)



Disponibilitate:
3-5 zile

Video Recorder

Tip inregistrator :
  • NVR
Protocoale acceptate DVR:
  • IP
Numar canale video :
  • 32 canale
Rezolutie inregistrare DVR:
  • 4K (3840 × 2160)
Numar porturi HDD:
  • 4 SATA
Numar canale audio:
  • 1 canal RCA
