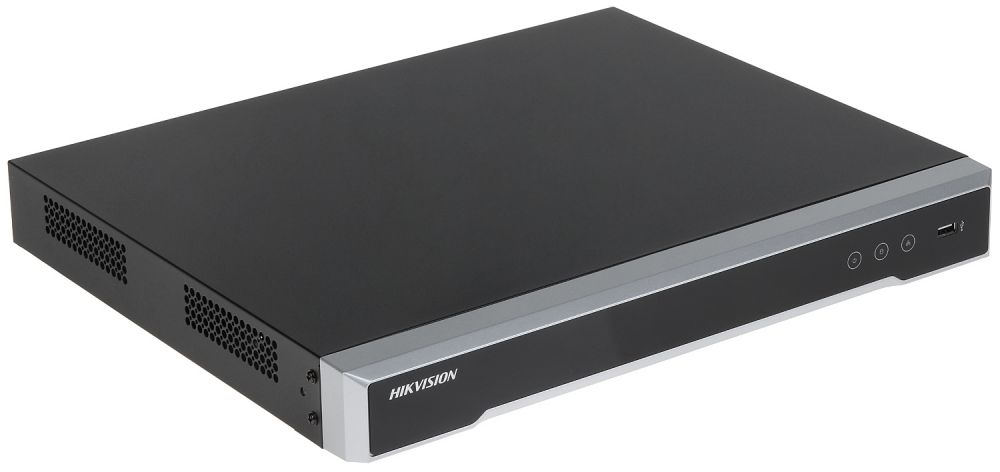

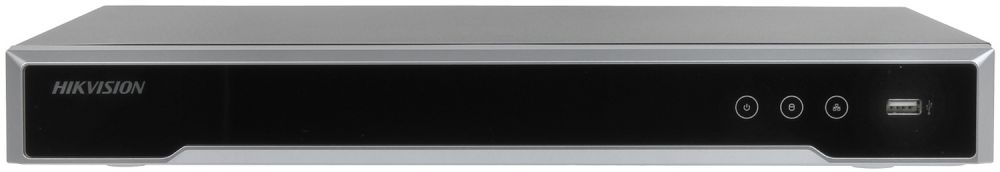

NVR 32 canale IP, 4k, Hikvision DS-7632NI-I2

NVR 32 canale IP, 12 MP, Hikvision DS-7632NI-I2

Hikvision DS-7632NI-I2 este un NVR cu 32 canale IP, inregistreaza cu o rezolutie de pana la 12 MP.

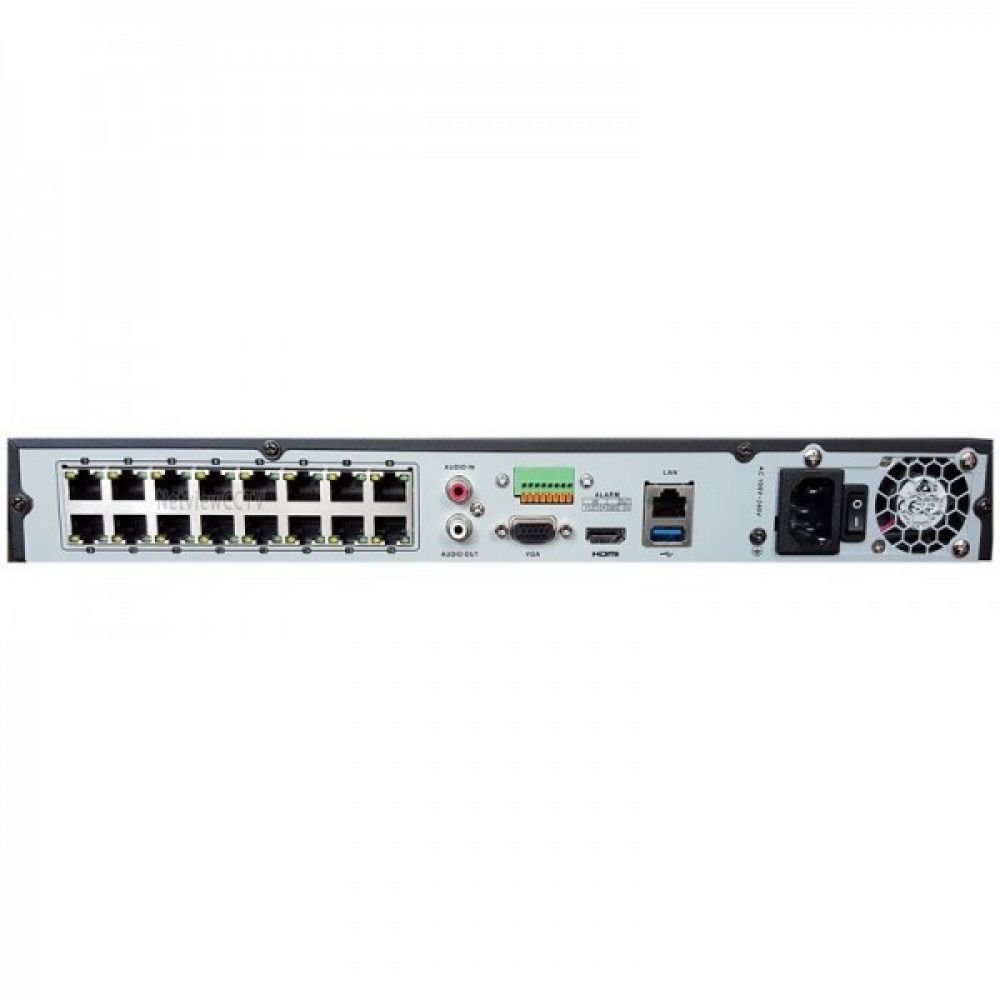

NVR-ul beneficiaza de o iesire HDMI si una VGA. Rezolutia maxima de redare este de 1080p prin VGA si 4k prin HDMI.

Permite 2 x HDD de maxim 6 TB fiecare, interfete externe : 2 x USB.

DS-7632NI-I2 se poate accesa direct de pe telefonul mobil (iPhone, iPad, Android) prin aplicatia iVMS4500 sau de pe propriul PC prin aplicatia client-server iVMS4200.

Specificatii tehnice NVR Hikvision DS-7632NI-I2

Video And Audio

• IP Video Input32-ch,Up to 12 MP resolution
• Video Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
• Incoming/Outgoing Bandwidth256 Mbps
• HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

• Decoding FormatH.265/ H.265+/H.264/H.264+/MPEG4
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous Playback16-ch
• Capability2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)

Network

• Remote Connections128
• Network ProtocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Hard Disk

• SATA2 SATA interfaces for 2HDDs
• CapacityUp to 8TB capacity for each HDD

External Interface

• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out4/1

General

• Power Supply12 VDC,≤40 W
• Consumption (Without HDD)≤15 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10 to 90 %
• Dimensions (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0") or 440 × 393 × 75 mm (17.3" × 15.5" × 3.0")
• Weight (Without Hard Disk)≤ 1 kg (2.2 lb) or ≤ 5 kg (11 lb)
