NVR 32 canale, 4K, Hikvision DS-7632NI-K2

Hikvision, NVR, 32 canale
DS-7632NI-K2

NVR 32 canale, 4K, Hikvision DS-7632NI-K2

DS-7632NI-K2 este un NVR marca Hikvision cu 32 canale video IP cu rezolutie de pana la 8 MP.

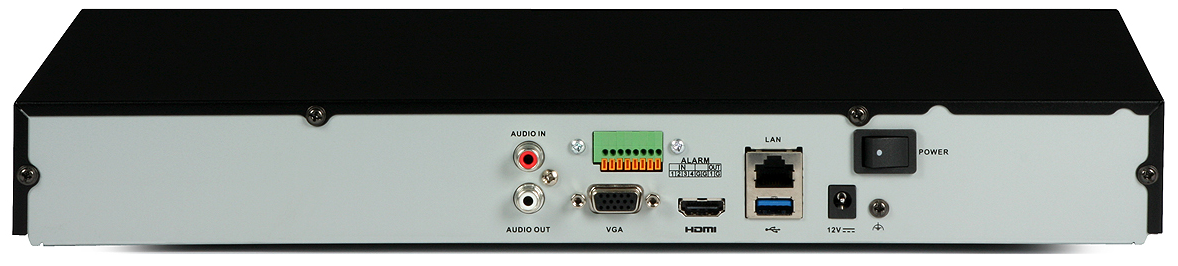

NVR-ul are doua iesiri video :

  • HDMI (rezolutie pana la 4K);
  • VGA (rezolutie pana la 1080p).

Datorita celor doua porturi SATA, DS-7632NI-K2 permite conectarea a 2 HDD de maxim 6 TB fiecare.

Analiza video: Search content, ANPR/LPR, VCA detection.

ANPR (Automatic Number Plate Recognition) este un sistem inteligent, special creat pentru identificarea vehiculelor prin recunoasterea numerelor de inmatriculare ale acestora. Astfel pot fi identificate numerele suspecte, poate fi masurata densitatea traficului, viteza de deplasare a masinilor sau diferite incalcari ale regulilor de circulatie.

VCA detection detectia fetei, functie de recunoastere a placutelor de inmatriculare, trecere linie virtuala, detecteaza intrusi intr-o anumita zona selectata.

Specificatii tehnice Hikvision DS-7632NI-K2

Video And Audio

  • Incoming/Outgoing Bandwidth160 Mbps ,256 Mbps
  • IP Video Input32-ch

Decoding

  • Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
  • Synchronous Playback16-ch
  • Capability2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)

Hard Disk

  • SATA2 SATA interfaces
  • CapacityUp to 6 TB capacity for each HDD

External Interface

  • Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1kΩ)
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out4/1

Video/Audio Output

  • VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • HDMI Output4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio Output1-ch, RCA (Linear, 1 KΩ)

Network Management

  • Network ProtocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

General

  • Power Supply12 VDC,≤ 40 W
  • Consumption (Without HDD)≤15 W
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Dimensions (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
  • Weight (Without Hard Disk)≤ 1 kg (2.2 lb)
Disponibilitate:
3-5 zile

Video Recorder

Tip inregistrator :
  • NVR
Protocoale acceptate DVR:
  • IP
Numar canale video :
  • 32 canale
Rezolutie inregistrare DVR:
  • 4K (3840 × 2160)
Numar porturi HDD:
  • 2 SATA
Numar canale audio:
  • 1 canal RCA
