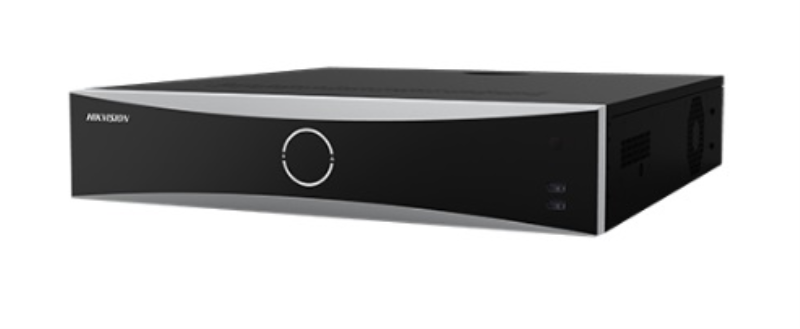

NVR 32 canale, 4canale AcuSense, 12MP, Hikvision DS-7732NXI-I4/S

NVR 32 canale, 4canale AcuSense, 12MP, Hikvision DS-7732NXI-I4/S

Hikvision DS-7732NXI-I4-S este un NVR cu 32 canale video IP, cu o rezolutie de pana la 12 MP.

Iesiri video: 2x HDMI 4K (3840 × 2160), VGA 1080p.

Suporta 4x HDD SATA de pana la 8TB fiecare.

Functii VCA (detectarea fetei, traversarea liniilor virtuale, detectarea intruziunilor zonei etc.).

NVR-ul foloseste tehnologia AcuSense, bazata pe algoritmi de invatare (Hikvision Deep Learning Algorithms).

Specificatii tehnice NVR Hikvision DS-7732NXI-I4-S

Video And Audio

• IP Video Input32-ch
• Incoming/Outgoing Bandwidth256 Mbps/200 Mbps
• VAG/HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,4K resolution is only available for HDMI.,1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

• Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/,DCIF/2CIF/CIF/QCIF,
• Synchronous Playback16-ch
• Capability12-ch @ 1080p False alarm filtering for 4-ch behavior (line crossing and intrusion) detection for 2 MP, 3 MP, and 4 MP network camera

Smart Analysis

• CapabilityFalse alarm filtering for 4-ch behavior (line crossing and intrusion) detection for network camera with resolution less than or equal to 4 MP.

Network

• Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Hard Disk

• SATA4 SATA interfaces for four 3.5-inch HDDs
• ESATA (Optional)1 eSATA interface
• CapacityUp to 8 TB capacity for each HDD

External Interface

• Serial PortRS-485 (half-duplex), RS-232, Keyboard
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out16/4

General

• Power Supply100 to 240 VAC ≤ 80 W
• Consumption (Without HDD)≤ 30 W
• Working Temperature-10° C to +55° C (+14° F to +131° F)
• Working Humidity10 to 90 %
• Dimensions (W × D × H)445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
• Weight (Without Hard Disk)≤ 5 kg (11 lb)
• Chassis1.5U chassis
