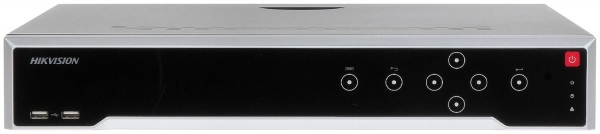

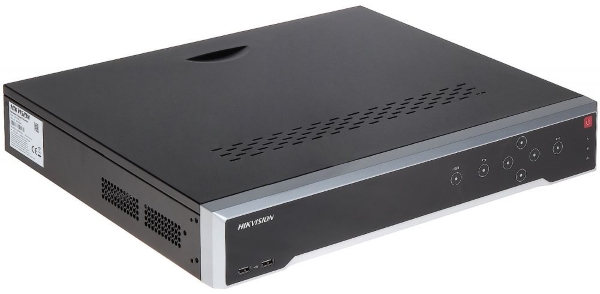

NVR 16 canale video IP, 4K, Hikvision DS-7716NI-K4

NVR 16 canale video IP, 4K, Hikvision DS-7716NI-K4

DS-7716NI-K4 este un NVR (Network Video Recorder) de la Hikvision cu 16 canale video. Acesta inregistreaza cu o rezolutie de pana la 8MP.

NVR-ul beneficiaza de o iesire HDMI si una VGA. Rezolutia maxima de redare este de 1920x1080 pixeli prin VGA si 4k prin HDMI.

DS-7716NI-K4 se poate accesa direct de pe telefonul mobil (iPhone, iPad, Android) prin aplicatia iVMS4500 sau de pe propriul PC prin aplicatia client-server iVMS4200.
Permite pana la 4x HDD SATA cu o capacitate maxima de 6TB fiecare.

Specificatii tehnice NVR Hikvision DS-7716NI-K4

Video And Audio

• IP Video Input16-ch
• Incoming/Outgoing Bandwidth160 Mbps 160 Mbps
• HDMI Output4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1kΩ)

Decoding

• Decoding FormatH.265/H.265+/H.264+/H.264/MPEG4
• Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF,/2CIF/CIF/QCIF,
• Synchronous Playback16-ch
• Chassis2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)

Network

• Network ProtocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

Hard Disk

• SATA4 SATA interfaces
• CapacityUp to 6TB capacity for each HDD

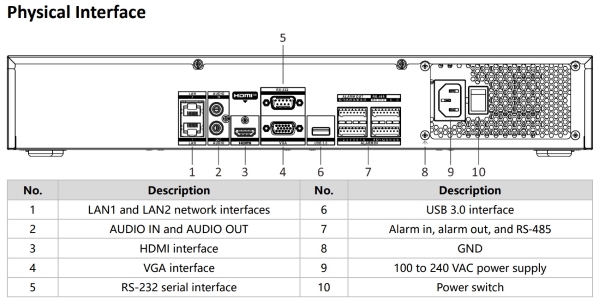

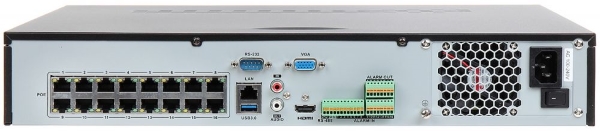

External Interface

• Serial Port1 RS-485 (half-duplex), 1 RS-232, 1 keyboard (optional)
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out16/4

General

• Power≤ 80 W
• Power Supply100 to 240 VAC
• Consumption (Without HDD)≤ 20 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10 to 90 %

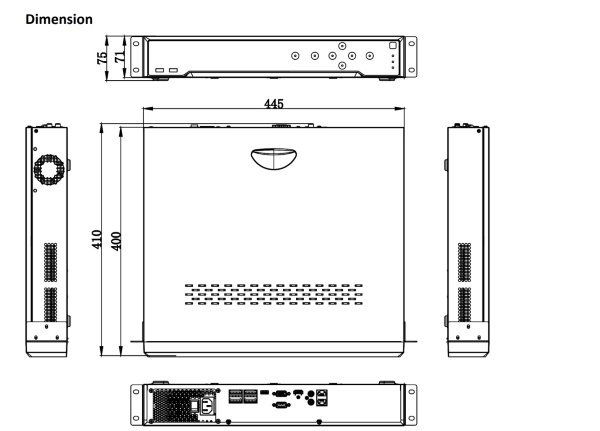

• Dimensions (W × D × H)445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
• Weight (Without Hard Disk)≤ 5 kg (11. lb)
