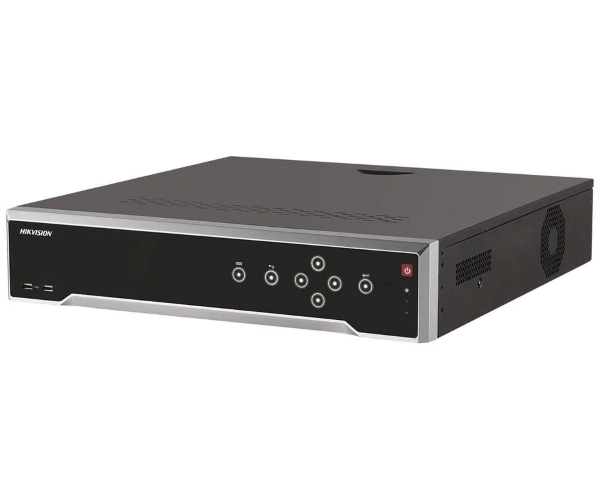

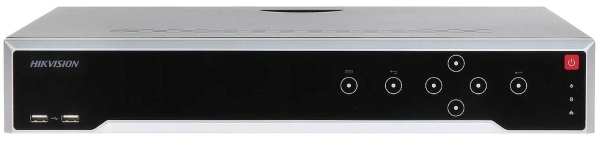

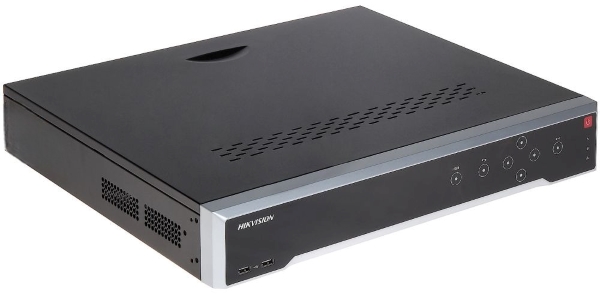

NVR 16 canale video IP, 4K, Hikvision DS-7716NI-I4

NVR 16 canale video IP, 4K, Hikvision DS-7716NI-I4

NVR Stand alone Hikvision DS-7716NI-I4 capabil sa monitorizeze si inregistreze 16 camere de supraveghere video IP cu rezolutie maxima de pana la 4K (12MP).

Stocarea inregistrarilor se poate face pe 4x HDD SATA de maxim 6TB fiecare.

Redare si vizualizare 4K prin iesirea HDMI si Full HD 1080P prin iesirea VGA..

Specificatii tehnice NVR Hikvision DS-7716NI-I4

Video And Audio

• IP Video Input16-ch Up to 12 MP resolution
• Video Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
• Incoming/Outgoing Bandwidth160 Mbps 256 Mbps
• HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

• Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback16-ch
• Capability2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)

Network

• Remote Connections128
• Network ProtocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

Hard Disk

• SATA4 SATA interfaces for 4HDDs
• CapacityUp to 8TB capacity for each HDD

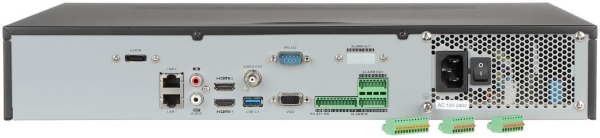

External Interface

• Serial Port1 RS-485 (half-duplex), 1 RS-232
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out16/4

General

• Power≤80 W
• Power Supply100 to 240 VAC
• Consumption (Without HDD)≤20 W
• Working Temperature-10 to +55º C (+14 to +131º F)
• Working Humidity10 to 90 %
• Dimensions (W × D × H)445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
• Weight (Without Hard Disk)≤ 5 kg (11 lb)
• Chassis19-inch rack-mounted 1.5U chassis
