NVR 16 canale, Hikvision, DS-7616NI-K2

Hikvision, NVR, 16 canale
630 Lei
Hard disk pentru stocarea imaginilor in DVR/NVR
DS-7616NI-K2
+
Suna-ma!

NVR 16 canale, Hikvision, DS-7616NI-K2

NVR-ul Hikvision DS-7616NI-K2 are 16 canale si suporta camere IP cu rezolutie de pana la 8MP (4K). Are doua iesiri video utile pentru conectarea monitoarelor pe care se vizualizeaza imaginile inregistrate sau live. Astfel, portul HDMI (rezolutie de pana la 4K) si cel VGA ( cu rezolutie maxima Full HD) pot fi utilizate oricand este nevoie de monitorizarea mai atenta a spatiului supravegheat ( de ex: un magazin, un aeroport, o institutie publica etc.)

NVR-ul suporta conectarea a doua hard disk-uri, pentru a putea stoca imaginile inregistrate. Capacitatea maxima a hard disk-ului trebuie sa fie de maxim 6TB.

NVR-ul are o intrare audio care poate fi utilizata pentru comunicare bi-directionala si 4 intrari de alarm

Specificatii tehnice NVR 16 canale, Hikvision, DS-7616NI-K2:

Video/Audio Input
Two-way audio input:   1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input:   16-ch
Network
Remote connection:   128
Incoming bandwidth:   160Mbps
Outgoing bandwidth:   160Mbps
Video/Audio Output
HDMI Output:   1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution:   8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:   1-ch, RCA (Linear, 1kΩ)
Synchronous Playback:   16-ch
VGA Output:   1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Capability:   8-ch@1080P
Live view / Playback:   8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Hard Disk
SATA:   2 SATA interfaces for 2 HDDs
Capacity:   Up to 6TB capacity for each HDD

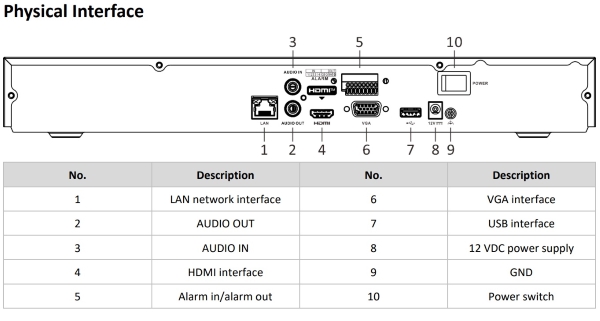

External Interface
Network Interface:   1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface:   Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
Alarm In:   4-ch
Alarm Out:   1-ch
General
Power Supply:   100 to 240VAC
Consumption(without hard disk and POE):   ≤ 15 W
Working Temperature:   -10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity:   10 % ~ 90 %
Chassis:   385 mm chassis

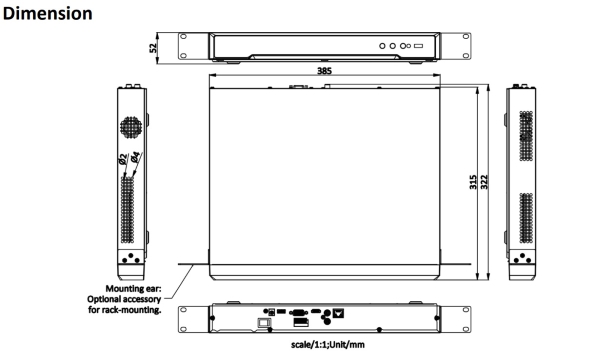

Dimensions:   385 × 315× 52 mm (15.2" 12.4" 2.0")
Weight(without HDD):   ≤ 3 kg (6.6 lb)
Disponibilitate:
3-5 zile

Video Recorder

Tip inregistrator :
  • NVR
Numar canale video :
  • 16 canale
Rezolutie inregistrare DVR:
  • 4K (3840 × 2160)
Numar porturi HDD:
  • 2 SATA
Numar canale audio:
  • 1 canal RCA

Manual NVR 16 canale, Hikvision, DS-7616NI-K2 (Quick_Start_Guide_of_Network_Video_Recorder.pdf, 2,514 Kb) [Download]
