NVR 16 canale, 8 MP, Hikvision DS-7616NI-K1(B)

Hikvision, NVR, 16 canale
469 Lei
DS-7616NI-K1(B)
+
Suna-ma!

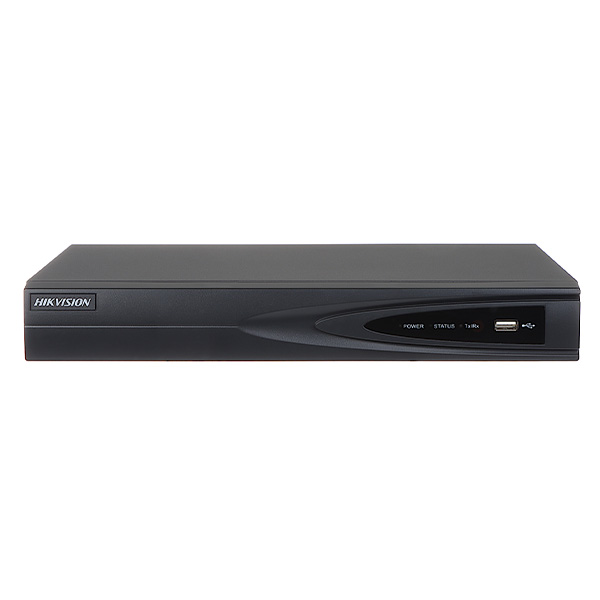

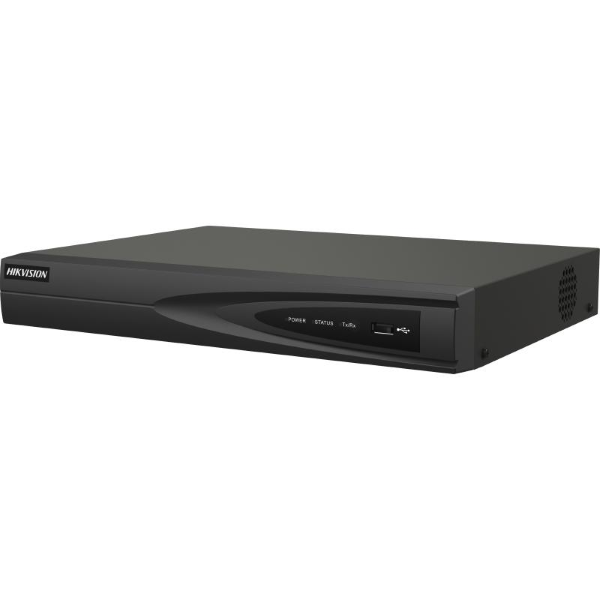

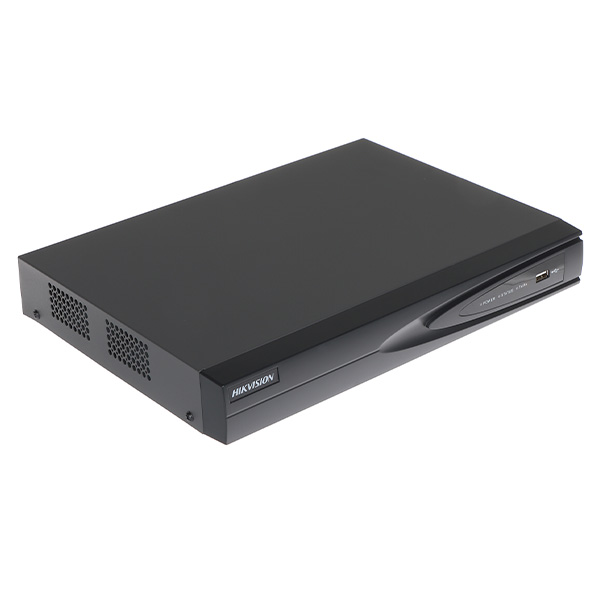

NVR 16 canale, 8 MP, Hikvision DS-7616NI-K1(B)

DS-7616NI-K1(B) este un NVR (Network Video Recorder) de la HikVision cu 16 canale video. Acesta inregistreaza cu o rezolutie de pana la 8 MP avand latimea de banda (intrare) de 160Mbps.

NVR-ul beneficiaza de o iesire HDMI si una VGA. Rezolutia maxima de redare este de 4K prin HDMI sau 1920 x 1080 pixeli (FullHD) prin VGA.

Capacitate HDD: 1xHDD max 6TB.

Specificatii tehnice NVR Hikvision DS-7616NI-K1(B)

Video/Audio Input
IP video input:   16-ch
Two-way audio input:   1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth:   160Mbps
Outgoing bandwidth:   80Mbps
Video/Audio Output
HDMI Output:   1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution:   8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:   1-ch, RCA (Linear, 1kΩ)
VGA Output:   1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Capability:   1-ch @ 8 MP / 4-ch @ 1080p
Live view / Playback:   8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Hard Disk
SATA:   1 SATA interface for 1 HDD
Capacity:   Up to 6TB capacity for each HDD
External Interface
Network Interface:   1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface:   2, USB2.0
General
Power Supply:   12 VDC
Consumption(without hard disk and POE):   ≤ 10 W
Working Temperature:   -10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity:   10 % ~ 90 %
Chassis:   1U chassis
Dimensions:   315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight(without HDD):   ≤ 1 kg (2.2 lb)
Disponibilitate:
3-5 zile

Video Recorder

Tip inregistrator :
  • NVR
Protocoale acceptate DVR:
  • IP
Numar canale video :
  • 16 canale
Rezolutie inregistrare DVR:
  • 8MP ( 3840 x 2160 )
Numar porturi HDD:
  • 1 SATA
Numar canale audio:
  • 1 canal RCA
