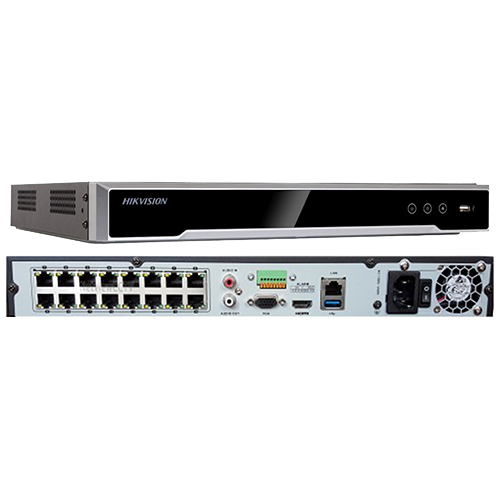

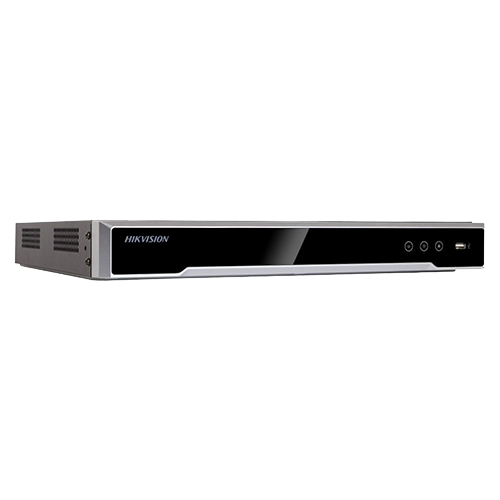

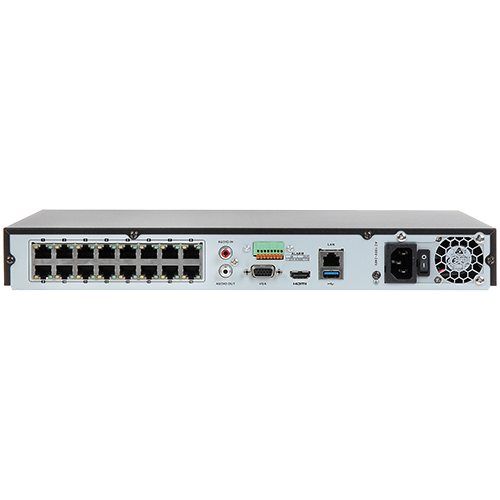

NVR 16 canale,12MP, 4K, 16 porturi PoE, Hikvision DS-7616NI-I2-16P

NVR 16 canale,12MP, 4K, 16 porturi PoE, Hikvision DS-7616NI-I2-16P

NVR cu 16 canale video marca Hikvision DS-7616NI-I2, inregistrare video de pana la 12 MP.

Rezolutii ale iesirilor independente: HDMI - pana la 4k@30/60 Hz si VGA pana la 1080p@60Hz.

PoE: 16 porturi 10 /100 Mbps.

Doua porturi SATA permit utilizatorului sa instaleze 2 x HDD max 8TB fiecare.

Specificatii tehnice NVR Hikvision DS-7616NI-I2-16P

Video And Audio

• IP Video Input16-ch Up to 12 MP resolution
• Video Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p /VGA/4CIF /DCIF/2CIF/CIF/QCIF
• Incoming/Outgoing Bandwidth160 Mbps 256 Mbps
• HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

• Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p /VGA/4CIF /DCIF/2CIF/CIF/QCIF
• Synchronous Playback16-ch
• Capability2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)

Network

• Remote Connections128
• Network ProtocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

POE Interface

• Interface16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
• Power≤ 200 W ≤ 180 W
• Supported StandardIEEE 802.3 af/at

Hard Disk

• SATA2 SATA interfaces
• CapacityUp to 8TB capacity for each HDD

External Interface

• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out4/1

General

• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption (Without HDD)≤15 W (without enabling PoE)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10 to 90 %
• Dimensions (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
• Weight (Without Hard Disk)≤ 3 kg (6.6 lb)
