Modul radio adresabil seria JA-100, Jablotron JA-110R
- Modul radio care permite conectarea dispozitivelor wireless
- Se pot instala maxim 3 module intr-un sistem. Frecventa 868.1 MHz.

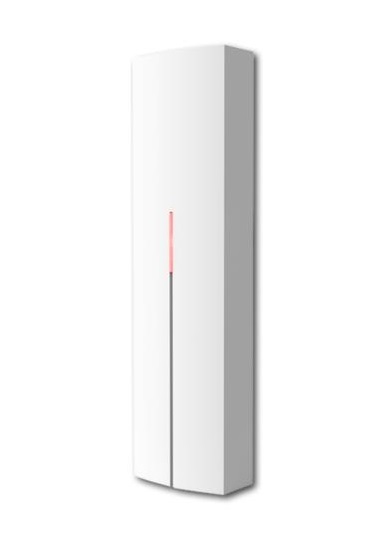

The JA-110R two-way radio module is used to connect wireless devices such as detectors, to the security system. For complete coverage of the secure area up to 3 JA-110R modules can be installed.
The module communicates with and is ppwered by the bus. The module can be optionally mounted into the control panel. It is addressable, and occupies an alarm system position.
Specifications
Power | 12 V bus (9 ... 15 V) |
---|---|
Current consumption in standby (quiescent) | 25 mA |
Current consumption for choice of cable | 25 mA |
Radio communication | 868.1 MHz |
Dimensions | 150 x 40 x 23 mm |
Classification | grade 2 according to EN 50131-1, EN 50131-3, EN 50131-5-3 |
Environment | EN 50131-1. general indoor |
Operating temperature range | -10 to +40 ° C |
Complies with | ETSI EN 300220, EN 50130-4, EN 55022, EN 60950-1 |
Can be operated to | ERC REC 70-03 |
